IP Testing Equipment with IPX3 to IPX6 Waterproof Testing Gear Featuring Stainless Steel Water Tank and Adjustable Spray Pressure

Brand Name:	HongCe
Model Number:	IPX56A
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	L/C,T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Power Supply:

AC380V/60Hz

Test Range:

IPX3 To IPX6

Test Time:

0-99min

Water Tank(L):

800L (customizable)

Packaging Details:

Plywood

Highlight:

IPX3 to IPX6 IP Testing Equipment

Stainless Steel Water Tank Waterproof Testing Gear

Adjustable Spray Pressure IP Test System

Product Description

IPX3 to IPX6 Spray Waterproof Testing Equipment

This spray waterproof testing equipment from HongCe evaluates enclosure water ingress protection for IPX3 to IPX6 ratings. It simulates rain, splashes, and high-pressure spray conditions to help manufacturers verify product compliance with international IP safety standards accurately, safely, and consistently.

Reference Standards

IEC 60529:

Clause 14.2.3: IPX3 – Water spray test
Clause 14.2.4: IPX4 – Splashing water test
Clause 14.2.5: IPX5 – Water jet test
Clause 14.2.6: IPX6 – Powerful water jet test

ISO 20653: Road vehicles degrees of protection (IP code)
EN 60529: European enclosure protection standard

Key Features

Comprehensive IPX3, IPX4, IPX5 and IPX6 waterproof testing in one integrated system
Adjustable spray pressure and flow rate for precise standard compliance
High-quality stainless steel water tank with corrosion-resistant construction
Stable nozzle layout ensures uniform and repeatable spray distribution
Intelligent control system for easy operation and parameter configuration

Technical Specifications

Parameter	Specification
Power supply for machine	AC380V, 60Hz
Power supply for test sample	≤ 440Vac 16A
Test range	IPX3 to IPX6
Test time	0-99min
Water tank	800L (customizable)
Water tank material	SUS304# stainless steel
IPX3, X4 Specifications
IPX3,4 Spray nozzle	IEC 60529 Figure 5 Brass head
Pressure Gauge	0 - 1.6 bar
IPX3,4 Spray Flow	10 L/min -15 L/min
Number of Holes	121
Diameter of Nozzle Holes	Φ0.5mm
Nozzle Material	Brass (H62)
Flapper Cover Angle	30°
IPX5, X6 Specifications
Aperture of jet nozzle	Ф6.3mm (IPX5); Ф12.5mm (IPX6)
Spray flow of jet nozzle	12.5L/min -18.75 L/min (IPX5); 100L/min -150 L/min (IPX6)
Rotary Table
Diameter	Φ600mm, Φ800mm and Φ1000mm available
Rotation Speed	1r/min
Tiltable angle	15°
Test angle of rotation	90°, continuous rotation

Applications

Electrical and electronic product waterproof testing
Automotive parts and connectors water ingress testing
Lighting fixtures (indoor & outdoor) IP protection verification
Household appliances waterproof performance evaluation
Outdoor communication equipment testing

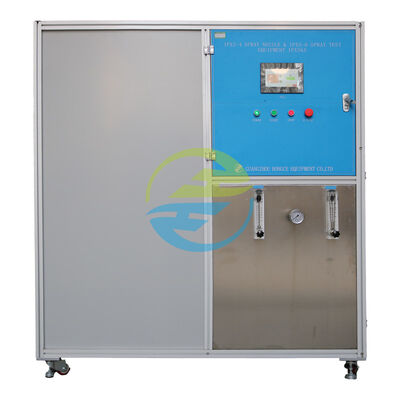

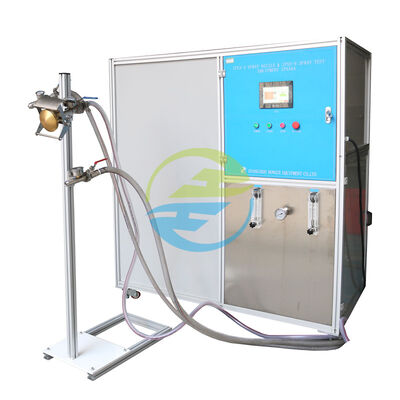

Product Image

Frequently Asked Questions

Q1: Can one system really cover IPX3 to IPX6?

Yes. This equipment integrates multiple spray and jet modes, adjustable through the control system.

Q2: Is customization available for test area size?

Absolutely. Test space and structure can be customized based on your product dimensions.

Q3: Is the equipment suitable for certification labs?

Yes. It is widely used by third-party testing labs and complies with IEC and ISO standards.

Q4: What kind of water quality is required?

Clean tap water is sufficient; the system includes a circulation and filtration design.

Q5: How difficult is daily maintenance?

Very simple. Modular design allows easy cleaning and nozzle inspection.
