Professional 0 ~ 6bar Pressure Water Tightness Tester with 0.25 Degree Gauge Accuracy and 0-99min Testing Time for Immersion Waterproof Testing

Name: Professional 0 ~ 6bar Pressure Water Tightness Tester with 0.25 Degree Gauge Accuracy and 0-99min Testing Time for Immersion Waterproof Testing
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HH0806
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HH0806
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C,T/T
Supply Ability:	5 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Pressure Adjustment Range:

0 ~ 6bar (can Be Customized)

Pressure System:

Stainless Steel Pump + Frequency Converter

Pressure Gauge Accuracy:

0.25 Degree, Range: 10bar

Testing Time:

0-99min

Maximum Limit Pressure:

6 Bar

Diameter:

0.8m

Height:

Pressure Protection:

Pressure Switch Protection

Packaging Details:

Plywood

Highlight:

0 ~ 6bar Pressure Water Tightness Tester

0.25 Degree Pressure Water Tightness Tester

0-99min Testing Time Immersion Waterproof Testing Equipment

Product Description

Professional IPX7/IPX8 Pressure Water Tightness Tester | Immersion Waterproof Testing Equipment for Electronics & Valves | IEC60529 Certified

HONG CE Pressure Water Tightness Testing Device (Model HH0806) is engineered to protect your products from water damage with unparalleled accuracy. By simulating real-world immersion and pressure conditions, this tester ensures your electronics, automotive components, and industrial equipment meet global waterproof standards. Trusted by manufacturers worldwide, it combines robust performance with intuitive operation—because every product you build deserves to last.

Application

This test checks if a product's case and seals maintain functionality during and after underwater conditions, meeting IPX8 testing requirements.

International Reference Standards

IEC 60529 - Degrees of Protection by Enclosures - IPX7/IPX8 - Defines test methods for temporary water immersion (IPX7) and continuous water immersion (IPX8)
IEC 60598-1 - Luminaire Safety Standard - Section 9.3 - Verifies the water resistance of luminaires under hydrostatic pressure
ISO 811 - Water Resistance of Textiles - Section 5.4 - Measures the permeability of materials under hydrostatic pressure

Sample Range

Covers products that undergo IPX8 waterproof testing.

Technical Parameters

Component	Specification

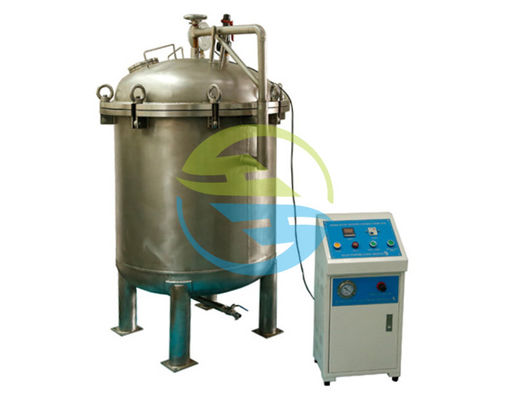

Pressure vessel	Stainless steel tank, diameter 0.8 meter, height 1 meter
Pressure adjustment range	0 ~ 6bar (can be customized)
Pressure system	Stainless steel pump + frequency converter
Pressure gauge accuracy	0.25 degree, range: 10bar
Testing time	0-99min
Maximum limit pressure	6 bar
Pressure protection	Pressure switch protection
Connection	3/4 high pressure steel wire hose connection to water supply equipment

Product Applications

Consumer Electronics: Test smartphones, wearables, and connectors for IPX7/8 compliance
Automotive Industry: Validate sensors, battery casings, and lighting systems against water ingress
Aerospace & Defense: Ensure avionics and communication devices withstand deep-water pressure
Valves and Pumps: Inspect sealing integrity in industrial fluid systems
Medical Devices: Verify waterproofing of implantable tools or diagnostic equipment

Product Images

About Guangzhou Hongce Equipment Co., Ltd

Established in 2003 and located in Guangdong, China, Guangzhou Hongce Equipment Co., Ltd is a leader in inspection equipment manufacturing. We combine advanced technology with strict quality control to produce testing equipment that meets international standards. Our product range includes electric wire inspection equipment, mechanical robustness testing equipment, fire hazard testing equipment, and custom non-standard testing solutions. Our products are trusted by manufacturers worldwide and we maintain supply relationships with numerous well-known companies.
