High-Precision Dustproof Test Chamber with Programmable Control System for IP5X & IP6X Protection

Name: High-Precision Dustproof Test Chamber with Programmable Control System for IP5X & IP6X Protection
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HH0810
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HH0810
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Rank:

IP5X IP6X

Product Name:

IP5X IP6X Dust Chamber

Dust Temperature Range:

RT+10℃～60℃

Test Sand (or Talc) Dosage:

2kg/m³

Test Dust:

Dry Talc

Sand And Dust Concentration:

2～4kg/m3

Air Flow Speed:

≤2m/s

Power:

380V/60Hz

Packaging Details:

plywood

Highlight:

High-Precision Dust Test Chamber

Dustproof Ingress Protection Test Equipment

Programmable Control System Sand and Dust Test Chamber

Product Description

High-Precision Dustproof Testing Chamber for IP5X & IP6X Protection

Ingress Protection Test Equipment for Electrical and Electronic Products

In today's global market, environmental resistance is not optional — it's a promise of quality. The HongCe Sand and Dust Test Chamber (Model HH0810) brings laboratory precision to the real-world challenges of sand and dust exposure. Manufactured by HONG CE, a professional source manufacturer of Ingress Protection Test Equipment, this chamber replicates harsh desert conditions to evaluate the protection performance of enclosures against dust intrusion.

Designed for automotive, electronics, and appliance industries, the HH0810 ensures that every component, switch, and casing remains reliable under extreme environmental stress. With intelligent control systems, precise airflow regulation, and durable stainless-steel construction, this chamber turns rigorous testing into a dependable standard for quality assurance.

Product Features

Comprehensive Dust Simulation — Accurately reproduces IP5X and IP6X test environments
Programmable Control System — Touch-screen interface for setting test duration, airflow rate, and vacuum pressure
Precision Air Circulation — Ensures uniform dust distribution throughout the chamber
Built-in Vacuum System — Tests the sealing performance of products under negative pressure

Technical Parameters

Model	HH0810
Working size (mm)	W1000 × D1000 × H1000
Outer size (mm)	L1850 × W1350 × H1800
Temperature range	Room temperature
Test dust	Dry talc which can go through the sieve of 75μm and the square sieve of wire diameter 50μm
Test sand (or talc) dosage	2kg/m³
Vacuum pump	Ultimate vacuum: 2Pa
Air pressure meter	0~-1.0Mpa
Sample rack height adjustment range	0~750MM
Timing range	0~99 hours 59 min
Timing accuracy	±1min
Load cycle control	0~99 hours 59 min
Ash blowing cycle control	1s~9999 min
Sand and dust concentration	2～4kg/m3
Air flow speed	≤2m/s

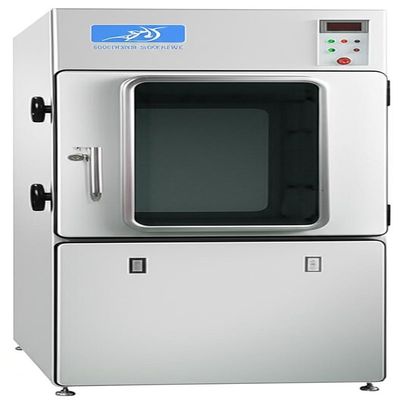

Product Images
