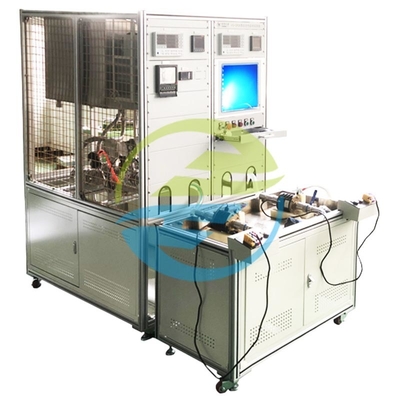

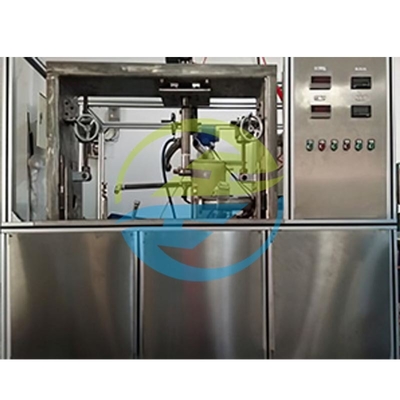

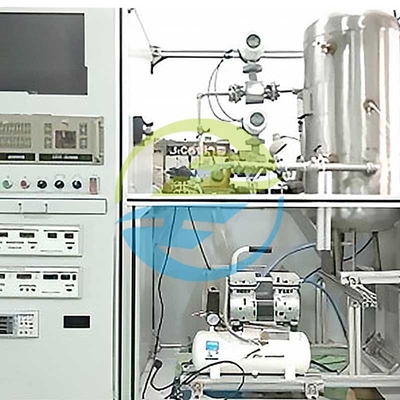

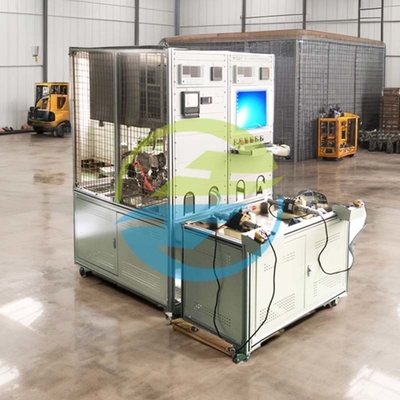

Pump Testing machine Automated Clamping 80m³/h Capacity EV Water Ring Vacuum Pump Test Bench

Brand Name:	HongCe
Model Number:	HETE-WPT-9
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Calibration certificate(cost additional)

Packaging Details:

Plywood

Highlight:

Water Ring Vacuum Pump Test Bench

Vacuum Pump Test Bench Automated Clamping

Pump Testing Machine EV

Product Description

Electric Vehicle Water Ring Vacuum Pump Comprehensive Performance Test Bench Automated Clamping 80m³/h Capacity

Short Description

The WPT-9 Pump Testing Equipment is an advanced automated test bench designed for electric vehicle water ring vacuum pumps. It integrates robotic clamping, full-performance simulation, and multi-condition testing, delivering high-precision, efficient, and traceable testing for OEMs and Tier 1 suppliers.

Product Introduction

WPT-9 sets a new standard in the field of electric vehicle vacuum pump testing. Equipped with a six-axis robotic clamping system and full-spectrum test environment simulation, it supports precise, automated, and repeatable testing for a wide range of pump models and configurations. Designed to meet international benchmarks, this system enables reliable performance validation under dynamic automotive-grade conditions.

Product Features

Automated Clamping System
Fast model switching (within 5 minutes) with ±0.1mm positioning accuracy, compatible with G1/4" to G3/8" pump ports.
Full Environmental Simulation
Simulates extreme temperature (-40℃~125℃), humidity (10%-95% RH), and pressure conditions, supporting AEC-Q100 and ISO standards.
High-Precision Measurement
Vacuum, flow rate, power, vibration, and noise are monitored in real-time. Vacuum accuracy reaches ±0.1kPa.
Data Management & Traceability
Real-time CAN/LIN data acquisition, 256GB SSD storage, PDF report generation for ISO 9001 compliance.
Advanced Safety Protocols
Dual-layer overpressure protection, vibration-based early failure diagnosis, and compliance with IEC 60664-1 and EVS-GTR standards.
Modular Design
Expandable with refrigerant loop (-50℃), high-pressure gas (up to 10 bar), and hydrogen embrittlement modules.

International Reference Standards

Standard	Section	Description
ISO 28580:2013	5.3	Vacuum-flow curve testing for EV pumps
GB/T 32864-2016	5.4, 5.7	Electric pump efficiency & low-temp start
AEC-Q100 Rev-E	5, 9	Temperature cycle & vibration tests
IEC 60068-2-1	Nb	-40℃ endurance (72h no failure)
EVS-GTR Phase 2	5.3	Electrical insulation (≥10MΩ), 1500Vdc withstand
CISPR 25:2021	Class 3	Radiated EMI ≤40dBμV/m (30~1000MHz)

Application Scope

Primary Test Objects:

EV water ring vacuum pumps (0.1–3kW, 5–80m³/h)
Hybrid vacuum booster pumps (oil/water-cooled)
Hydrogen fuel cell vacuum systems (high-pressure, anti-hydrogen embrittlement)

Core Test Categories

Category	Test Items
Performance	Vacuum vs. Flow, Power vs. Efficiency, Recovery Time
Environment	Cold Start (-40℃), Heat Endurance (125℃), Salt Spray (48h)
Reliability	Durability (500h), Thermal Shock (1000 cycles)
Safety & EMC	Insulation, Ground Resistance, Radiated EMI
Automation	Clamping Accuracy, Seal Pressure Adaptability

Technical Specifications

Parameter	Details
Model	WPT-9
Test Vacuum Range	1–100kPa (±0.1kPa Accuracy)
Flow Rate Range	0–80m³/h (±0.5%FS)
Temperature Range	-40℃ to +125℃ (±1℃ Accuracy)
Humidity Range	10%–95%RH (Non-condensing, Optional)
Power Input for DUT	12V / 24V / 48V DC
Drive Power Range	0–3kW (0.1W Resolution, ±0.5% Accuracy)
Vibration Detection	0–200m/s², 3-Axis (±5%)
Noise Range	30–100dB (±1dB @ 1m)
Clamping System	Robotic Arm + Pneumatic Clamps (±0.1mm)
Control Interface	12” Industrial Touchscreen (Multi-language)
Data Storage	256GB SSD, 200,000+ Logs, CAN/LIN Output
Protection Rating	IP67 (Test Chamber), IP54 (Controller)
Power Supply	AC220V/380V ±10%, 50/60Hz, 80kVA
Dimensions	3500×2500×2300mm (L×W×H)
Weight	3000kg
Communication	CAN / LIN / RS485 / Modbus / OPC UA

After-Sales & Service

We provide comprehensive technical support, remote diagnostics, on-site training, and software updates. Our global service network ensures minimized downtime and optimal system performance.
