Electromagnetic Pump Testing System for Flow, Pressure & Performance Evaluation | Automated Pump Testing Equipment with Data Logging & Safety Protection

Brand Name:	HongCe
Model Number:	HJ-WPVT-001
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	1 set per 45 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Curve Display:

Flow-Pressure / Efficiency Curve

Temperature Control:

Ambient To 60°C

Safety Protection:

Over-pressure / Over-current / Emergency Stop

Test Cycle Mode:

Manual / Automatic

Test Station:

Single Or Multi-station (optional)

System Material:

Stainless Steel + Industrial Frame

Packaging Details:

Plywood

Highlight:

electromagnetic pump testing system

automated pump testing equipment with data logging

pump testing system for flow pressure

Product Description

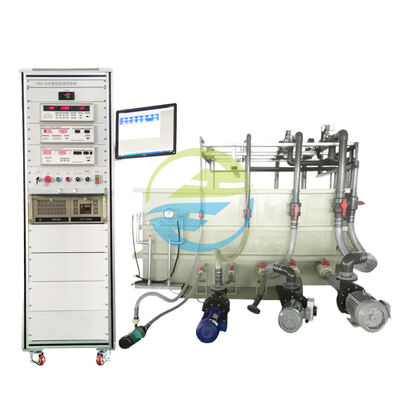

Electromagnetic Pump Testing System

Comprehensive automated testing equipment for evaluating electromagnetic pump performance, flow rates, pressure capabilities, and operational efficiency with integrated data logging and safety protection systems.

Ensure your electromagnetic pumps perform reliably under real-world conditions with precision testing that validates flow characteristics, pressure handling, efficiency metrics, power consumption, and operational stability.

Key Features

High-precision sensors for flow, pressure, and electrical parameters
Stable test loop with electromagnetic pump load simulation
Automated test control and data acquisition
Real-time curve display and historical data storage
Modular design for easy maintenance and upgrades
Safety protection: over-pressure, over-current, emergency stop

Technical Specifications

Test System Type	Electromagnetic Pump Testing System
Test Medium	Water (customizable)
Flow Range	0.1 – 30 L/min (customizable)
Pressure Range	0 – 1.6 MPa
Pressure Accuracy	±0.5% F.S
Flow Accuracy	±1% F.S
Power Supply	AC 220V / 50Hz (customizable)
Control Mode	PLC + Touch Screen
Data Acquisition	Real-time data logging

Compatible Test Objects

Electromagnetic pumps
Miniature electric pumps
Circulating pumps
Liquid transfer pumps
Cooling system pumps
Industrial micro pumps

International Compliance Standards

ISO 9906 – Rotodynamic pumps – Hydraulic performance acceptance tests
IEC 60034-1 – Rotating electrical machines – Rating and performance
IEC 60204-1 – Safety of machinery – Electrical equipment of machines
GB/T 3216 – Acceptance tests for pumps – Class 1, 2 and 3
GB/T 12785 – Test methods for electromagnetic pumps
GB/T 17626 – Electromagnetic compatibility (EMC) test reference

Frequently Asked Questions

Can this system test different pump models?

Yes. The system supports parameter adjustment and fixture customization for different pump sizes and performance ranges.

Can you customize the flow and pressure range?

Yes. HongCe provides tailored configurations based on your specific testing requirements.

Is test data exportable?

Yes. Data can be exported via USB or network connectivity for comprehensive reporting and traceability.

Can it be integrated into a production line?

Yes. The system supports End-of-Line testing integration and MES data interface capabilities.

Do you provide on-site training?

Yes. Both remote and on-site training services are available to ensure optimal system operation.
