Automatically Clam-shell Helium Leak Testing Equipment for Air-Conditioner Pipelines Accuracy 1.0E-5mbar.l/s

Brand Name:	HongCe
Model Number:	L-X-2×6
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Cycle Time:

1min./pcs

Leak Rate:

1.0E-3mbar.l/s - 1.0E-5mbar.l/s

Test Pressre:

2-42bar

Vacuum Pump:

Leybold

Vacuum Sensor:

Inficon

Packaging Details:

Plywood

Highlight:

helium leak detection

helium leak test equipment

Product Description

Automatically Clam-shell Helium Leak Testing Equipment for Air-Conditioner Pipelines

It is requred to be leak free for the air-conditioner pipelines, fuel oil pipelines, brake oil pipelines and engine pipelines. As there might have welding defects, it is necessary to do leak test before vehicle assembly. The normal solution is auto clam-shell helium leak test system, the connecting port would be leak tested quickly and precisely. Products are tested under atmosphere, not required for evacuatio. The machine is relatively simple structure and lower cost.

Test Concept

Evacuate the product and charge helium into the product.
Evaucate the clam shell.
Test the helium signal from the clam shell by the leak detector for fine leak judge.
Recover helium from the product.

Technical specification:

Cycle time: 1min./pcs.
Leak rate: 1.0E-3mbar.l/s - 1.0E-5mbar.l/s
Test pressre: 2-42bar

Main parts of system

Vacuum pump: Leybold
Vacuum sensor: Inficon
Helium leak detector: Inficon
Presure sensor: GE
Solenoid valve: Burkert
PLC: Omron
HMI: Omron

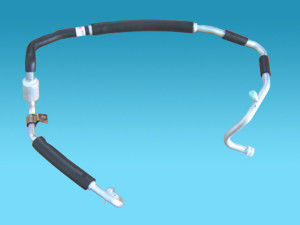

Automatically Clam-shell Helium Leak Testing Equipment for Air-Conditioner Pipelines Accuracy 1.0E-5mbar.l/s 1

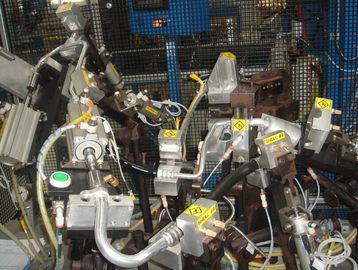

Automatically Clam-shell Helium Leak Testing Equipment for Air-Conditioner Pipelines Accuracy 1.0E-5mbar.l/s 2
