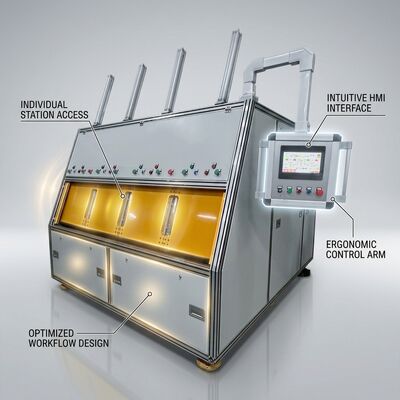

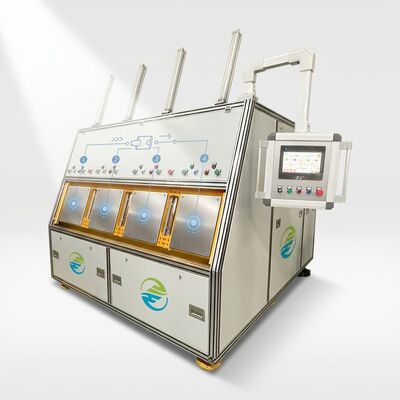

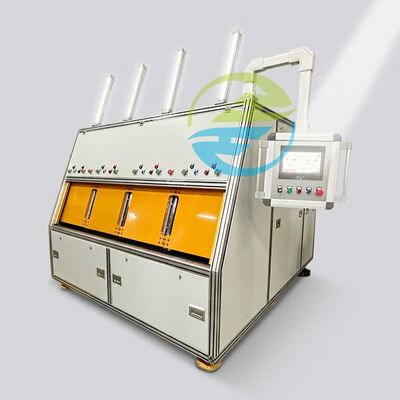

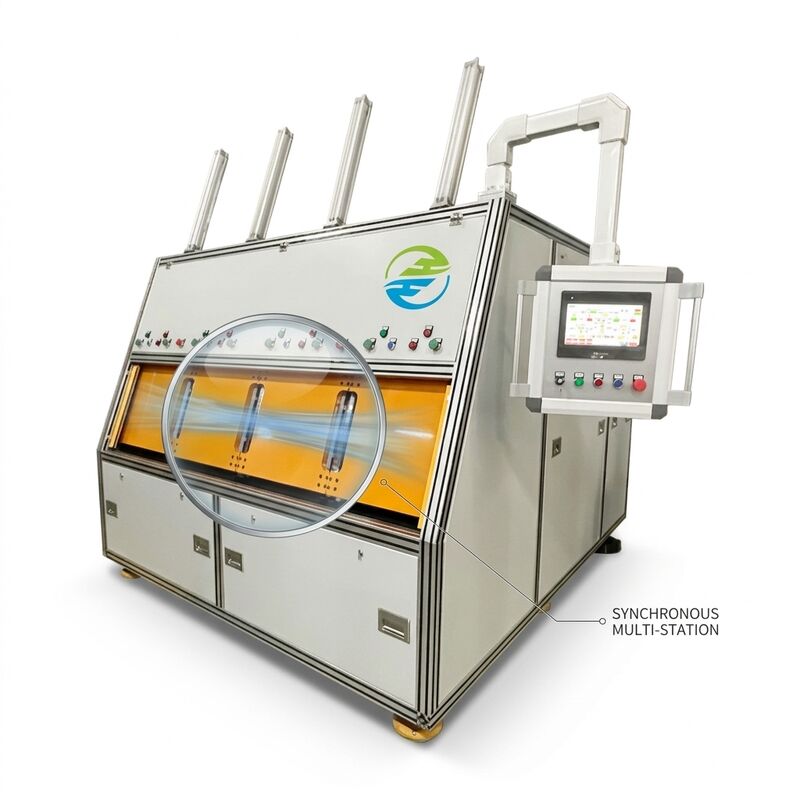

Modular Helium Leak Testing Equipment Designed for Quick Maintenance Access

Name: Modular Helium Leak Testing Equipment Designed for Quick Maintenance Access
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HC-HLT-M2
Price: 5000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HC-HLT-M2
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C,T/T
Supply Ability:	1 set per 3 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Control System:

PLC With 7-inch Touch

Module Replacement Time:

Under 15 Minutes

Test Cycle:

10 S/pc

Maintenance Access:

Front And Side Tool-free Doors

Cabinet:

Aluminum Profile Frame With Quick-release Front Panels

Structure:

Independent Modular Functional Units

Detection Method:

Helium Mass Spectrometry, Vacuum Mode

Packaging Details:

Plywood

Highlight:

Modular Maintenance Structure

Fast Module Replacement

Tool-Free Service Access

Product Description

Modular Helium Leak Testing Equipment Designed for Quick Maintenance Access

Modular Helium Leak Testing Equipment for Easier Maintenance

Downtime is the cost nobody quotes on a purchase order. A leak test station that is difficult to open, that hides its vacuum pump behind fixed panels, or that has to be partially dismantled for a routine filter change will spend more hours out of service than it should. The HongCe HC-HLT-M2 answers that problem with structure rather than with promises.

Built from Replaceable Modules

The machine is assembled from independent functional units: the detection module, the vacuum module, the fixture module and the control module. Each unit has its own connections and can be removed and replaced on its own, so a fault in one area does not take the whole station out of production.

Access Without Dismantling

Front and side doors open without tools, exposing filters, seals, valves and the vacuum pump for inspection. Routine items are reachable from the front of the cabinet, which means an operator can complete a filter change or a seal check standing in one place.

Technical Specifications

Item	Specification
Structure	Independent modular functional units
Module replacement time	Under 15 minutes
Cabinet	Aluminum profile frame with quick-release front panels
Detection method	Helium mass spectrometry, vacuum mode
Test cycle	10 s/pc
Control system	PLC with 7-inch touch

Typical Applications

Suitable for compressor, valve and heat-exchanger production, and especially for plants where planned maintenance windows are short and every minute of downtime is measured.

Engineering and Service Support

HongCe supplies a modular spare parts kit, a documented maintenance schedule and illustrated service instructions with each system. Our engineers can train your maintenance team on module replacement, and remote diagnostics help identify a faulty module before a technician is dispatched.

Frequently Asked Questions

Can a module be replaced by our own technicians?

Yes. Modules are designed for straightforward exchange, and training is included.

Does the machine need to be recalibrated after a module change?

A short verification is recommended, and the procedure is documented in the service manual.

Request a Configuration

Tell us about your maintenance constraints and production rhythm, and we will propose a modular layout that keeps service time short.
