Figure 4 High-precision Contact Current Tester IEC 60601-1 2020 Certified Special Equipment Leakage Current Detection Solution

Brand Name:	HongCe
Model Number:	CT-4
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate(cost additional)

Product Name:

Touch Current Measuring Circuit

Warranty:

1 Year

Standard:

IEC60990

RS:

1500Ω

RB:

500Ω

CS:

0.22μF

R1:

10000Ω

C1:

0.022μF

Packaging Details:

Aluminum Box

Highlight:

Figure 4 Contact Current Tester

High-precision contact current tester

Accurate contact current tester

Product Description

Figure 4 High-precision contact current tester IEC 60601-1:2020 certified Special equipment leakage current detection solution

Product introduction:

Figure 4 The contact current tester is an intelligent detection tool designed for medical equipment, household appliances and industrial electrical equipment. It integrates IEC 60601-1:2020 and IEC 60990:2016 international standards, with ±0.5% ultra-high accuracy and humanized interactive interface as core advantages, helping enterprises to efficiently complete safety and compliance testing and protect user life safety.

Parameter Details:

Resistance RS: 1500Ω, crucial for current regulation and measurement precision within the network.
Resistance RB: 500Ω, playing a role in shaping the electrical characteristics and current pathways.
Capacitance CS: 0.22μF, influencing the network’s capacitive reactance and current behavior.
Resistance R1: 10000Ω, integral to voltage division and current control.
Capacitance C1: 0.022μF, impacting the network’s frequency response and filtering capabilities.

Product use:
Medical equipment: leakage current detection of surgical instruments, monitors, dialysis machines, etc.

Household appliances: insulation performance verification of refrigerators, washing machines, chargers, etc.

Industrial equipment: PLC controllers, inverters, power modules safety and compliance testing.

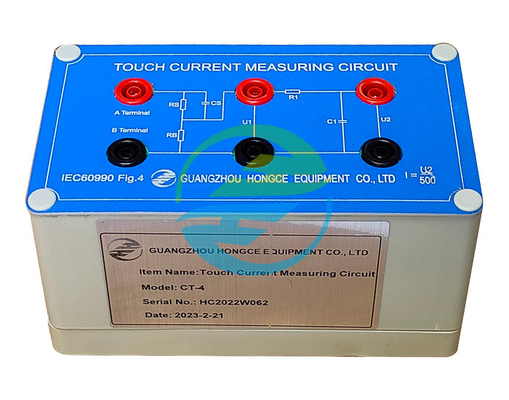

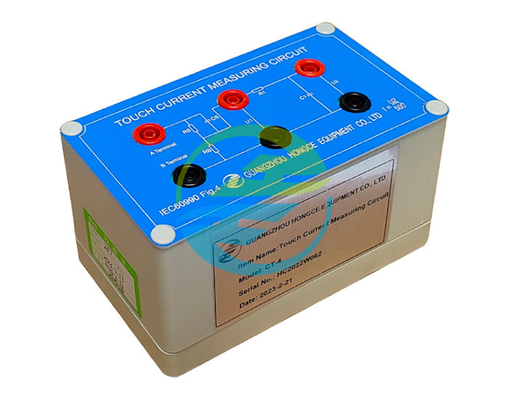

Figure 4 High-precision Contact Current Tester IEC 60601-1 2020 Certified Special Equipment Leakage Current Detection Solution 1

Summary

The IEC60990 Figure 4 Touch Current Measuring Network is a vital tool in electrical testing. It precisely complies with relevant IEC standards for touch current and protective conductor current measurement. Its design, featuring an independent power switch and easy operation, addresses the power supply drawbacks of predecessors, enabling tests on high-power electrical products. The carefully set parameters of RS, RB, CS, R1, and C1 each contribute distinctively to regulating electrical properties like current, voltage, and frequency response. For testing, the necessary equipment combination of an oscilloscope, a proper voltage probe, and an adjustable power supply ensures comprehensive and accurate measurement capabilities across various testing scenarios.
