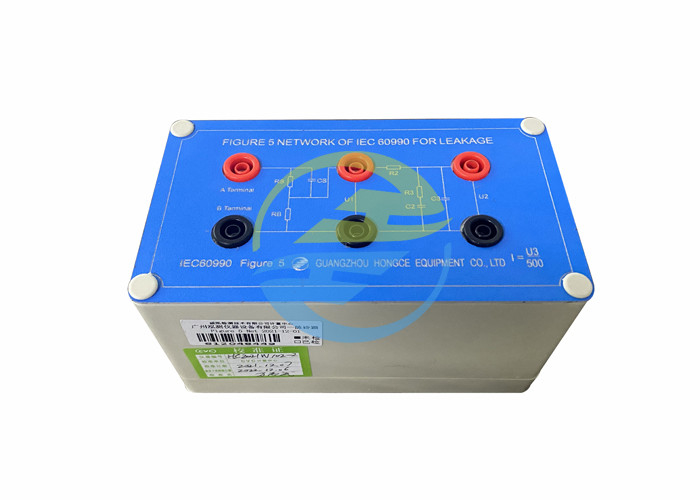

IEC60990 Figure 5 Facile Touch Current Measurement Network

Brand Name:	HongCe
Model Number:	CT-5
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate(cost additional)

Product Name:

Touch Current Measuring Circuit

Warranty:

1 Year

Standard:

IEC60990

RS:

1500Ω

C2:

0.0062μF

C3:

0.0091μF

R2:

10000Ω

R3:

20000Ω

Packaging Details:

Carton Box

Highlight:

Facile Touch Current Measurement Network

IEC60990 Facile Touch Current Measurement Network

Product Description

IEC60990 Figure 5 Facile Touch Current Measurement Network

Applicability:

National entry-exit inspection and quarantine systems for electrical product inspection.
State quality and technical supervision electrical product quality inspection departments.
Overseas and domestic electrical product certification institutions.
Foreign and domestic professional electrical appliance manufacturers’ inspection and quality control departments.

Materials and Technology:

High-precision, high-power, high-voltage, and low-temperature-drift resistors.
Capacitors with stable capacitance, high voltage resistance, non-inductive, current shock resistance, microwave absorption, and low leakage current.
Module packaging with high pressure resistance, good high-frequency characteristics, and low dielectric loss, enhancing short-term impact current resistance.
Surface connection method for component measurement with clear identification.

Product Features:

Complies with IEC60990 touch current and protective conductor current measurement requirements.
User-friendly and easy to operate with a separate power supply switch to handle powerful products.

Parameter:

Name	Value
R_S	1500Ω
R_B	500Ω
C_S	0.22μF
R₂	10000Ω
R₃	20000Ω
C₂	0.0062μF
C₃	0.0091μF

Preparation:

Oscilloscope x1.
One or ten times voltage probe x1.
Adjustable power supply x1.

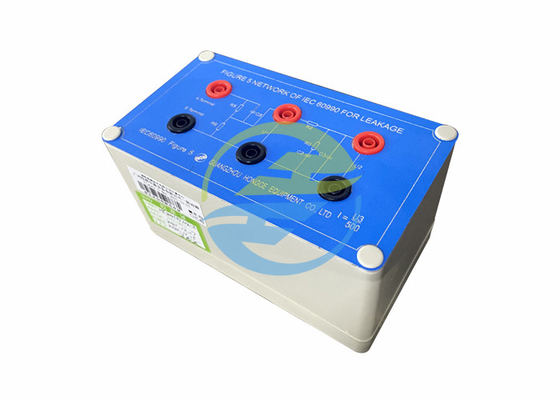

IEC60990 Figure 5 Facile Touch Current Measurement Network 0

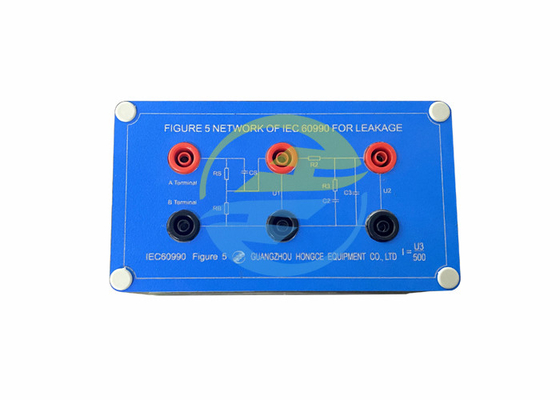

IEC60990 Figure 5 Facile Touch Current Measurement Network 1

Overall Summary:

The IEC60990 Figure 5 Facile Touch Current Measuring Network. Its wide applicability spans across multiple sectors involving electrical product inspection and quality control both domestically and internationally. The meticulous selection of materials and advanced technology, such as high-performance resistors, capacitors, and specialized module packaging, guarantees reliable and accurate measurement. The product's design aligns with IEC standards, offering ease of use and enhanced power handling. With detailed parameters provided and specific preparation instructions, it equips users with a comprehensive guide for conducting touch current measurements effectively.
