IEC Test Equipment
Created with Pixso.

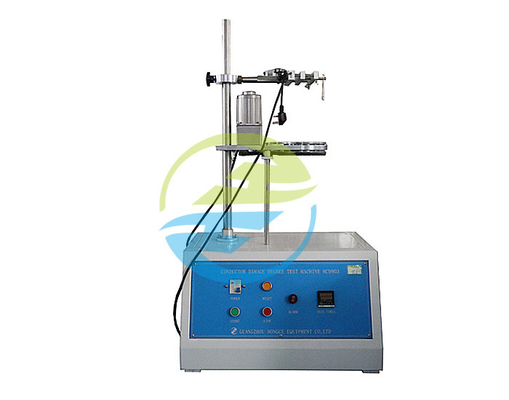

Test Rate10±2 RPM Equipment Guide Rail Structure Single Workstation Conductor Damage Degree Test Device

Test Rate10±2 RPM Equipment Guide Rail Structure Single Workstation Conductor Damage Degree Test Device

Brand Name: HongCe
Model Number: HC9903
MOQ: 1 set
Price: Negotiatable
Payment Terms: L/C,T/T
Supply Ability: 10 set /month
Detail Information
Place of Origin:
China
Certification:
Third part calibration certificate(cost additional)
Working Station:
Single Working Station
Standard:
IEC60884
Test Sample:
Terminals, Connectors
Test Rate:
10±2 RPM
Test Height:
260, 280, 300, 320mm
Diameter Of Ferrule Hole:
6.5, 9.5, 13, 14.5mm
Packaging Details:
plywood
Highlight:

Conductor Damage Degree Test Device

,

IEC Test Equipment for Terminals

Product Description

IEC60884 Test Equipment Guide Rail Structure Single Workstation Conductor Damage Degree Test Device



Standard with IEC Test Equipment:

IEC60884-1 2013 clause 12.2.2, 12.3.10 and figure 11, IEC60669-1, UL486A-B



Application with IEC Test Equipment:

This device is used to check whether terminals with screw and screwless terminals can withstand mechanical forces during normal operation. It is mainly used to judge whether the design and structure of screw clamping terminals meet the requirements of clamping conductors without causing excessive damage.



Test sample with IEC Test Equipment:

Terminals, connectors



Feature with IEC Test Equipment:

Adopt guide rail structure. The number of tests can be preset. During testing, the tester will automatically stop and output an audible alarm signal after the preset number of tests is completed.



Parameters with IEC Test Equipment:



Model HC9903 HC9903A HC9903B(2 stations)
Test rate 10±2 RPM 10±2 RPM 9±1 RPM
Diameter of gyration 75mm 75mm 76mm
Test times 0~9999 0~9999 0~9999
Weights 0.3, 0.4, 0.7, 0.9, 1.4, 2kg 0.3, 0.4, 0.7, 0.9, 1.4, 2, 2.9, 4.5, 5.9, 6.8, 8.6, 9.5, 10.4, 14, 15, 16.8, 20, 22.7kg 0.7, 0.9, 1.4, 2.3, 3.6, 4.5, 6.8, 11.4, 13.6, 18.2, 22.7, 27.2, 36.3, 45.4kg
Test height 260, 280, 300, 320mm 250~500mm 250~500mm
Diameter of ferrule hole 6.5, 9.5, 13, 14.5mm 6.5~28.6mm, 12 pc 6.5~28.6mm, 12 pc
Standards IEC60884-1, IEC60669-1 IEC60998-2-2 UL486A-B, UL498

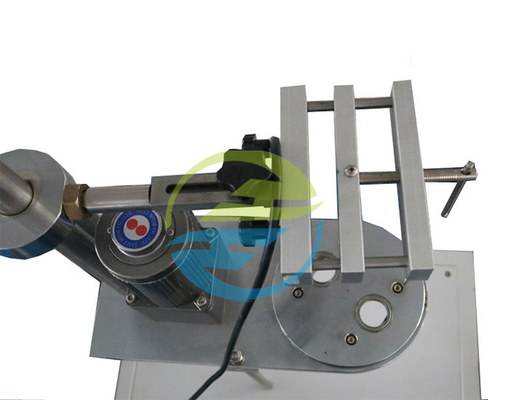

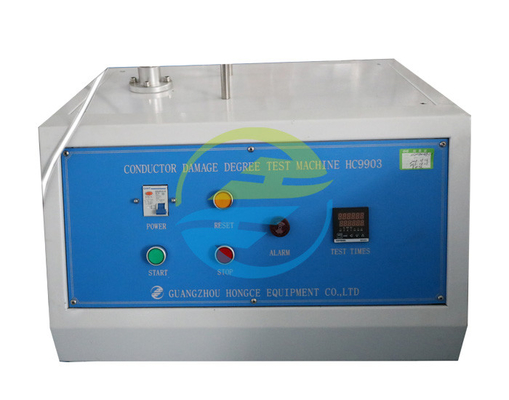

Test Rate10±2 RPM Equipment Guide Rail Structure Single Workstation Conductor Damage Degree Test Device 0



Test Rate10±2 RPM Equipment Guide Rail Structure Single Workstation Conductor Damage Degree Test Device 1
