| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HJ124 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 set per month |
| Size: | ≤1000 (L) × 800 (W) × 1200 (H) Mm | Power: | 5KW |
|---|---|---|---|
| Energy Consumption: | AC 220V, 50 Hz, 3-phase 5-wire System, Maximum Power 5KW | Package Filling Pressure: | 2~2.5 Kpa |
| Package Evacuation Pressure: | -2~-3 Kpa | Alarm Leak Rate: | 1.44E-4 Mbar.l/s |
| Highlight: | Battery Pack Helium Leak Detector,Helium Leak Detector for Battery Testing |
||
1.44E-4 Mbar.L/S Battery Pack Suction Gun Helium Leak Detector For Battery Testing Equipment
Product Introduction with Battery Testing Equipment:
This equipment is primarily used for the airtightness testing of PACK battery packs, offering comprehensive functions and convenient operation. It is capable of performing various functions such as vacuuming, helium filling, pressure and concentration detection, ensuring accurate and reliable testing. Additionally, the equipment is equipped with a suction gun for helium leak detection, enabling quick and accurate identification of potential leak issues in the battery packs.
Product Principle with Battery Testing Equipment:
The equipment fills helium inside the workpiece under test to create a pressure differential between the interior and exterior. By scanning the exterior surface with a specialized suction gun connected to a high-precision leak detector, leaks are promptly and accurately detected and located. Upon detection of a leak, the system issues an alarm, ensuring efficient and accurate airtightness testing of the battery pack, thereby enhancing its quality, safety, and supporting quality control.
Product Features with Battery Testing Equipment:
Firstly, the system is equipped with automatic helium concentration monitoring function, which can monitor and display the concentration of helium in real-time, ensuring the accuracy and stability of the testing environment. At the same time, when the helium concentration exceeds the preset range, the system will immediately issue a concentration alarm, reminding operators to take measures promptly to ensure the safety of the test. Furthermore, our company also provides integrated commissioning technical services, which can easily connect the recovery system with the customer's existing helium leak detection equipment, achieving seamless integration and enhancing testing efficiency.
Product Parameters with Battery Testing Equipment:
| Size | ≤1000 (L) × 800 (W) × 1200 (H) mm |
| Power | 5KW |
| Energy Consumption | AC 220V, 50 Hz, 3-phase 5-wire system, maximum power 5KW |
| Package Filling Pressure | 2~2.5 kpa |
| Package Evacuation Pressure | -2~-3 kpa |
| Alarm Leak Rate | 1.44E-4 mbar.l/s |
| Test Mode | Suction Gun Mode |
| Concentration Monitoring | Equipped with an automatic online real-time helium concentration monitor, capable of automatically controlling helium filling, accuracy ±2% |
| Cycle Time | ≤2 minutes (excluding manual scanning time with suction gun) |
| Connectors | 2 connectors (1 for hard package, 1 for soft package) |

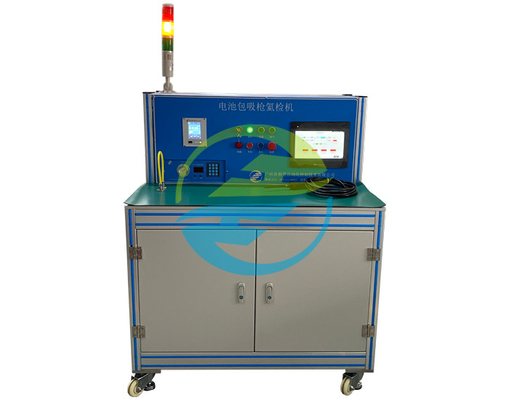

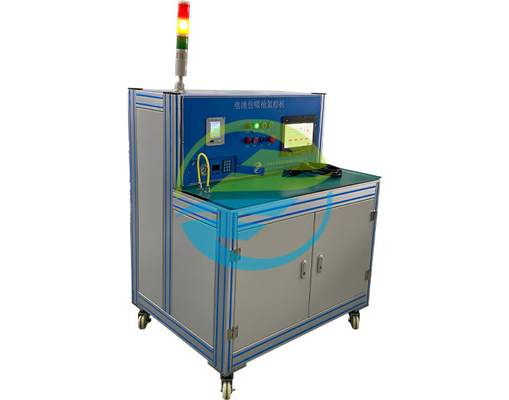

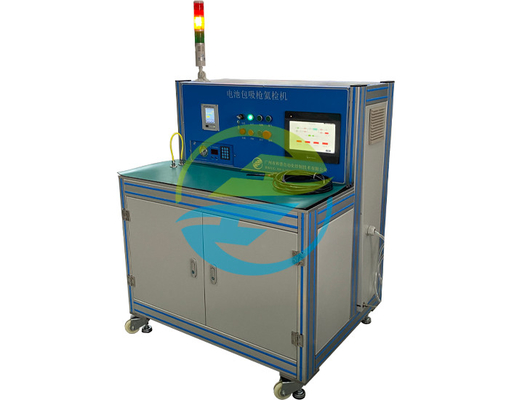

Product Image with Battery Testing Equipment:
Our advantage service:
We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.
Technical support:
All our workers are experienced and skilled.
After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
About Us:
Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
