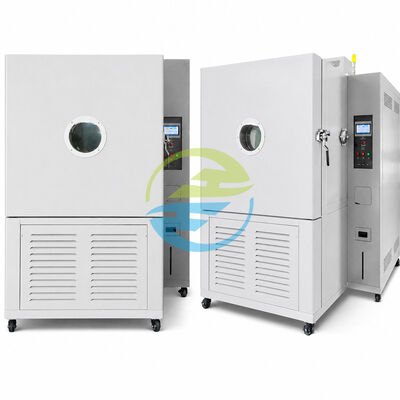

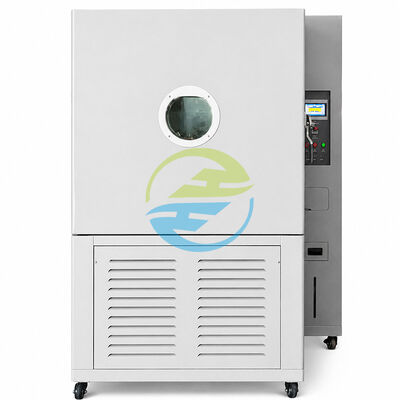

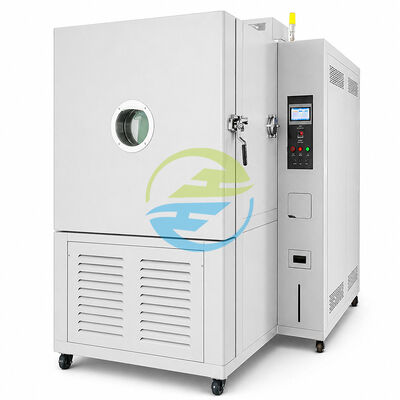

Battery High Altitude Low Pressure Test Chamber for UN38.3 Lithium Battery Safety Testing

Brand Name:	HongCe
Model Number:	HC-BTEM003
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C,T/T
Supply Ability:	10 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Safety Protection:

Over-pressure Protection Valve

Alarm System:

Automatic Alarm After Test/end Or Error

Control Method:

Manual / Digital Control

Power Supply:

AC380V, 50–60Hz, 5A

Test Condition:

≤11.6kPa For 6 Hours Typical

Weight:

100–120 Kg (depending On Configuration)

Packaging Details:

Plywood

Product Description

Battery High Altitude Low Pressure Test Chamber for UN38.3 Lithium Battery Safety Testing

A precision-engineered Battery Testing Equipment designed to simulate extreme high-altitude low-pressure environments (≤11.6kPa), ensuring lithium batteries meet global transport and safety standards such as UN38.3, IEC62133, and UL1642.

Product Overview

In global battery logistics and application scenarios, altitude simulation is one of the most critical safety validation steps. Batteries transported by air or used in high-altitude regions must remain stable under reduced atmospheric pressure.

The Battery High Altitude Low Pressure Test Chamber developed by HongCe replicates these real-world conditions with precision vacuum control, allowing manufacturers to identify risks such as leakage, rupture, or fire before market release.

This system automatically reaches and maintains a low-pressure environment (typically 11.6kPa) and monitors the entire test cycle—ensuring compliance, safety, and reliability across industries.

As a source factory, HongCe provides not only equipment—but a complete reliability solution backed by engineering expertise and responsive global service.

Features

Accurate simulation of high-altitude (low-pressure) environments
Stable vacuum control system with ≤5% pressure fluctuation
Automatic test cycle control and termination
Real-time pressure monitoring throughout testing
High-strength stainless steel chamber for durability

International Standards Compliance

UN 38.3 – Section 38.3.4.1 (Altitude Simulation)
IEC 62133 – Clause 7.3.8 (Safety Requirements)
UL 1642 – Lithium Battery Safety Testing
GB/T 18287 – Lithium Battery General Specification
IEC 60068-2-13 – Low Air Pressure Test

Technical Parameters

Parameter	Specification
Model	HC-BTEM003
Pressure Range	0.5 ~ 100 kPa
Typical Test Pressure	11.6 kPa (≈ altitude 15,420 m)
Pressure Fluctuation	≤5%
Vacuum Display	Analog or Digital Vacuum Gauge
Timer	LED Digital, 0 ~ 99.99 H (adjustable)
Test Duration	Programmable
Inner Chamber Size	Approx. 300300300 mm (customizable)
Chamber Material (Inner)	Stainless Steel
Chamber Material (Outer)	Painted Steel Plate
Sealing Material	High-temperature Silicone Seal

Battery High Altitude Low Pressure Test Chamber for UN38.3 Lithium Battery Safety Testing 0

FAQ

Q1: Why is 11.6kPa used in testing?
A: It simulates an altitude of ~15,000 meters, required by UN38.3 transport safety standards.
Q2: What happens if a battery fails the test?
A: Failure includes leakage, rupture, fire, or voltage drop below 90%.
Q3: Can the chamber size be customized?
A: Yes, HongCe supports full customization.
Q4: Is the system fully automatic?
A: Yes, it supports automatic pressure control and test termination.
Q5: What industries need this equipment?
A: EV, energy storage, electronics, and battery manufacturing industries.

About HongCe

HongCe is a professional manufacturer specializing in IEC-compliant testing equipment, providing reliable solutions for battery, appliance, and electronics industries worldwide. With a focus on precision and durability, HongCe helps customers ensure product safety and compliance.
