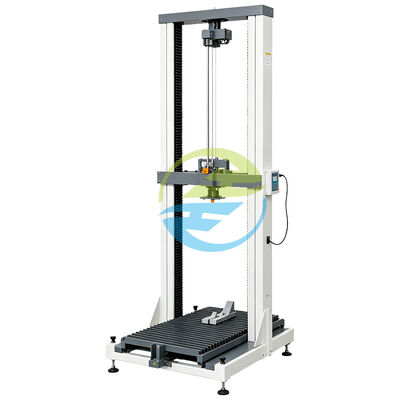

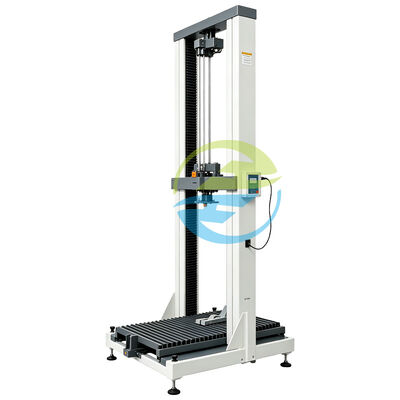

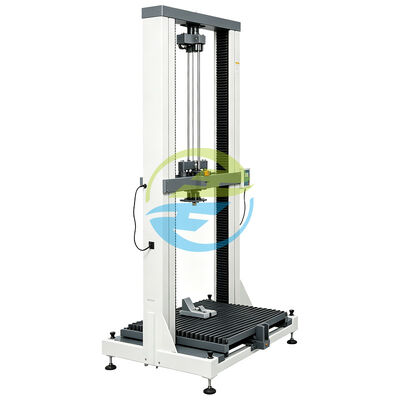

Battery Drop Test Machine for Lithium Battery Impact Testing | Adjustable Free Fall 400–1500mm | Pneumatic Clamping | IEC 62133 & UN38.3 Battery Testing Equipment

Brand Name:	HongCe
Model Number:	HC-BTEM002
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C,T/T
Supply Ability:	10 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Drop Board Material:

Steel Plate

Air Source:

≥0.4MPa

Drop Surface Size:

560 × 410 × 10 Mm

Machine Dimensions:

570 × 650 × 1730 Mm

Machine Weight:

80 Kg

Power Supply:

AC 220V, 3A

Packaging Details:

Plywood

Highlight:

Lithium battery drop test machine

Adjustable free fall battery tester

Pneumatic clamping battery testing equipment

Product Description

Battery Drop Test Machine for Lithium Battery Impact Testing | Adjustable Free Fall 400–1500mm | Pneumatic Clamping | IEC 62133 & UN38.3 Battery Testing Equipment

The Battery Drop Test Machine is designed to simulate free-fall impact conditions for lithium batteries, battery packs, and electronic products. With precise height control, pneumatic clamping, and stable structure, it ensures reliable safety testing and compliance with international standards.

Product Overview

When it comes to battery safety, real-world simulation makes the difference between compliance and risk.

The Battery Drop Test Machine is engineered to replicate free-fall impact scenarios that batteries may encounter during transportation, handling, or daily use. By accurately controlling drop height and ensuring consistent release conditions, it allows manufacturers to evaluate structural integrity and safety performance with confidence.

Built with a pneumatic clamping system and precision height measurement, the machine guarantees repeatability and operational stability. Whether in a laboratory, production line, or third-party testing facility, it serves as a reliable solution for battery safety validation.

As a direct manufacturer, HongCe provides not just equipment, but a long-term partnership—covering customization, technical support, and after-sales service.

International Standards

UN38.3
Section 38.3.4.6: Drop Test for transport safety
IEC 62133
Mechanical test requirements for portable batteries
UL 1642:2012
Safety standard for lithium batteries
GB/T 31241-2014
Safety requirements for lithium-ion batteries

Applications

Lithium battery manufacturers
EV battery pack production
Consumer electronics industry
Quality inspection departments
Third-party testing laboratories

Technical Specifications

Parameter	Specification
Model	HC-BTEM002
Sample Weight	2kg ±100g
Drop Height	400–1500mm adjustable
Control Method	Button control
Lifting Method	Automatic lifting
Drop Method	Free fall
Height Accuracy	±1mm
Height Display	LED display
Clamping Method	Pneumatic clamp

Battery Drop Test Machine for Lithium Battery Impact Testing | Adjustable Free Fall 400–1500mm | Pneumatic Clamping | IEC 62133 & UN38.3 Battery Testing Equipment 0

FAQ

Q1: What is the maximum sample weight?

Standard is 2kg, customization is available.

Q2: Can the drop height be extended?

Yes, customized range can be designed based on requirements.

Q3: Is the machine suitable for battery packs?

Yes, it supports cells, modules, and packaged batteries.

Q4: What air pressure is required?

Minimum ≥0.4MPa compressed air.

Q5: Can it meet UN38.3 certification requirements?

Yes, it is designed for compliance testing.
