3.2Kw Free Air Oven Heating Chamber RT+20℃~200℃ IEC60884-1 Test Equipment HH0812

3.2Kw Free Air Oven Heating Chamber RT+20℃~200℃ IEC60884-1 Test Equipment HH0812

  • 3.2Kw Free Air Oven Heating Chamber RT+20℃~200℃ IEC60884-1 Test Equipment HH0812
  • 3.2Kw Free Air Oven Heating Chamber RT+20℃~200℃ IEC60884-1 Test Equipment HH0812
  • 3.2Kw Free Air Oven Heating Chamber RT+20℃~200℃ IEC60884-1 Test Equipment HH0812
3.2Kw Free Air Oven Heating Chamber RT+20℃~200℃ IEC60884-1 Test Equipment HH0812
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate (cost additional)
Model Number: HH0812
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood
Delivery Time: 60 days
Payment Terms: L/C, T/T,
Supply Ability: 10 sets prt month
Contact Now
Detailed Product Description
Rotary Motor Power: 1/4HP, Speed 5RPM Temperature Range: RT+20℃~200℃ Or 300℃(for Option)
Ventilation Volume Adjustment Range: 8~20 Times / Hour Time: 999.9 Hours Can Be Set
Heater: Screw Pipe Type Heater Power: 3.2Kw; With Two Section Of Heating Choice Model
High Light:

Heating Chamber Free air Oven

,

IEC Test Equipment Free-air Oven

,

3.2Kw IEC Test Equipment

3.2Kw Free-air Oven (Heating Chamber) RT+20℃~200℃ IEC60884-1 Test Equipment HH0812



Standard with IEC Test Equipment:

IEC 60884-1 2013 clause 16.1



Application with IEC Test Equipment:

This device is use to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and so on



Test sample with IEC Test Equipment:

polymer materials, wire and cable sheathing, heat shrinkable tube, PVC and so on



Characteristics with IEC Test Equipment:

1. Microcomputer electronic digital control mode is adopted, it is precise, accurate, stable and reliable.

2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.

3. Heating adopts natural circulation (convection wind). The air supply method has a rapid temperature rising speed and uniform distribution.

4. With P.I.D. control system, and double over-temperature protection, it is safe and reliable.

5. The temperature setting is simple, and the operation is much convenient.

6. Attachment turntable, the height is adjustable.



Parameters with IEC Test Equipment:

Parameter Name Specification
Temperature range Normal temperature RT ~ 300 ° C
Inner chamber size L 50cm * W 60cm* H 80cm
Temperature control PID digit setting, (power about 3300w)
Test stand Two trays, two turntables
Timer 0~9999H/M/S
Temperature resolution 0.1℃
Temperature fluctuation ±1℃
Distribution error ±2.5℃
Air circulation Natural ventilation
Observation window Square window
Material Inner chamber SUS#304 stainless steel, outer chamber electrostatic spray paint
Equipment weight About 120kgs
Equipment size 1060mm×700mm×1445mm
Power Supply AC 220V, 50Hz

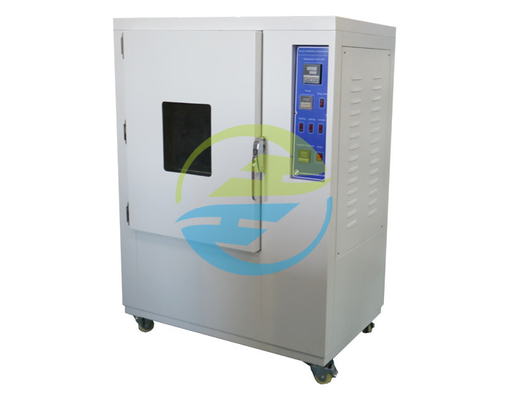

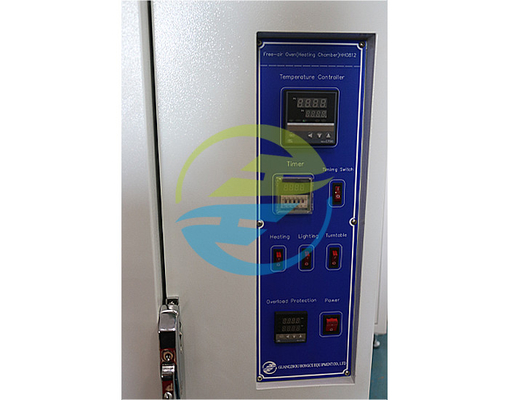

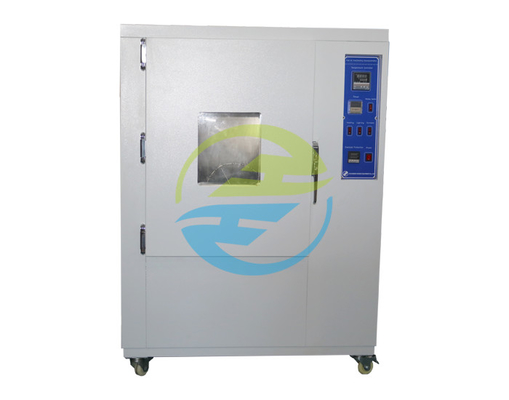

Picture for reference:

3.2Kw Free Air Oven Heating Chamber RT+20℃~200℃ IEC60884-1 Test Equipment HH0812 03.2Kw Free Air Oven Heating Chamber RT+20℃~200℃ IEC60884-1 Test Equipment HH0812 1

3.2Kw Free Air Oven Heating Chamber RT+20℃~200℃ IEC60884-1 Test Equipment HH0812 2
