Place of Origin: | China |
Brand Name: | HongCe |
Certification: | Third part calibration certificate(cost additional) |
Model Number: | HC9903 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiatable |
Packaging Details: | plywood |
Delivery Time: | 15 days |
Payment Terms: | L/C,T/T |
Supply Ability: | 10 set /month |
Working Station: | Single Working Station | Standard: | IEC60884 |
---|---|---|---|
Test Sample: | Terminals, Connectors | Test Rate: | 10±2 RPM |
Test Height: | 260, 280, 300, 320mm | Diameter Of Ferrule Hole: | 6.5, 9.5, 13, 14.5mm |
High Light: | Guide Rail Structure Test Equipment,Guide Rail Structure Test Device,Single Workstation Test Equipment |

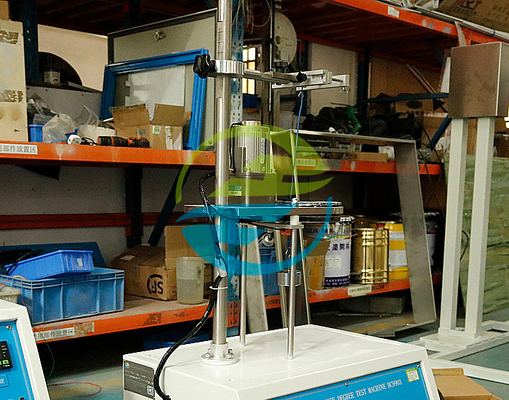

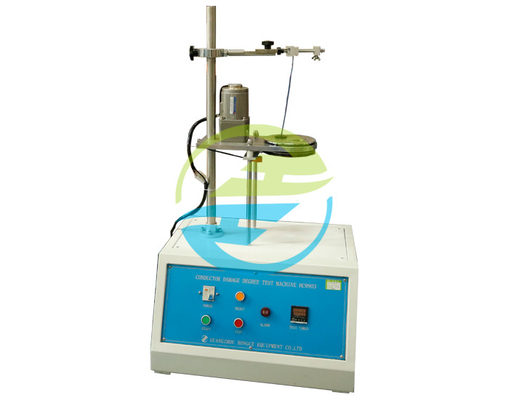

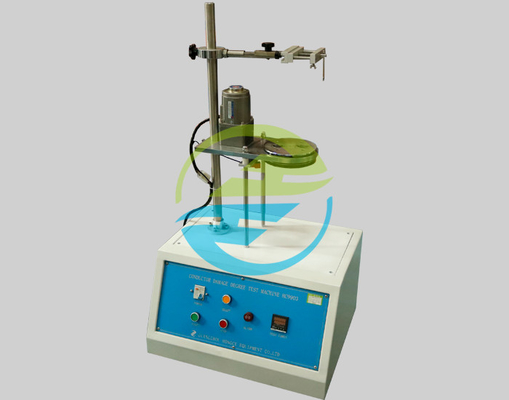

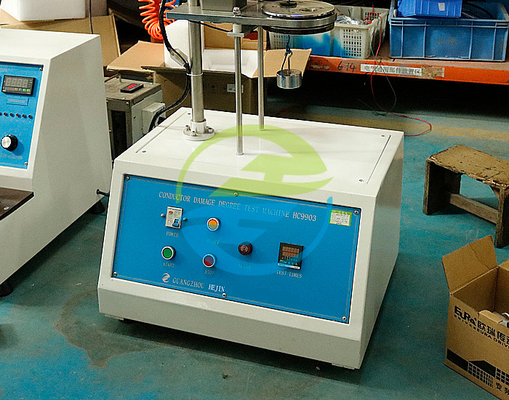

IEC60884 Test Equipment Guide Rail Structure Single Workstation Conductor Damage Degree Test Device
Standard with IEC Test Equipment:
IEC60884-1 2013 clause 12.2.2, 12.3.10 and figure 11, IEC60669-1, UL486A-B
Application with IEC Test Equipment:
This device is use to check whether the terminals with screw and screwless terminals can bears the mechanism force under normal operation. Mainly use to judge whether the design and structure of screw clamping terminals meet the requirement of clamp the conductors without excessive damage.
Test sample with IEC Test Equipment:
Terminals, connectors
Feature with IEC Test Equipment:
Adopt the structure of guide rail. Can preset test times, while testing, tester will automatic stop when preset test times completed, and output sound alarm signal.
Parameters with IEC Test Equipment:
Model | HC9903 | HC9903A | HC9903B(2 stations) |
Test rate | 10±2 RPM | 10±2 RPM | 9±1 RPM |
Diameter of gyration | 75mm | 75mm | 76mm |
Test times | 0~9999 | 0~9999 | 0~9999 |
Weights | 0.3, 0.4, 0.7, 0.9, 1.4, 2kg | 0.3, 0.4, 0.7, 0.9, 1.4, 2, 2.9, 4.5, 5.9, 6.8, 8.6, 9.5, 10.4, 14, 15, 16.8, 20, 22.7kg | 0.7, 0.9, 1.4, 2.3, 3.6, 4.5, 6.8, 11.4, 13.6, 18.2, 22.7, 27.2, 36.3, 45.4kg |
Test height | 260, 280, 300, 320mm | 250~500mm | 250~500mm |
Diameter of ferrule hole | 6.5, 9.5, 13, 14.5mm | 6.5~28.6mm, 12 pc | 6.5~28.6mm, 12 pc |
Standards | IEC60884-1, IEC60669-1 | IEC60998-2-2 | UL486A-B, UL498 |
Our advantage service:
We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.
Technical support:
All our workers are experienced and skilled.
After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
About Us:
Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
