Low Temperature Pressure Impact Test Equipment IEC60884 Figure 27

Brand Name:	HongCe
Model Number:	LTI-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, Western Union
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Material:

Stainless Steel

Standard:

IEC60884 Figure 27 And Figure 42

The Height Of Falling:

10~250mm Is Adjustable

Weight Of The Drop Hammer:

1000±2g

The Height Of The Impact Mm:

100

Optional:

The Electric Cable With PVC Sheath

Packaging Details:

Plywood

Highlight:

iec tester

laboratory test equipment

Product Description

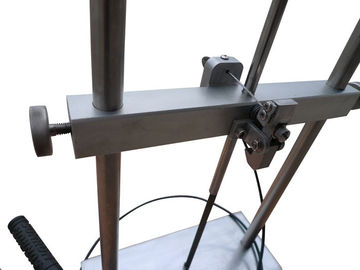

Low Temperature Pressure Impact Test Equipment IEC60884 Figure 27

Product information:

The specimens are subjected to an impact test by means of an apparatus as shown in figure 27.
The apparatus, positioned on a pad of sponge rubber 40 mm thick, is placed together with the specimens in a freezer at a temperature of (–15 ± 2) °C, for at least 16 h.
At the end of this period, each specimen, in turn, is placed in the normal position of use as shown in figure 27, and a weight is allowed to fall from a height of 100 mm. The mass of the falling weight is (1 000 ± 2) g.
After the test, the specimen shall show no damage within the meaning of this standard.

Technical parameters:

The height of falling: 10~250mm is adjustable.

Low-temperature impact test sample	Standard	Weight of the drop hammer (g)	The height of the impact mm	Remark
The socket box and the similar electrical enclosure	GB2099.1-2008 clause24.4, figure 27	1000±2	100	standard
The bolt with insulation sheath	GB2099.1-2008 clause30.4, figure 42	100±1	100	standard
The electric cable with PVC sheath	GB2951.4 clause8.5,figure 2	100,200,300,400, 500,600,750,1000,1250,1500g	100	Optional

For the samples of laying of cable, the weight of the drop hammer required are as follows:

The external diameter of the samples(D/mm)	The weight of the drop hammer /g
D≤4.0	100
4.0＜D≤6.0	200
6.0＜D≤9.0	300
9.0＜D≤12.5	400
12.5＜D≤20.0	500
20.0＜D≤30.0	750
30.0＜D≤50.0	1000
50.0＜D≤75.0	1250
75.0＜D	1500

For the samples of flexible cable and telecommunication cable, the weight of the drop hammer required is as follows:

The external diameter of the sample D/mm	The weight of drop hammer /g
D≤6	100
6.0＜D≤10.0	200
10.0＜D≤15.0	300
15.0＜D≤25.0	400
25.0＜D≤35.0	500
35.0＜D	600

Low Temperature Pressure Impact Test Equipment IEC60884 Figure 27 0
