| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | TUV、ITS、CSA、BV、SGS 、CNAS(cost additional) |
| Model Number: | BP-1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T |
| Supply Ability: | 50 set/ month |
| Material: | Stainless Steel | Ball Pressure: | 20N±0.2N |
|---|---|---|---|
| Ball Diameter: | Ø5mm ±0.05mm | Ball: | Hardened Steel |
| Hole Diameter: | 1.2mm | Standards: | IEC 60884-1figure 37 |
| High Light: | iec tester,laboratory test equipment |
||

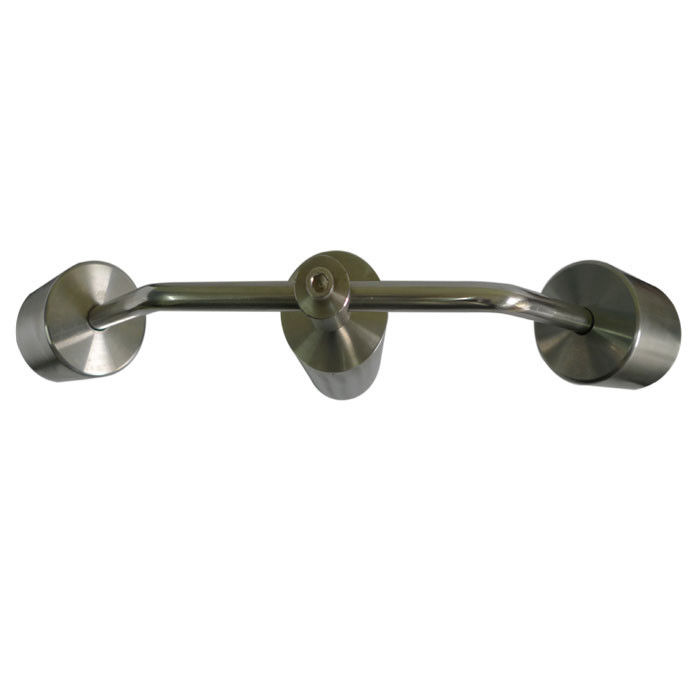

Solid Electrical Insulated Stainless Steel Ball Pressure Tester , Heat Resistance
Product details:
The HT Ball Pressure Tester conforms to many standard requirements like IEC60884-1, IEC60950 and so on. It is used for testing the heat resistance of the electrical enclosure and external parts which are made up with the insulating materials. It is applicable to electrotechnical equipment and its subassemblies and components. It is also used for solid electrical insulating materials except ceramics.
In this test, a conditioned specimen is placed on a preheated support and subjected to a force of 20N applied through a 5mm steel ball. The test stand, specimen and loading device are then kept in an oven at an elevated temperature for an hour. After the hour, the loading device is removed from the sample, the sample is cooled and any indentation is measured. It is important to assure that the test stand has reached a stable elevated temperature as required by the test.
Technical parameters:
| Ball Diameter | Ø5mm ±0.05mm |
| Ball Pressure | 20N±0.2N (includes loading device and ball) |
| Test Standard | 100mm high x 50mm diameter |
| Hole diameter | 1.2mm |
| Material | Stainless steel, Ball: hardened steel |
