Air Cooled Type Electro Dynamic Vibration Testing Equipment With 2~5000hz Frequency Range

Brand Name:	HongCe
Model Number:	HC-300-3
MOQ:	1 set
Price:	Negotiatable
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Product Name:

Electro-dynamic Vibration System

Usable Frequency Range:

2~5000Hz

Max Acceleration:

980 M/s²

Max Displacement:

40mm

Rate Sine Force:

2.94 KN

Table Size:

600*600mm

Max Static Payload:

120 Kg

Application:

Testing Machine,Widely

Packaging Details:

Plywood

Highlight:

Electro Dynamic Vibration Testing Equipment

Air Cooled Dynamic Vibration Testing Equipment

Product Description

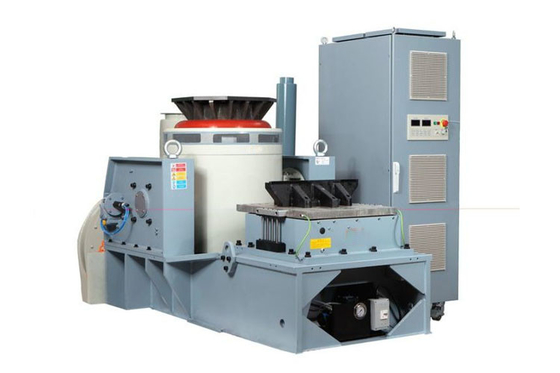

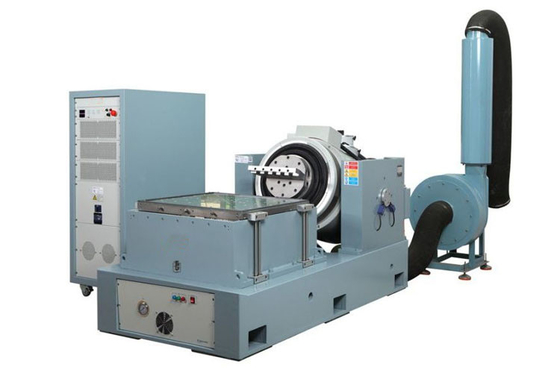

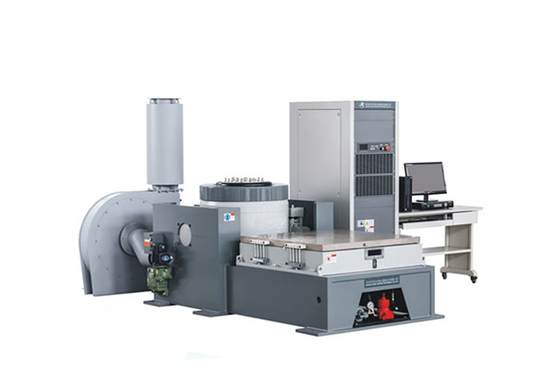

Air-Cooled Type Electro-Dynamic Vibration Testing Equipment With 2~5000hz Frequency Range

Introduction of Electro-Dynamic Shakers:

An electro-dynamic shaker, also known as a vibration shaker, is a sophisticated testing device that generates controlled vibrations to replicate environmental conditions and mechanical stresses that vehicles might encounter during their operational lifespan. These shakers are composed of an electromagnetic drive system, an armature table, and various sensors and control systems. By precisely controlling the amplitude, frequency, and direction of vibrations, electro-dynamic shakers enable automotive engineers to subject vehicles and their components to a wide range of testing scenarios.

Application of Vibration Testing Equipment:

Air-cooled electro-dynamic vibration system is suitable for a variety of typical vibration for auto parts, electronic components, aerospace products stress screening and simulation test requirements.

Features of Vibration Testing Equipment:

Usable frequency range: 2~5000Hz

A full range of protection function

Convenient maintenance

Dual magnetic structure, lower stray flux density

Anti-overturning and good guidance ability

Some systems’ displacement can be expand to 76mm

Center spring loading structure, high payload capacity

Air-spring isolation design, lower resonance frequency of shaker body

Parameter of electro-dynamic vibration system:

Model	HC-300-3	HC-600-6
Usable Frequency Range (Hz)	2～5000	2～5000
Rate Sine Force (kN)	2.94	5.88
Max Acceleration (m/s²)	980	980
Max Displacement (mm)	40	51
Max Static Payload (kg)	120	200
Vibrator	-300	-600
Effective Armature Mass (kg)	3	6
Armature Diameter (φmm)	150	200
Cross-axial Allowable Eccentric monent (N×m)	196	300
