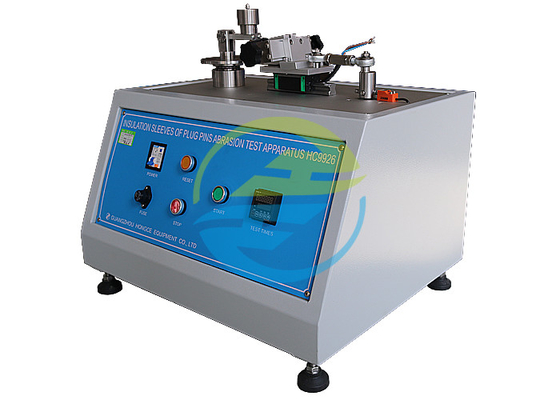

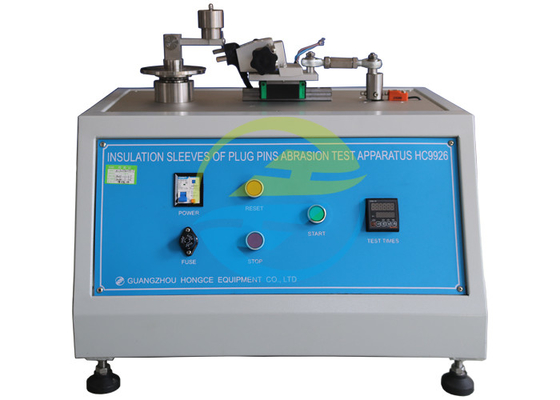

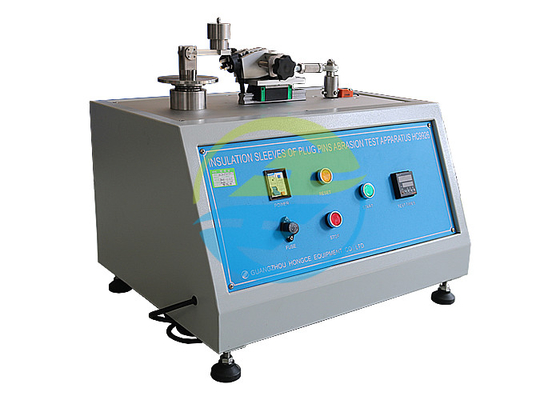

IEC 60884 Testing Equipment Insulating Sleeves Of Plug Pins Abrasion Test Apparatus with 9mm Stroke

IEC 60884 Testing Equipment Insulating Sleeves Of Plug Pins Abrasion Test Apparatus with 9mm Stroke

Brand Name:	HongCe
Model Number:	HC9926
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Test Stations:

1 Station

Load:

Test Time:

1-999999

Rate Of Abrasion:

30 Movements Per Minute

Working Stroke:

9mm

Test Sample:

Insulation Sleeve Of Plug Pins

Usage:

Testing The Abrasion Resistance Of Insulation Sleeve Of Plug Pins

Product Name:

Insulating Sleeves Of Plug Pins Abrasion Test Apparatus

Packaging Details:

Plywood

Highlight:

IEC 60884 Abrasion Test Apparatus

Plug Pins Abrasion Test Apparatus

Product Description

IEC 60884 Testing Equipment Insulating Sleeves Of Plug Pins Abrasion Test Apparatus with 9mm Stroke

Standard of Apparatus for abrasion test on insulating sleeves of plug pins:

IEC 60884-1: 2022 Plugs and socket-outlets for household and similar purposes -Part 1: General requirements clause 24.8 and figure 31;

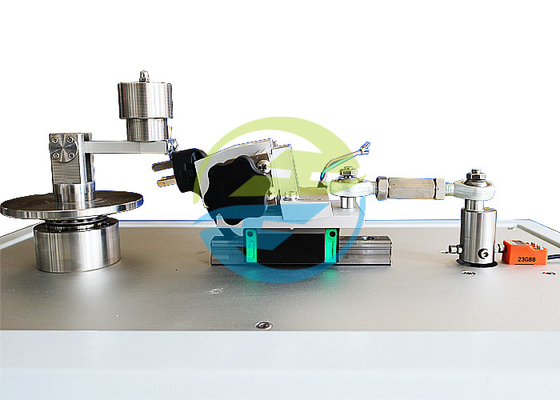

The Apparatus for abrasion test on insulating sleeves of plug is designed to evaluate the wear resistance and reliability of the insulation sheath on plugs. It meets the standard requirements of IEC 60884-1 Figure 28 and BS 1363 Figure 9. The tester can simulate the wear conditions that plugs may encounter during use through various test conditions and parameters.

Application of IEC 60884 Testing Equipment:

The plug insulation sheath wear tester is mainly used to test the wear resistance of the insulation sheath of plugs. It can simulate the wear conditions that plugs may encounter during use, such as abrasion, scratching, and other wearing processes. By testing the insulation sheath under different conditions and parameters, the wear resistance and reliability of the insulation sheath can be evaluated, ensuring the safety and durability of the plugs in use.

Test sample of Plug Socket Tester:

Insulation Sleeve of plug pins.

Parameters of IEC 60884 Testing Equipment:

Parameter Name	Parameter Data
Power supply	AC220V, 50Hz
Station	Single station
Test time	1-999999, preset
Rate of abrasion	30±1 movements per minute
Load	4^-0.1N
Working stroke	9mm
