Mechanical Material IEC Test Equipment Pressure Indentation Test Apparatus

Mechanical Material IEC Test Equipment Pressure Indentation Test Apparatus
Mechanical Material IEC Test Equipment Pressure Indentation Test Apparatus Mechanical Material IEC Test Equipment Pressure Indentation Test Apparatus Mechanical Material IEC Test Equipment Pressure Indentation Test Apparatus Mechanical Material IEC Test Equipment Pressure Indentation Test Apparatus

Large Image :  Mechanical Material IEC Test Equipment Pressure Indentation Test Apparatus

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: HTI-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 set per month
Detailed Product Description
Standard: IEC 60884-1 Fig41 Edge Thickness: 0.7±0.01mm
Pressure Display: Pressure Gauge Model: HTI-2
Number Of Test Station: 1 Dial Indicator: 0~200mm
High Light:

iec testing equipment

,

iec tester

Mechanical Material IEC Test Equipment Pressure Indentation Test Apparatus







Product details:



The high temperature pressure testing apparatus is used to test the heat resistance of the insulation material. It has a rectangular blade (see figure 41a) with an edge 0,7 mm wide, to be used in the case of round pins, or a blade having a round shape (see figure 41b), with a diameter of 6 mm and an edge of 0,7 mm, in other cases. The specimens are placed in position of the apparatus.



Technical parameters:


The force applied through the blade is 2,5 N.
The apparatus, with the specimen in position, is maintained for 2 h in a heating cabinet at a temperature of (200 ± 5) °C.
The specimen is then removed from the apparatus and, within 10 s, cooled by immersion in cold water.
The thickness of the insulation remaining at the point of impression is measured and shall not have been reduced by more than 50 % of its original value measured at the start of the test.


Number of Test Station:1
Weight: 5g*1,
10g*1,25g*1,50g*1,100g*1,150g*1,200g*1,500g*1(it can be customized)
Edge Thickness: 0.7±0.01mm
Conforms to standard: IEC 60884-1 Fig41, VDE0620,BS1363,IEC60598-2-20clause20.15,IEN60811-3-1



Model HTI-2
Number of Test Station 1
Weight 5g*1,10g*1,25g*1,50g*1,100g*1,150g*1,200g*1,500g*1(it can be customized)
Dial indicator 0~200mm
Conforms to standard

 IEC 60884-1 Fig41, VDE0620,BS1363,IEC60598-2-20clause20.15,IEN60811-3-1

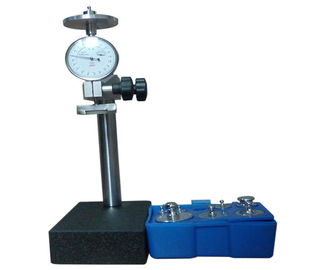

Mechanical Material IEC Test Equipment Pressure Indentation Test Apparatus 0





Another versions for reference:

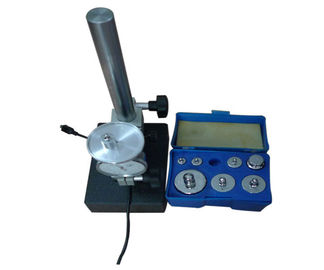

Mechanical Material IEC Test Equipment Pressure Indentation Test Apparatus 1

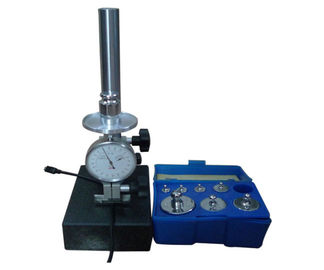

Mechanical Material IEC Test Equipment Pressure Indentation Test Apparatus 2
