IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm

IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm

Brand Name: HongCe
Model Number: HT-I04
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: 100 set per month
Detail Information
Place of Origin:
China
Certification:
Third part calibration certificate(cost additional)
Product Name:
Test Probe D
Dam- Sphere Diameter:
35mm
Rod Diameter (mm):
Ф1
Rod Length (mm):
100±0.2
Probe Material:
Stainless Steel
IP Rating:
IP4
Handle Diameter (mm):
Ф10
Handle Length (mm):
100
Packaging Details:
Aluminum box
Highlight:

IP Testing Equipment

,

IP4X 1mm IP Testing Equipment

Product Description

IEC60529 IP Testing Equipment Test Probe D for IP4X 1mm Probe



Product Introduction for IP Testing Equipment:

The 1.0mm test rod conforms to IEC61032 figure 4 named test probe D and IEC60529 for IP4 and suffix D codes. It is used to verify the protection of persons against access to hazardous parts, also used to verify the protection against access with a tool.

The handle and stop face are made of nylon. The rod is made of stainless steel.

This probe has a terminal clamp to check the continuity during the test, also has a M6 threaded hole at the end of the handle, which can be equipped with a force gauge for force test.



Technical Parameters for IP Testing Equipment:



Model HT-I04
Name Test Probe D
Rod Diameter (mm) Ф1
Rod Length (mm) 100±0.2
Rod Material Stainless Steel
Stop Face Diameter Ф35±0.2
Stop Face Material Nylon
Handle Diameter (mm) Ф10
Handle Length (mm) 100
Handle Material Nylon
Standard IEC60132 Figure 4

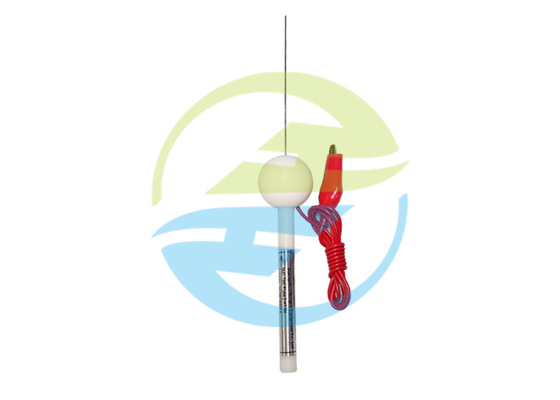

Product structure diagram:

IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm 0

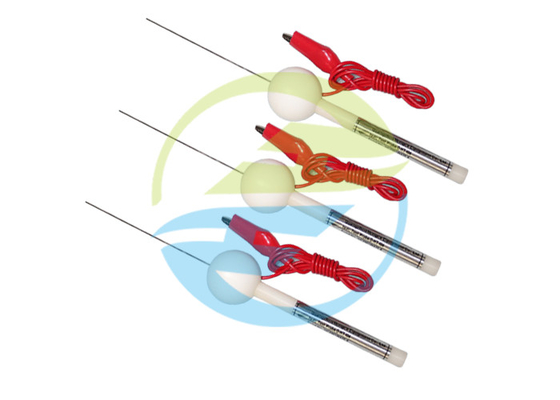

Product detail picture:

IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm 1
