IEC 60529 IP Testing Equipment Test Probe C For IP3 And Protection Against Contact Hazards

Brand Name:	HongCe
Model Number:	HT-I03
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	100 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Product Name:

Test Probe C / IEC 61032 Accessibility Probe IP3X

Test Probe Length:

100mm

Test Probe Diameter:

2.5mm

Dam- Sphere Diameter:

35mm

Probe Material:

Stainless

Standard:

IEC61032 Figure 3 (the Test Probe C)

Packaging Details:

Aluminum box

Highlight:

Ingress Protection Testing Equipment

IP Testing Equipment Protection Agains

Product Description

IEC 60529 IP Testing Equipment Test Probe C for IP3 and Protection against contact hazards

Product Introduction for IP Testing Equipment:

The 2.5mm test rod conforms to IEC61032 figure 3 named test probe C and IEC60529 for IP3 and suffix C codes. It is used to verify the protection of persons against access to hazardous parts, also used to verify the protection against access with a tool.

The handle and stop face are made of nylon. The rod is made of stainless steel.

This probe has a terminal clamp to check the continuity during the test, also has a M6 threaded hole at the end of the handle, which can be equipped with a force gauge for force test.

Technical Parameters for IP Testing Equipment:

Model	HT-I03
Name	Test Rod Probe C
Rod Diameter (mm)	Ф2.5
Rod Length (mm)	100±0.2
Rod Material	Stainless Steel
Stop Face Diameter	Ф35±0.2
Stop Face Material	Nylon
Handle Diameter (mm)	Ф10
Handle Length (mm)	100
Handle Material	Nylon
Standard	IEC60132 Figure 3

product structure diagram for IP Testing Equipment:

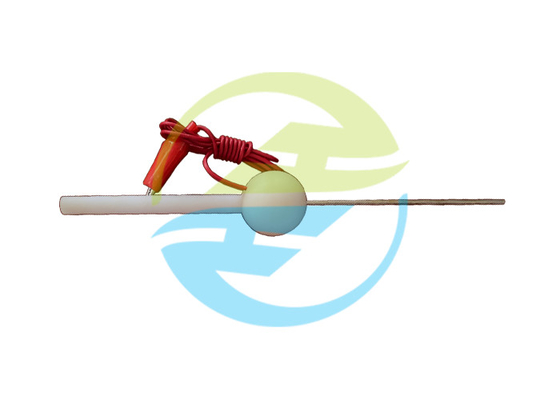

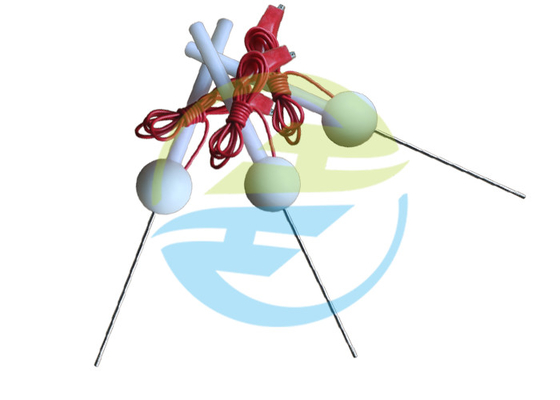

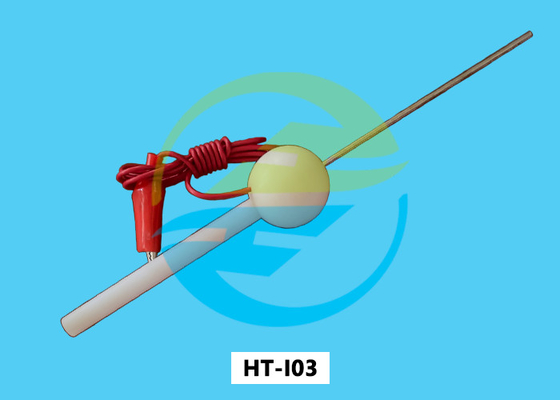

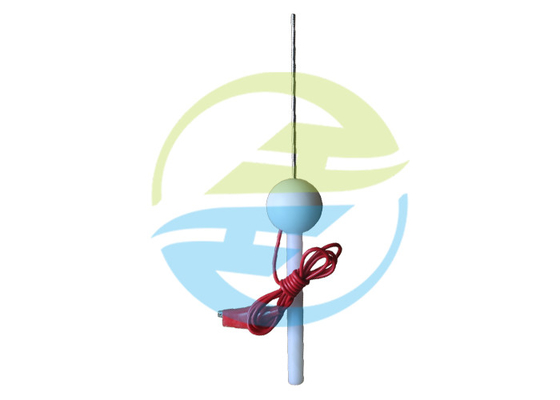

Product display (multi-picture):

Note: The voltage of the anti-shock probe experiment device is (40V-50V), the buzzer sound indicates the electric shock prompt.
