IP Testing Equipment Test Probe A Made Of Nylon Handle And Steel Ball IEC60529 IP1

Brand Name:	HongCe
Model Number:	HT-I01
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Handle Diameter:

10 Mm

Material:

Nylon + Stainless Steel

Handle Length (Nylon):

100 Mm

Sphere Diameter:

50 Mm

Standards:

IEC61032, IEC60529

Guard Diameter:

45mm

Oem:

Yes

Warranty:

1 Year

Packaging Details:

Aluminum box

Highlight:

Shock Prevention IP Testing Equipment

Nylon Handle IP Testing Equipment

Product Description

IP Testing Equipment Test Probe A Made of Nylon Handle and Steel Ball IEC60529 IP1

Product introduction for IP Testing Equipment:

This probe is intended to verify protection of persons against access to hazardous parts for an IP1 Code. Also used to verify protection from access with the back of the hand for an IP suffix A code.

It complies with IEC61032 Fig 1, without dynamometer. Sphere is made of bearing steel. The handle is made of nylon.

Standard for IP Testing Equipment:IEC61032 fig.1, IEC60529 IP1 and IEC60065.

Application for IP Testing Equipment:It is used for inspection to prevent the human body from touching dangerous parts, also used for protection inspection to prevent the back of the hand from being touched.

Test sample for IP Testing Equipment:Easily accessible enclosure live parts or mechanical parts.

Feature for IP Testing Equipment:The test probe is made of nylon handle and steel ball, which can also be customized. It could be equipped with terminals for electric shock prevention, or with M6 threaded holes at the end of the handle (use with push-pull force gauges).

Parameters:

Model	HT-I01
Name	Test probe A
Rigid test ball diameter (metal)	SФ50+0.05 0
Baffle diameter (nylon)	Ф45±0.2
Baffle thickness	4
Handle diameter	Ф10
Handle length (nylon)	100
Force	----

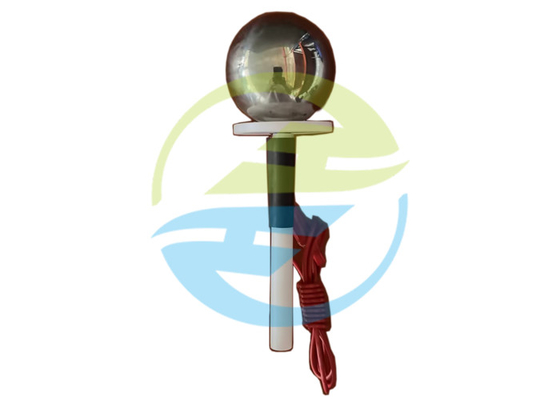

IP Testing Equipment Test Probe A Made Of Nylon Handle And Steel Ball IEC60529 IP1 0

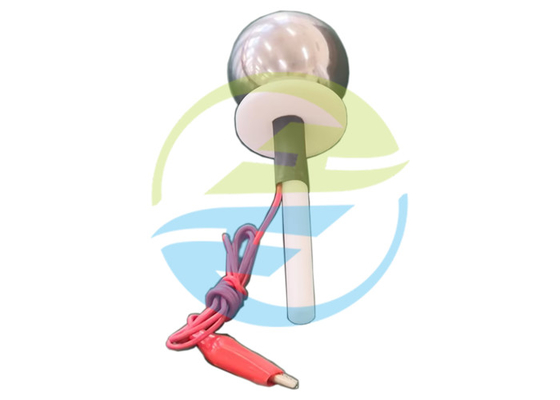

IP Testing Equipment Test Probe A Made Of Nylon Handle And Steel Ball IEC60529 IP1 1

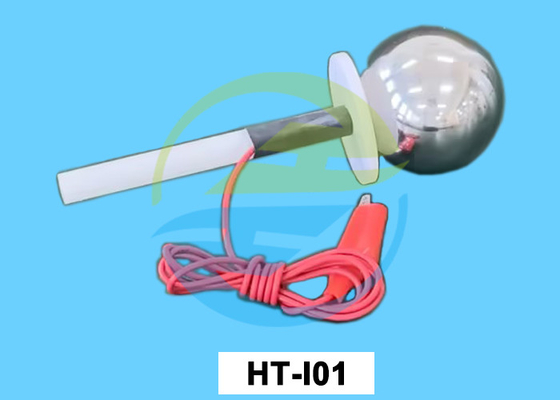

IP Testing Equipment Test Probe A Made Of Nylon Handle And Steel Ball IEC60529 IP1 2
