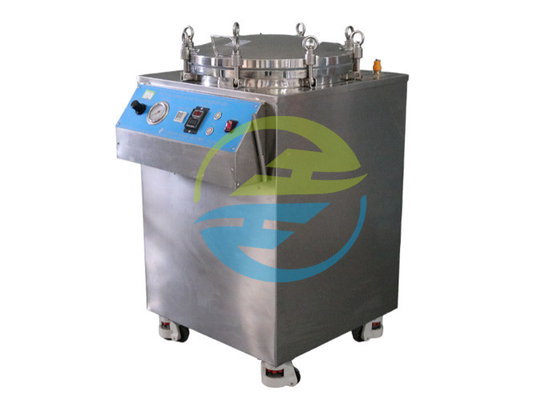

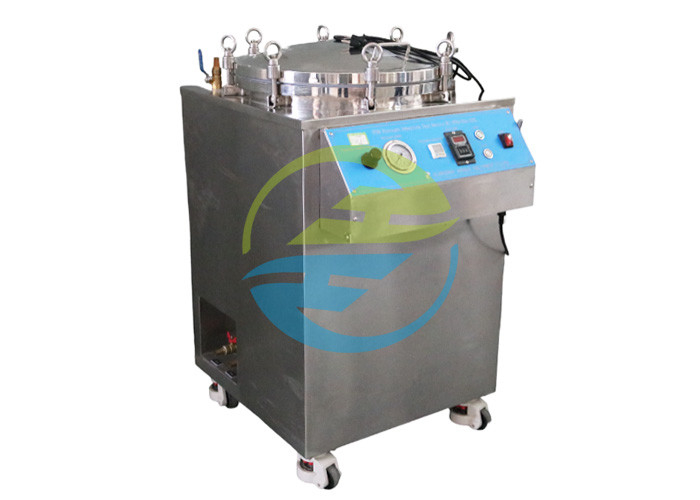

IEC 60529 IP Testing Equipment IPX8 Water Immersion Test 500mm Diameter

IEC 60529 IP Testing Equipment IPX8 Water Immersion Test 500mm Diameter

  • IEC 60529 IP Testing Equipment IPX8 Water Immersion Test 500mm Diameter
  • IEC 60529 IP Testing Equipment IPX8 Water Immersion Test 500mm Diameter
  • IEC 60529 IP Testing Equipment IPX8 Water Immersion Test 500mm Diameter
IEC 60529 IP Testing Equipment IPX8 Water Immersion Test 500mm Diameter
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate(cost additional)
Model Number: HC-IPX8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Carton box
Delivery Time: 40 days
Payment Terms: T/T
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
Standard: IEC 60529 Product Attribute: IP Testing Equipment
Application: IPX7 And IPX8 Test Duration: User-defined
Water Pressure: Adjustable Tank Material: Stainless Steels
Tank Inner Diameter: 500 Mm (Customizable) Simulated Water Depth: Up To 50 Meters
High Light:

Waterproof Testing Equipment

,

IPX8 IP Testing Equipment

IP Testing Equipment IEC 60529 IPX8 Water Immersion Test 500mm Diameter



Standard of IP Testing Equipment:

IEC 60529: 2013 Degrees of protection provided by enclosures (IP Code)



Application of IP Testing Equipment:

IPX8 Water Immersion Test Equipment – Pressure Tank is able to simulate different water pressures at depths of tens of meters. It allows the sample to be exposed to a pressure of a specified water depth by pressurization for a specified time. The sample passes the test if the ingress of water in quantities causing harmful effects never happens.



Feature of IP Testing Equipment:

It is suitable for conducting IPX7/IPX8 waterproof level test of products.

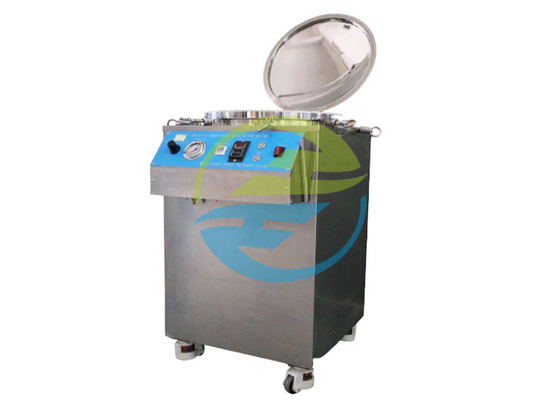

IPX8 tank body adopts thickened 304 stainless steel to ensure adequate strength to withstand rated pressure of up to 50 meters. The dimension of the tank is customisable to meet different specimen specifications. We equip both sides of the cylinder with a pair of pneumatic lifting devices to achieve smooth and automatic opening and closing the lid under control, eliminating operational risk. The lid and the cylinder are sealed with a silicone sealing ring with excellent sealing performance, coupled with 8 bolts to fasten both firmly, which are evenly locked to make them fit tightly, resulting in the remarkable pressure retention performance of the entire cylinder. For some models, we have a viewing window on the lid for you to observe the condition of the specimen during the test.



Parameter of IPX8 Water Immersion Test Equipment:

Material 304 stainless steel
Inner Dimension Diameter: 500 mm, length: 500 mm (Customizable)
Simulated Water Depth Up to 50 meters or customize more (depending on models)
Pressure Sensor Accuracy 0.001 MPa
Pressure Control Accuracy 0.002 MPa
Duration of Test User-defined
Overpressure Protection Device Pressure relief valve



IEC 60529 IP Testing Equipment IPX8 Water Immersion Test 500mm Diameter 0
