| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | calibration certificate(cost additional) |
| Model Number: | HH0804 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Carton box |
| Delivery Time: | 3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Standard: | IEC 60529 | Product Attribute: | IP Testing Equipment |
|---|---|---|---|
| Application: | IPX5 And IPX6 | Test Duration: | At Least 3 Min |
| Water Pressure: | Adjustable | Nozzle Material: | Stainless Steels |
| Nozzle Inner Diameter: | 6.3 Mm & 12.5 Mm | Water Flow Rate: | IPX5: 12.5 L/min, IPX6: 100 L/min |
| High Light: | Adjustable Water Pressure IP Testing Equipment,Handheld IP Testing Equipment |
||
IP Testing Equipment IEC60529 Handheld IPX5 or IPX6 Water Jet Nozzle
Application of IPX5 or IPX6 Water Jet Nozzle:

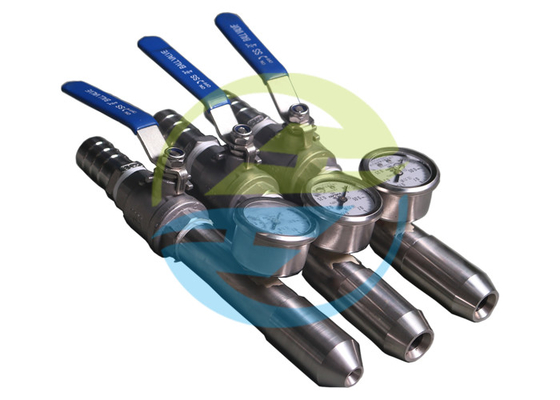

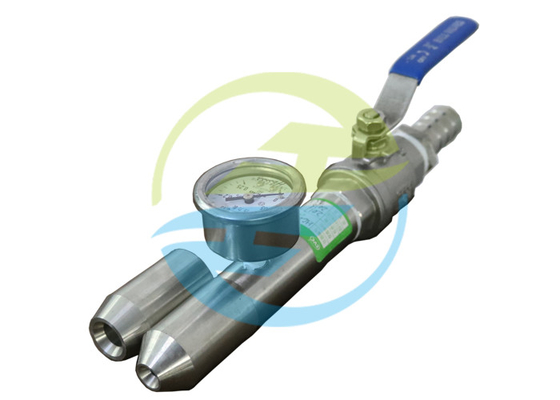

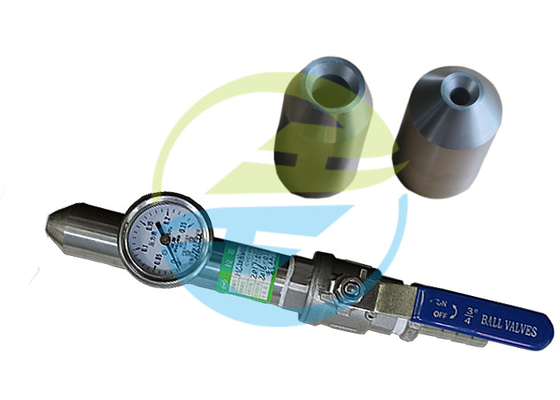

IPX5 or IPX6 call for a specimen to be sprayed with water from all practicable directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100L/min. Instrument; The IPX5-6 Jet Nozzle consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle.
The nozzles are made from stainless steel. Valve for water flow regulation and shut off
Parameter of IP Testing Equipment:
| Water supply | Water flow rate IPX5 ＞ 12.5L/min±5%, IPX6＞100L/min±5% , clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment |
| The nozzle diameter | IPX5: Ф6.3mm, IPX6: Ф12.5mm |
| Water flow | IPX5: 12.5±0.625L/min, IPX6: 100±5 L/min. Flow meter is adjustable |
| The distance from jet nozzle to enclosure | 2.5~3m |
| Testing time | Not less than 1min/m²(not less than 3 mins) |
| Pressure gauge | 0~0.25MPa |
