IP Testing Equipment Hose Nozzles For Water Jetting Test For IPX5 And IPX6

Brand Name:	HongCe
Model Number:	HH0804
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate(cost additional)

Standard:

IEC 60529

Product Attribute:

IP Testing Equipment

Application:

IPX5 And IPX6

Test Duration:

At Least 3 Min

Water Pressure:

Adjustable

Nozzle Material:

Stainless Steels

Nozzle Inner Diameter:

6.3 Mm & 12.5 Mm

Water Flow Rate:

IPX5: 12.5 L/min, IPX6: 100 L/min

Packaging Details:

Carton box

Highlight:

Water Jetting IP Testing Equipment

Ingress Protection Testing Equipment

Product Description

IP Testing Equipment Hose Nozzles For Water Jetting Test for IPX5 And IPX6

Description of IP Testing Equipment:

Ingress protection, or IP Testing, is a basic requirement designed to assess the ability of a product to withstand external influences, such as liquids and solids, that it will encounter in it’s natural operating environment.

The need for IP testing is growing worldwide, both for industrial products and consumer goods, which are increasingly offered with “rugged” water and dust resistant properties. While it is possible to replicate standard IP tests using buckets, hoses and assorted ad hoc equipment, it is hard to demonstrate consistent results and, frankly, it’s often messy.

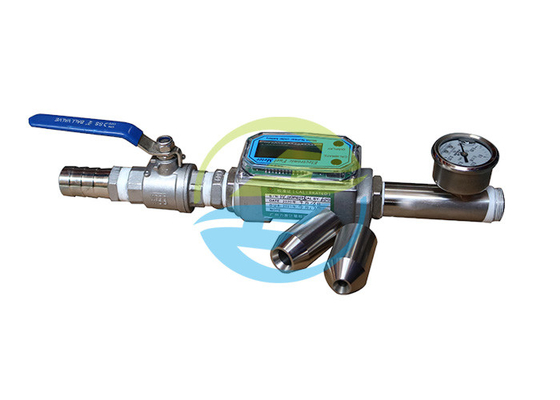

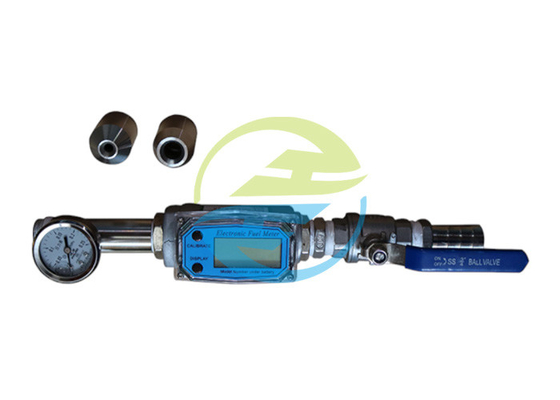

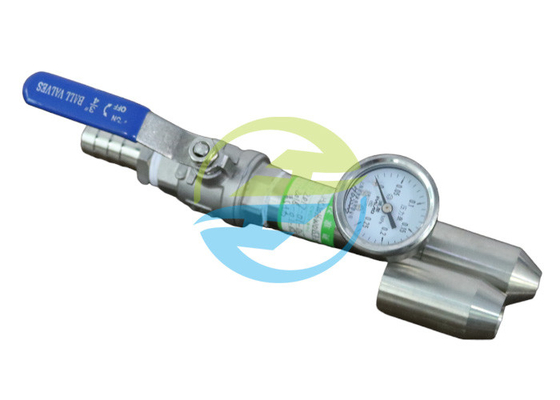

Hongce configures two pieces of hose nozzles for one machine to fit different test requirements. They are made of precision metal and have different specifications: One’s outlet diameter is 6.3 mm for IPX5 & 6K testing, and the other one’s diameter is 12.5 mm for IPX6 testing. You can select either one to complete the test conveniently.

IP Testing Equipment Hose Nozzles For Water Jetting Test For IPX5 And IPX6 0

Parameter of IP Testing Equipment:

Model	HH0804 or HH0804A(with flow meter)
Nozzle Inner Diameter	6.3 mm diameter for IPX5/6K, 12.5 mm diameter for IPX6
Water Pressure	Adjustable
Water Flow Rate	IPX5: 12.5 L/min, IPX6: 100 L/min, IPX6K: 75 L/min
Test Duration	At least 3 min
