IPX3 / IPX4 IP Testing Equipment With Waterproof Handheld Test Device For Splash And Spray Resistance

Brand Name:	HongCe
Model Number:	HH0803
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate(cost additional)

Standard:

IEC 60529

Product Attribute:

IP Testing Equipment

Application:

IPX3 And IPX4

Characteristic:

1 Hole At The CentrExternal Diametere

Pressure:

50～150Kpa

Nozzle Material:

Brass

Spherical Diameter:

SФ75.5mm

Test Duration:

5 Min

Packaging Details:

Carton box

Highlight:

Waterproof IP Testing Equipment

IP Testing Equipment For Splash Resistance

Product Description

IPX3/IPX4 IP Testing Equipment with Waterproof Handheld Test Device for Splash and Spray Resistance

Product brief introduction for IP Testing Equipment:

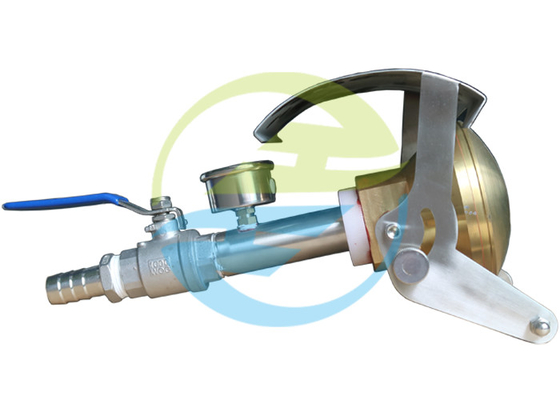

This is a handheld test unit designed for testing IPX3/IPX4 water resistance levels. It simulates drenching and splashing environments to help you evaluate the water resistance of your equipment. This device is easy to operate and carry, making it ideal for laboratory and field testing.

Conditions when using the spray nozzle for IP Testing Equipment:

Test for second characteristic numeral 3 with spray nozzle

The counterbalanced shield is in place for this test.
The water pressure is adjusted to give the specified delivery rate. The pressure to achieve this delivery rate will be in the range of 50 kPa to 1 50 kPa. It should be kept constant during the test.
The test duration is 1 min/m 2 of the calculated surface area of the enclosure (excluding any mounting surface), with a minimum duration of 5 min.

Test for second characteristic numeral 4 with spray nozzle

The counterbalanced shield is removed from the spray nozzle and the enclosure is sprayed from all practicable directions.

The test duration is 1 min/m 2 of the calculated surface area of the enclosure (excluding any mounting surface), with a minimum duration of 5 min.

Standard for IP Testing Equipment:

IEC60529 degree of protection provided by enclosures (IP Code) of the IPX3 and IPX4

Feature:

Used for carrying out the IPX/4 water ingress protection test on specimens which can’t be thoroughly wet using the swivel tube.

The spray nozzle is made of brass and 304 stainless steel.

Full manual control enables you to wet every part of the enclosure under test.

The nozzle contains 121 holes with a diameter of 0.5 mm.

The required pressure is from 50 kPa to 150 kPa.

Comes with a pressure gauge and ball valve, and an electronic flowmeter is allowed to be added if required.

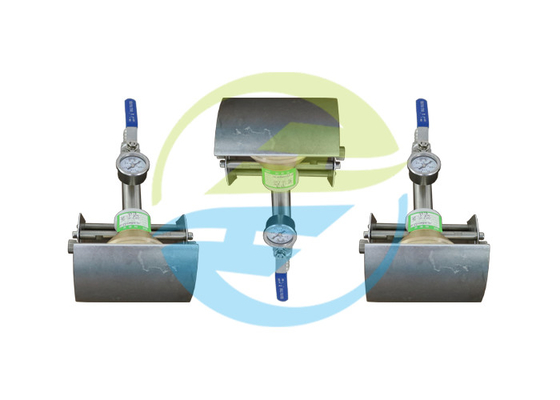

The shield shall be in place for the IPX3 test and be removed from the spherical area for the IPX4 test.

Parameters for IP Testing Equipment:

Item	Parameter
Water supply	Water flow rate is ＞10L/min±5%, pressure is 50～150kpa clean water without inclusion.
Spray nozzle parameters	External diameter: Ф102mm spherical diameter: SФ75.5mm 121 holes of Ф0.5mm; 1 hole at the centre 1 inner circles of 12 holes at 30°pitch 4 outer circles of 24 holes at 15°pitch Moving shield-Aluminum Spray nozzle-Brass
Water flow	10L/min±5%,Flow meter is adjustable
Pressure gauge	50～150Kpa,Range of pressure gauge 0～0.25Mpa
Baffle	Removable
Site requirements	Dedicated IP waterproof test room,The ground should be flat with illumination With good function of inflow and drainage.
Testing time	Manual control, at least 5min
