| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | HH0801 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set /month |
| Drip Area: | 1000mm*600mm (customizable) | Test Range: | IPX1 To IPX2 |
|---|---|---|---|
| Needle Hole: | Φ0.4mm | Drip Height: | 200mm |
| Control And Operation: | PLC Intelligent Control, 7 Inch Color Touch Screen Operation | Turntable Diameter: | Ø800mm (customizable) |
| Rotating Speed: | 1r/min | Testing Time: | 0-999.9min |
| High Light: | Drip Box IP Testing Equipment,Drip Height 200mm IP Testing Equipment,IPX2 Drip Box IP Testing Equipment |
||
IPX1/IPX2 Drip Box IP Testing Equipment With Drip Height 200mm
Standard of IP Testing Equipment:
IEC 60529: 2013 Degrees of protection provided by enclosures (IP Code)
Application:
Test for second characteristic numeral 1 & 2 with drip box.
For assessing the protection against vertically falling water drops.
Feature of IP Testing Equipment:
The test is made with a device which produces a uniform flow of water drops over the whole area of the enclosure.
Box-type drip test chamber & open-type drip apparatus available.

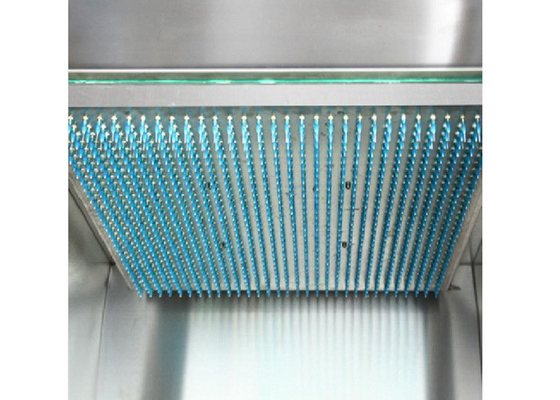

Artificial raindrops are provided over the specimen by dripping needles spaced 20 mm apart from each other.
Water flow rate of (1 + 0.5) mm/min for IPX1 & (3 + 0.5) mm/min for IPX2.
The turntable is rotatable and inclinable by 15 degrees.
Fitted with a touch screen and PLC for data input, display, and automatic control.
Parametersof IP Testing Equipment:
| Item | Parameter |
| Water supply | Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| Control and operation | PLC intelligent control, 7 inch color touch screen operation |
| Testing time | 0-999.9min |
| Water tank size | Outline dimension:WDH=750×1400×1750mm, fully enclosed water tank, SUS304 material |
| Drip test area | 1000×1000mm, customizable |
| Drip height | 200mm, adjustable |
| Dripping rate (Water flow) | 1 mm/min or 3 mm/min switchable, adopt digital controlled rainfall technology |
| Needle hole | Φ0.4mm |
| Distance between holes | 20mm |
| Supporting sample | 15°bevel |
| Water tank lifting drive | Motor drive, screw guide rail to ensure the stable lifting and self-locking |
| Installation method | Wall mounted |
|

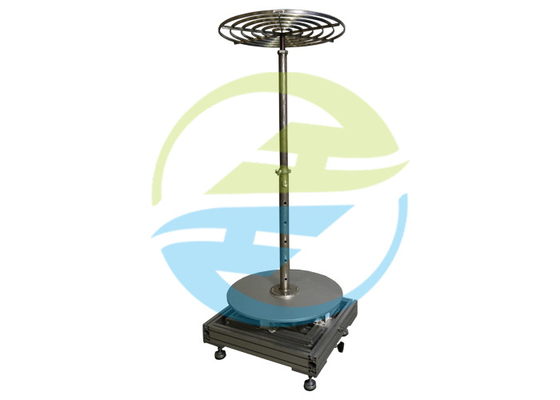

Turntable
|
Rotating speed1r/min. Can be paused 150s at four aspects, Load bearing ≤150㎏electrical equipment, Diameter:800mm, Adjustable height of the adjustable telescopic tube: 300mm,1200mm-1500mm |
| Site requirements |
Dedicated IP waterproof test room,The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation. |
| Area covered | WDH =1500mm×1500mm×3300mm, the size can be set according to customer’s requirement |
