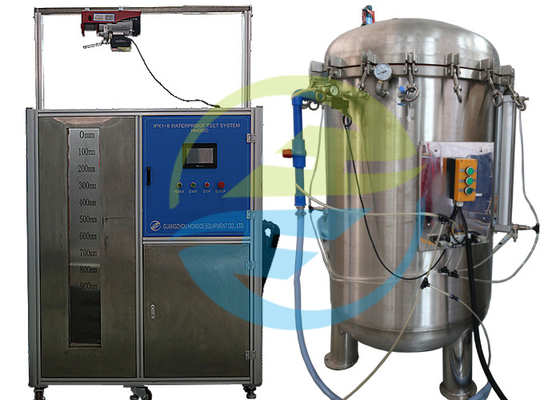

| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HH0820 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 40 days |
| Payment Terms: | T/T |
| Supply Ability: | 5 set per month |
| Product Name: | IEC 60592 IPX1 To IPX8 Waterproof Test System | Test: | Protection Against Water |
|---|---|---|---|
| Drip Test Size: | 1000*600mm | Drip Height: | 200mm |
| Oscillating Tube Size: | R400, R600, R800 | Nozzle Diameter: | IPX5: Ф6.3mm; IPX6: Ф12.5mm |
| IPX8 Tank: | Diameter 0.8 Meter, Height 1 Meter | Turntable Diameter: | Ø600mm |
| Highlight: | Complete IP Testing Equipment,IPX8 Open Type IP Testing Equipment |
||

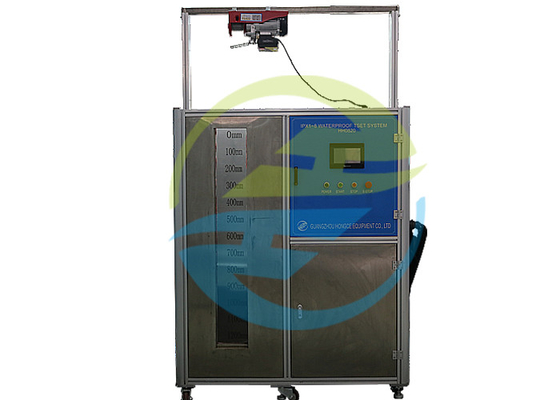

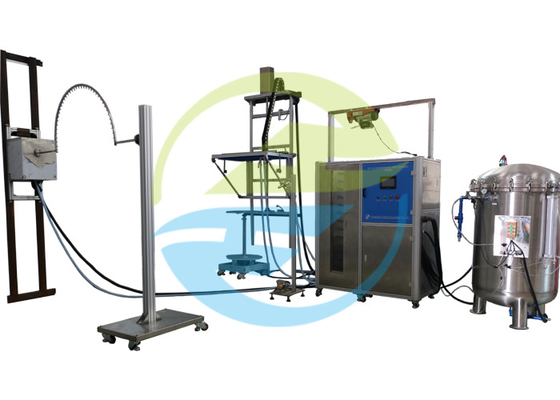

60529 Complete IP Testing Equipment from IPX1 To IPX8 Open Type
Standard of IP Testing Equipment:
IEC60529 degree of protection provided by enclosures (IP Code), clause 14.2.1, 14.2.2, 14.2.3, 14.2.4, 14.2.5, 14.2.6, 14.2.7, 14.2.8, and figure 3, figure 4, figure 5 and figure 6, IPX1, IPX2, IPX3, IPX4, IPX5 IPX6, IPX7 and IPX8, Table 3.
Application of IP Testing Equipment:
It is used to test the degrees of protection against ingress of water indicated by the second characteristic numeral.
Table 3 – Degrees of protection against water indicated by the second characteristic numeral
|
Second characteristic numeral |
Degree of protection |
Test conditions, see |
|
| Brief description | Definition | ||
| 0 | Non-protected | - | - |
| 1 | Protected against vertically falling water drops | Vertically falling drops shall have no harmful effects | 1 4.2.1 |
| 2 | Protected against vertically falling water drops when enclosure tilted up to 1 5° |
Vertically falling drops shall have no harmful effects when the enclosure is tilted at any angle up to 1 5° on either side of the vertical |
1 4.2.2 |
| 3 | Protected against spraying water | Water sprayed at an angle up to 60° on either side of the vertical shall have no harmful effects | 1 4.2.3 |
| 4 | Protected against splashing water | Water splashed against the enclosure from any direction shall have no harmful effects | 1 4.2.4 |
| 5 | Protected against water jets | Water projected in jets against the enclosure from any direction shall have no harmful effects | 1 4.2.5 |
| 6 | Protected against powerful water jets | Water projected in powerful jets against the enclosure from any direction shall have no harmful effects | 1 4.2.6 |
| 7 | Protected against the effects of temporary immersion in water | Ingress of water in quantities causing harmful effects shall not be possible when the enclosure is temporarily immersed in water under standardized conditions of pressure and time | 1 4.2.7 |
| 8 | Protected against the effects of continuous immersion in water |
Ingress of water in quantities causing harmful effects shall not be possible when the enclosure is continuously immersed in water under conditions which shall be agreed between manufacturer and user but which are more severe than for numeral 7 |
1 4.2.8 |
| 9 |
Protected against high pressure and temperature water jets |
Water projected at high pressure and high temperature against the enclosure from any direction shall not have harmful effects | 1 4.2.9 |
What Is the IPX Waterproof Rating Table?
The IPX Waterproof rating chart summarizes the waterproof protection ability of the casing to its internal equipment under different waterproof grades from IPX1 to IPX9K. The larger the value, the more severe the requirements for the waterproof level. Specific IPX rating descriptions are described in the table below. You can choose the corresponding test items according to the waterproof requirements you want to achieve.
The IPX Rating Table as below:
| IPX Code | Degree of Protection |
| IPX0 | None |
| IPX1 | Protect the equipment inside the enclosure against vertical water drips |
| IPX2 | Protect the equipment against vertical water drips with the enclosure inclined by 15° in four directions, respectively |
| IPX3 | Protect the equipment inside the enclosure against spraying water |
| IPX4 | Protect the equipment inside the enclosure against splashing water |
| IPX4K | Protect the equipment inside the enclosure against splashing water with increased pressure |
| IPX5 | Protect the equipment inside the enclosure against water jets |
| IPX6 | Protect the equipment inside the enclosure against strong water jets |
| IPX6K | Protect the equipment inside the enclosure against strong water jets with increased pressure |
| IPX7 | Protect the equipment inside the enclosure against the effects of temporary immersion in water |
| IPX8 | Protect the equipment inside the enclosure against the effects of continuous immersion in water under conditions agreed upon by the interested parties |
| IPX9/IPX9K | Protect the equipment inside the enclosure against high pressure and high temperature water jets |
