IEC 61869-2 Current Transformer Testing Equipment For Ratio Error And Phase Displacement Test

IEC 61869-2 Current Transformer Testing Equipment For Ratio Error And Phase Displacement Test

Brand Name: HongCe
Model Number: DL-30
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: 1 Sets per month
Detail Information
Place of Origin:
China
Certification:
Calibration certificate(cost additional)
Product Name:
Current Transformers Test Apparatus
Feature:
Accuracy (angular Difference, Ratio Difference) Test
International Standard:
IEC 61869-2
Electric Current:
Maximum Current 10000A
Load:
Up To 50VA
Power Source:
220-240VAC,50Hz
Degree Of Accuracy:
±0.01%
Application:
Measuring The Ratio Error And Phase Displacement Of Current Transformers
Packaging Details:
Plywood
Highlight:

IEC 61869-2 Current Transformer Testing Equipment

,

Ratio Error Current Transformer Testing Equipment

Product Description

IEC 61869-2 Current Transformer Testing Equipment For Ratio Error And Phase Displacement Test



Product application:

The Current Transformer Testing Equipment is used for Measuring the ratio error and phase displacement of current transformers.



Standard:

IEC 61869-2 Instrument transformers - Part 2: Additional requirements for current transformers



Current Transformer Testing Equipment configuration:

Current transformer tester, the product is composed of transformer calibrator, standard current transformer , current transformer load box, current booster and control device.

No. Item Specification Qty.
1 Transformer calibrator 2.0 1 set
2 Current transformer load box 5A, 1A 1 set
3 Standard current transformer 5-10000A/5A, 1A; 0.02S level 1 set
4 Current booster 0-5000A,20KVA 2 sets
5 Control device 40KVA 1 set
6 High current wire

2000A*3m*6 pieces

1000A*3m*1piece

500A*3m*2 pieces

250A*3m*2 pieces

100A*3m*2 pieces

1 set
7 Secondary current voltage line   1 set




Features:

Accuracy (angular difference, ratio difference) test, secondary open circuit test;

Multi-testing at one time, automatic line change, range change;

Automatic identification of wiring errors, give sound and light alarm, and guide the abnormal position;

Especially suitable for CT, PT factory test, 2 minutes to complete the accuracy test of 12 CTs;

Customized output report format, results can be uploaded to the manufacturer's ERP system;

Good safety and high test efficiency;



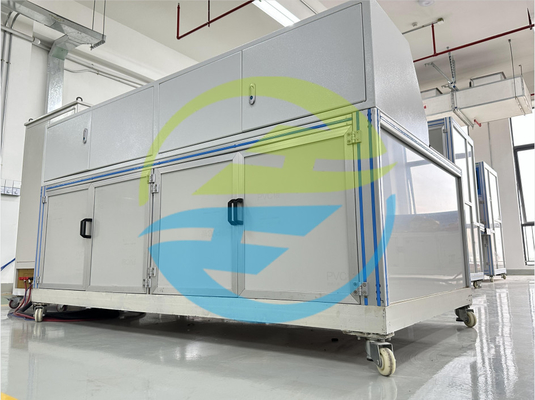

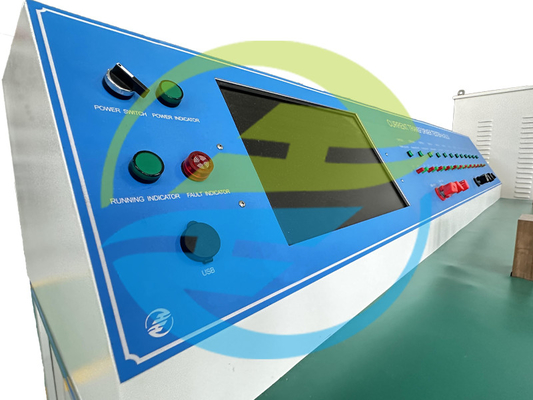

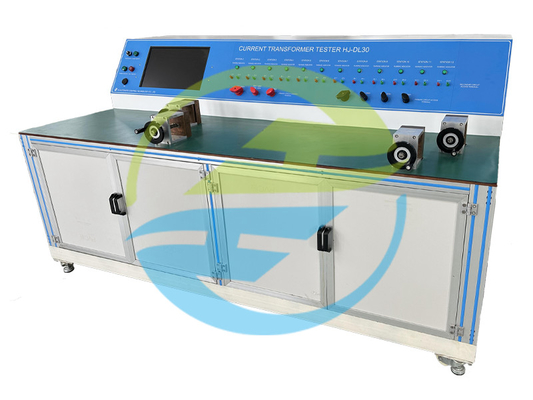

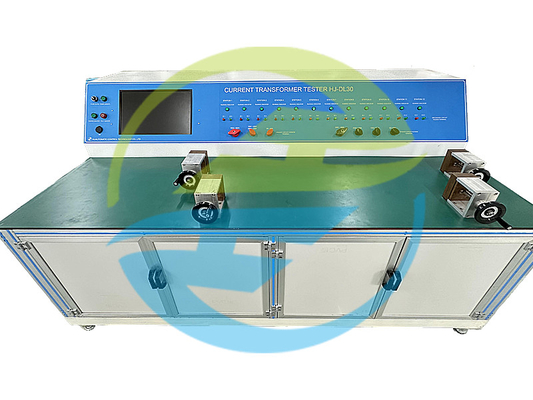

Internal picture of equipment:
