Detailed Product Description

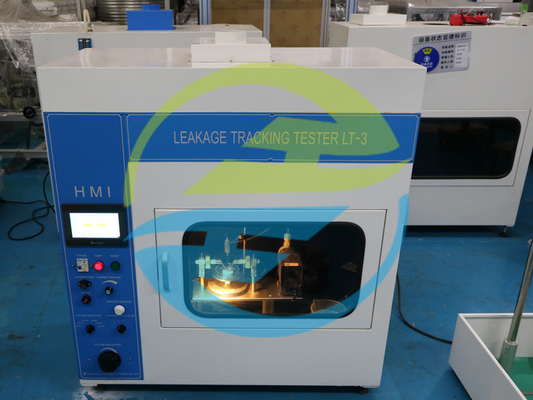

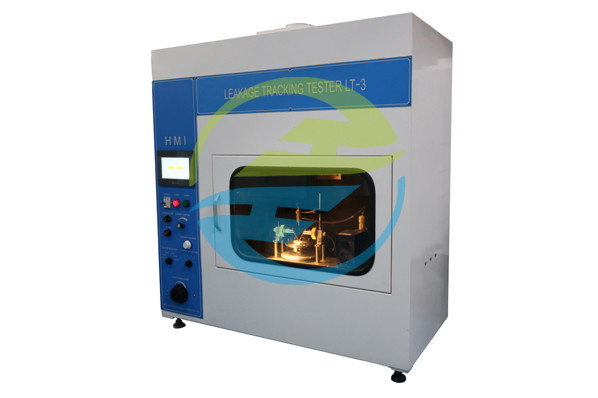

Standard: IEC 60112, IEC60695 And Etc Product Name: Leakage Tracking Tester
Control Operation Mode: Electrical Control Or PLC Control Electrode Spacing: 4±0.1mm
Electrode Pressure: 1±0.05 N Testing Voltage: 0-600V Adjustable
Drip Delay: 0.2S Drip Size: 45 ~ 50 Drops / Cm3
Working Voltage: 220V/50Hz,1KVA
High Light:

IEC60112 Flammability Testing Equipment

,

Flammability Testing Equipment PLC Control

IEC60112 Flammability Testing Equipment Determination of CTI And PTI



Standard:

IEC60112-2009 Method for the determination of the proof and the comparative tracking indices of solid insulating materials.

It specifies the method of test for the determination of the proof and comparative tracking indices of solid insulating materials on pieces taken from parts of equipment and on plaques of material using alternating voltages. Flammability Testing Equipment



Proof tracking index (PTI)

Where, in IEC standards for material or for electrical equipment specifications, or in other standards, a proof test only is required, 50 drop tests shall be made in accordance with Clause 8 but at the single voltage specified. The required number of specimens shall withstand the test period up to at least 25 s after the fiftieth drop has fallen without tracking failure, and without a persistent flame occurring.

Operation of the over-current device by air arcs does not constitute a tracking failure.

The proof voltage shall be an integer multiple of 25 V.

Comparative tracking index (CTI)

Determination of the comparative tracking index requires the determination of the maximum voltage at which five specimens withstand the test period for 50 drops without failure and whether, at a voltage of 25 V lower than the maximum 50 drop figure, the specimen withstands 1 00 drops. If this is not the case, the maximum 1 00 drop withstand voltage has to be determined.



Parameter:

Model LT-2(0.5m³) LT-3(0.5m³) (Touch screen)
Working voltage 220V/50Hz, 1KVA 220V/50Hz, 1KVA
Control operation mode Electrical control, button operation PLC control, 7 inch color touch screen operation, with infrared remote control
Testing voltage 0-600V adjustable, precision 1.5%
Timing device 9999X0.1S. Flammability Testing Equipment
Electrodes Material: Platinum electrode and brass connecting rod
The two electrodes shall have a rectangular cross-section of (5 ± 0,1 ) mm × (2 ± 0,1 ) mm, with one end chisel-edged with an angle of 30° ± 2° (see Figure 1 ). The sharp edge shall be removed to produce an approximately flat surface, 0,01 mm to 0,1 mm wide
Relative position of electrode Included angle: 60°±5°, distance is 4±0.1mm
Electrode pressure 1.00N±0.05N 1.00N±0.05N, Touch screen display
Dripping liquid The interval time of dropping liquid: 30±5S, digital display, can be preset
Height: 35±5mm

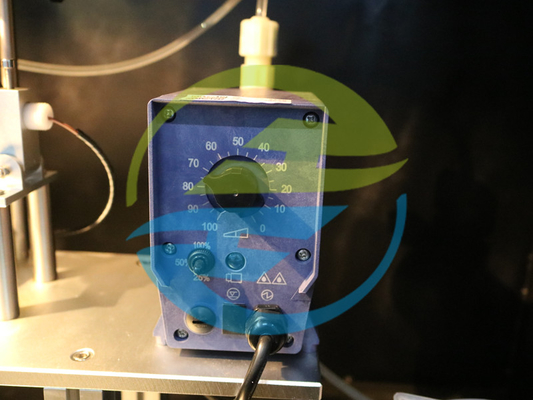

The number of drips:0-9999 times, can be preset, the volume size of the dripping liquid is controlled by the imported micro pump within 50 ~ 45 drips /cm³
Test solutions Solution A: 0.1%NH4Cl, 3.95±0.05Ωm, Solution B: 0.1%NH4Cl + 0.5± 0.002% sodium-di-butyl naphthalene sulfonate, 1.98±0.05Ωm
Time-delay circuit 2±0.1S (in 0.5A or larger current)
Short-circuit pressure drop 1±0.1A 1%, pressure drop 8% MAX
Wind speed 0.2m/s.
Environmental requirement 0~40℃, relative humidity≤80%, in the place of no obvious vibration and corrosive gas
Dimensions and weight WDH=1100×550×1200 mm, 130kg WDH=1100×550×1200 mm, 130kg


We have other Flammability Testing Equipment Available. Needle-Flame Test Apparatus in IEC 60695-11-5, Horizontal-vertical Flame Test Apparatus in IEC 60695-11-3 and IEC 60695-11-4, Glow-Wire Test Apparatus in IEC60695-2-10, IEC60695-2-11, IEC60695-2-12 and IEC60695-2-13 and etc. Please refer to the Test Equipment List for Flammability Testing Equip...for our full equipment list of Flammability Testing Equipment.
