IEC Test Equipment Label Marking Abrasion Testing Equipment Manually Operation

IEC Test Equipment Label Marking Abrasion Testing Equipment Manually Operation

Brand Name:	HongCe
Model Number:	HK1501
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Product Name:

Label Marking Abrasion Testing Equipment

Standard:

IEC 60065, IEC 60884-1, IEC 60335-1

Test Stroke:

10-60mm

Speed:

5-60/min

Counter:

0-99999999 Adjustable

Power Supply:

Usually 220V, 50Hz

Sample Holding Method:

Clamp Or Clamping Device Can Be Selected

Operation Method:

Manually Operation

Packaging Details:

Plywood

Highlight:

IEC 60065 Label Wear Testing Machine

Electric Control Label Wear Testing Machine

Product Description

IEC 60065:2014 clause 5.1 Label Marking Abrasion Test Machine

Product presentation:

Label wear testing machine is used to test the wear resistance of label materials. It is mainly used to simulate the degree of wear the label is subjected to in daily use to evaluate the durability and durability of the label.

The label wear testing machine usually adopts a rotary test method, that is, the label sample is fixed on the test machine, and the sample is in contact with the wear material through the rotating device to simulate the friction between the label surface and the object.

In the test process, the test will record the wear of the label sample after a certain number of rotations, such as wear degree, color change, handwriting blur, etc., in order to evaluate the wear resistance of the label.

Label wear testing machine is widely used in label manufacturing, packaging, logistics and other industries, through the wear resistance test of different materials, different processes of labels, can help manufacturers choose the right label materials and production process, improve the quality and durability of labels.

Product application:

The Alcohol Rubber Rubbing Tester is suitable for all kinds of plastic injection, silk screen surface for abrasion test, such as: computer, mobile phone (PDA), MP3, CD/VCD/DVD, cordless telephone, electronic dictionary and other surface and printing surface

Technical parameters:

Specification:	Two axes (can be used as both rubber and alcohol friction, pencil hardness test can also be added)
Test stroke:	10-60mm, adjustable(Manually adjustable)
Speed:	5-60/min, adjustable
Counter:	0-99999999 adjustable
Weight:	50, 100, 200, 300,500g Two each, Can be customized according to user requirements
Voltage:	220V
Machine size:	500300550mm
Accessories:	Alcohol rubbing fixture 2 pcs, rubber rubbing fixture 2 pcs, pencil friction fixture 2 pcs, cotton cloth, eraser 2 pcs

Picture:

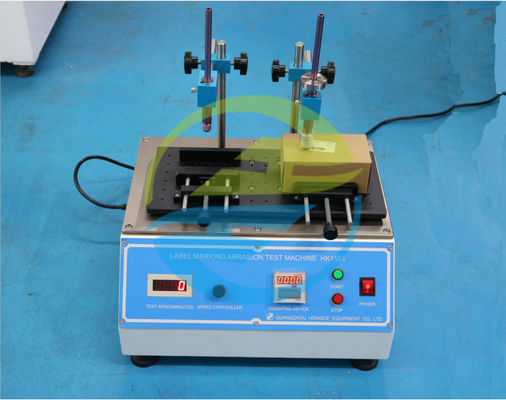

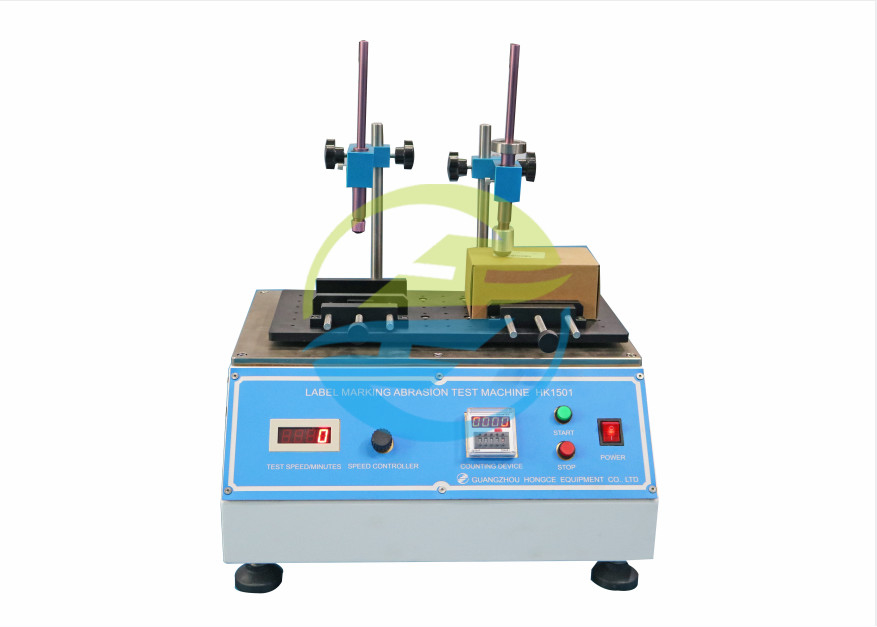

IEC Test Equipment Label Marking Abrasion Testing Equipment Manually Operation 0
