IEC Testing equipment Inductive Load Bank With 3 Test Stations Output Current 60A

IEC Testing equipment Inductive Load Bank With 3 Test Stations Output Current 60A

  • IEC Testing equipment Inductive Load Bank With 3 Test Stations Output Current 60A
  • IEC Testing equipment Inductive Load Bank With 3 Test Stations Output Current 60A
  • IEC Testing equipment Inductive Load Bank With 3 Test Stations Output Current 60A
  • IEC Testing equipment Inductive Load Bank With 3 Test Stations Output Current 60A
IEC Testing equipment Inductive Load Bank With 3 Test Stations Output Current 60A
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HC9951B1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Name: Inductive Load Bank Standard: IEC60884-1, IEC60669-1, Etc
Warranty: 12 Months Output Current: 60A
Output Voltage: 300V Inner Wall Material: Stainless Steel
Station Number: 3 Test Stations Capacitive Load: 70uf, 140uf, And 7.3uf
High Light:

HC9951B1 Iec Test Equipment

,

Plug And Socket Iec Test Equipment

IEC Testing equipment Inductive Load Bank With 3 Test Stations Output Current 60A



Standards:

IEC60669-1 Switches for household and similar fixed electrical installations – Part 1: General requirements;

IEC 60884-1 Plugs and socket-outlets for household and similar purposes – Part 1: General requirements;



Uses:

The switch of fixed electrical devices for household and similar purposes is used for on-off capacity and normal operating life test, and is also suitable for breaking capacity and normal operating life test of household and similar plug sockets.



Structure and function:

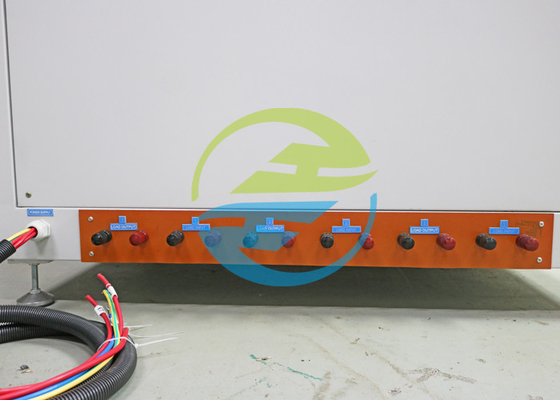

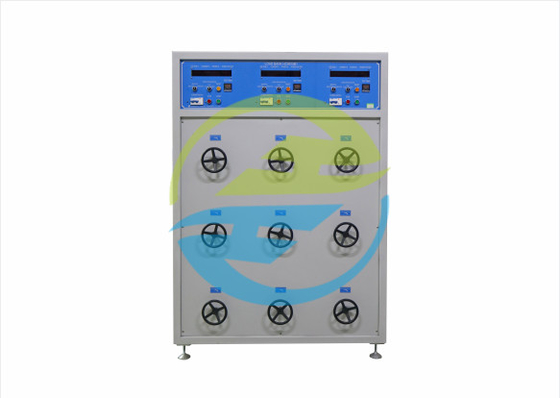

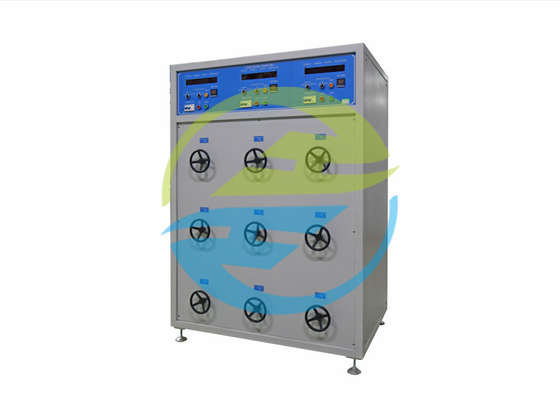

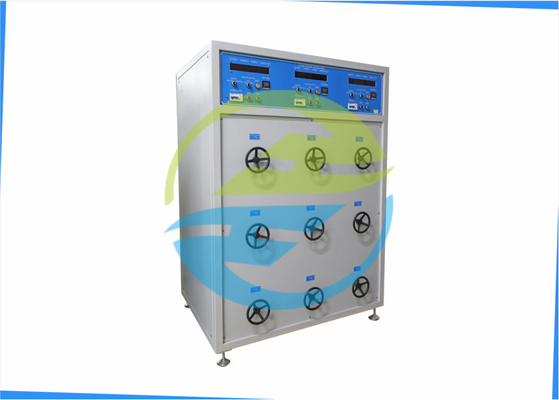

The upper part of the front is the sandblasting operation control panel, on which there are control power switch, product current, voltage and power, power factor display instrument, load power switch, each state indicator light, start and stop button, capacity switch, load type switch and alarm, etc. The lower part corresponds to the voltage output adjusting knob, current adjusting knob and inductance adjusting knob for each circuit. Each load cabinet has a resistive, inductive and capacitive (fluorescent lamp type) load three-in-one function, which can be switched by the transfer switch. The inside of the load cabinet adopts strong wind convection cooling. There is a terminal post below the back of the load cabinet, which can be connected with the switch plug socket life testing machine through the wire, and output current, voltage and power during the detection process.



Sample range:

Switches, plugs, receptacles for household or similar purposes



Technical specification:

Name Result Specification
Station three-position
Digital voltmeter 0 ~ 300V, accuracy ±0.5%
Digital display ammeter 0 ~ 60A, accuracy ±0.5%
Digital display power meter 0 ~ 20KW, accuracy ±0.5%
Digital display power factor meter 0.3 ~ 0.98, accuracy ±0.5%
Mode of loading Resistive, inductive, capacitive three in one, can be switched
Capacitive load 70uf, 140uf, and 7.3uf are optional
Load output Each load output and alternate load output are optional
Counter 0 ~ 999999 times, preset
Load power capacity 3*10KVA
Maximum output current 60A, automatically cut off when it exceeds 62A
Upper output voltage 300V, when more than 305V automatically cut off the load
Atmospheric pressure 80 ~ 106kpa
Temperature 5 ~ 40°C
Humidity (20 ~ 90) %RH
Use place no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas
