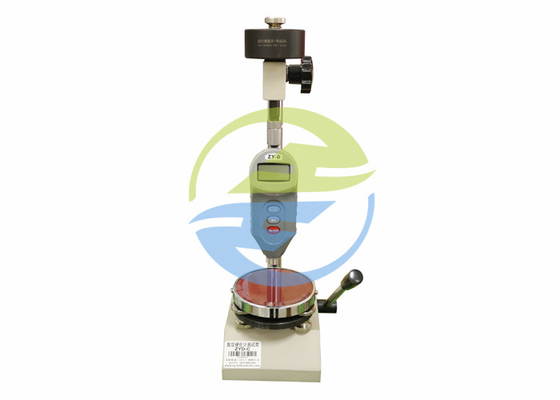

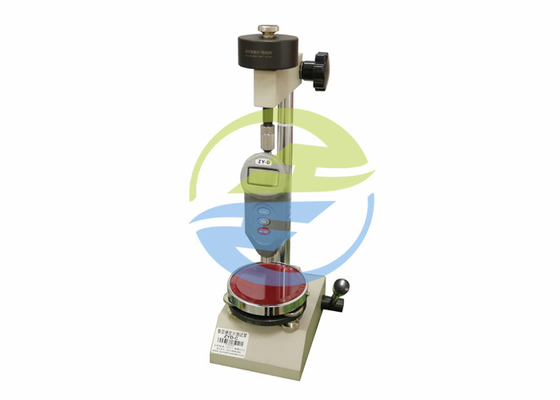

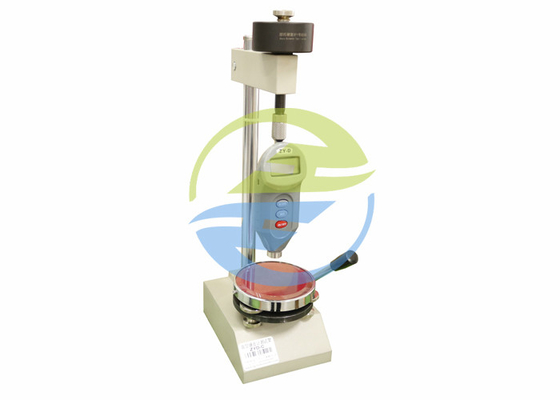

Clause 20 GB/T531-1999 Digital Shore Hardness Gauge Measuring Range 0~100HD

Clause 20 GB/T531-1999 Digital Shore Hardness Gauge Measuring Range 0~100HD

Brand Name: HongCe
Model Number: ZY-D
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 10 set /month
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate (Cost Additional)
Product Name:
Digital Shore Hardness Gauge
Warranty:
1 Year
Power:
3×1.55V Button Battery
Measuring Range:
~100HD
Resolving Power:
0.1HD
Measurement Error:
Within 20~90HD
Ambient Temperature:
0~40℃
Weight:
5KG
Packaging Details:
carton box
Highlight:

100HD Digital Shore Hardness Gauge

,

Clause 20 Digital Shore Hardness Gauge

Product Description

GB/T531-1999 Digital Shore Hardness Gauge Measuring Range 0~100HD



IEC 60335-2-80 Clause 20 stability and mechanical hazards, Shore Hardness' gauge (measurement capability D 60)



Purpose: Shore D hardness tester is applicable to the hardness measurement of hard plastics (such as thermoplastic, hard resin, nylon and plexiglass), hard rubber and other related chemical products (such as anti-corrosion materials, flame retardant materials, paints, etc.).

Executive standard: GB/T531-1999, etc;

Instrument features:

  • it has the functions of maximum value latch, average value automatic calculation and undervoltage alarm
  • connect with the company's RS232 communication cable and be able to communicate with the computer
  • with automatic shutdown function
  • power supply: 3×1.55V button battery

Main parameters:

Model ZY-D
Measuring Range 0~100HD
Resolving Power 0.1HD
Measurement Error Within 20~90HD, the error is≤±1HD
Ambient Temperature 0~40℃
Power Supply 3×1.55V button battery, 4.5V AC / DC power adapter
Overall Dimension 173×56×42mm
Weight 5KG
