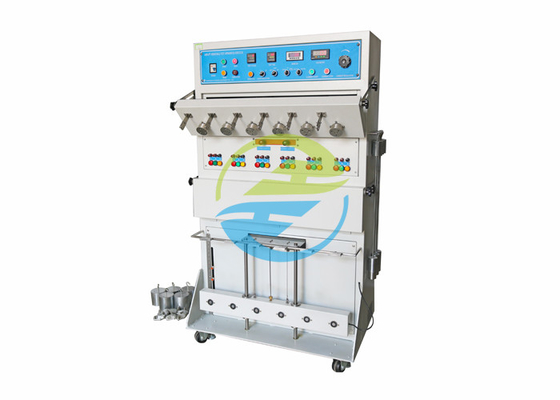

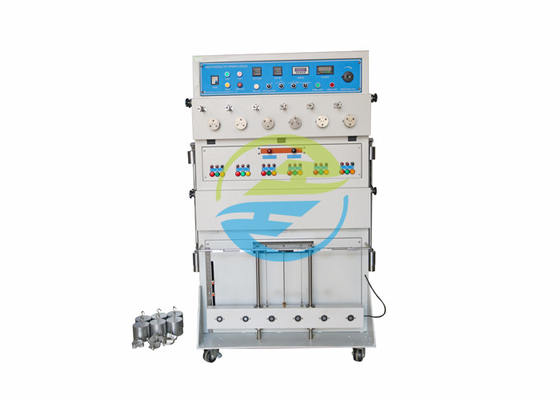

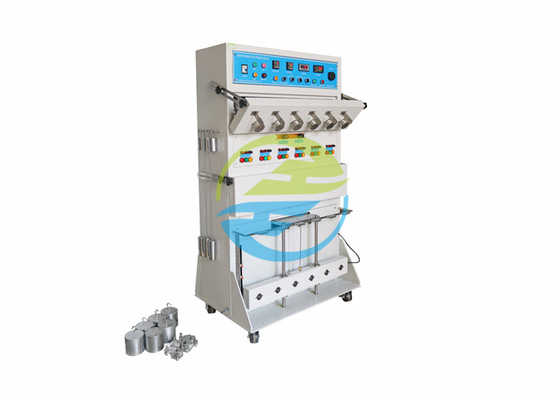

UL817 Cable Testing Equipment Abrupt Pull Test Apparatus With 6 Working Stations

UL817 Cable Testing Equipment Abrupt Pull Test Apparatus With 6 Working Stations

UL817 Cable Testing Equipment Abrupt Pull Test Apparatus With 6 Working Stations
UL817 Cable Testing Equipment Abrupt Pull Test Apparatus With 6 Working Stations
UL817 Cable Testing Equipment Abrupt Pull Test Apparatus With 6 Working Stations
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HDX1314
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Standard: UL817 Stations: 6
Load Current: 0~40A , Arbitrary Adjustable Load Voltage: 4~12V
Warranty: 1 Year Ambient Temperature: 0~40℃
Ambient Humidity: Less Than 85%Rh Test Time: 0.1~999.9S
High Light:

UL817 Cable Testing Equipment

,

6 Working Stations Cable Testing Equipment

UL817 Cable Testing Equipment Abrupt Pull Test Apparatus With 6 Working Stations



UL817:

96.4 Each molded-on representative device is to be secured in the jaws of the flexing machine so that the point of cord exit is at the center of rotation. The rotating jaws are to be adjusted to rotate to an angle of 90° to each side of the centered position. At the centered position, the cord is to hang vertically and the weight, selected in accordance with 96.3, attached to each cord approximately 1 2 inches (305 mm) from the point of rotation. See Figure 96.1 .
96.5 Each representative device is to be subjected to complete flexing cycles until a conductor in each device has opened (as determined by a continuously-monitoring detection circuit), or until 2,500 cycles is reached, whichever comes first. A flexing cycle consists of: rotation of the jaws from the vertical (centered) position until 90° to one side, back past the vertical position until 90° to the other side, and back to the vertical (centered) position. The rate of testing shall be 1 0 cycles per minute.



Description:

This device is used for the resistance abrupt pull test of Plug of plug power line, torsion test, load test and grounding current test.

According to the standard UL817 clause 96.4-96.5 Flexing test, clause 99.1-99.2 Abrupt Pull Test, clause 100.1-100.3 Jacket retention test.



Test sample: Plug power line.



Feature: Using automatic mode test, it will automatic shutdown when reach to the setting number if test times or setting time.



Technical parameters:

Power supply AC 220V 50Hz
Load current 0~40A , Arbitrary adjustable
Load voltage 4~12V
Working station 6 stations
Test times 1~9999 times, can be preset
Test time 0.1~999.9S
Load weight 2.5 pound(lb) , 3 pound(lb) , 15 pound(lb) 6 pcs per each
Ambient temperature 0~40℃
Ambient humidity less than 85%Rh
Reference standard

UL817 clause 96.4-96.5 Flexing test,

clause 99.1-99.2 Abrupt Pull Test,

clause 100.1-100.3 Jacket retention test



UL817 Cable Testing Equipment Abrupt Pull Test Apparatus With 6 Working Stations 0
