Movable Vertical Drop Rain Testing Machine For IPX1 IPX2 Waterproof Test IEC60529

Detail Information

Place of Origin:

China

Certification:

Third Party Calibration Certificate(cost additional)

Drop Test Area:

L*W*H=1000×600mm

Drop Height:

200mm～1650mm

Water Flow:

1+0.05 0mm/min Or 3+0.05 0mm/min

Water Hole:

Φ0.4mm

Packaging Details:

Plywood

Highlight:

Product Description

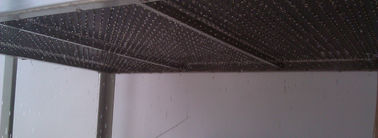

Movable Vertical Drop Rain Testing Machine For IPX1 IPX2 IEC60529

Products introduction

This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured

in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2.

The rise and fall of the drip box is controlled by the motor. It is equipped with the rotatable objective table

whose rotating speed is 1r/min for IPX1 test; It is also equipped with 15°bevel for supporting sample for

the IPX2 test. What’s more, this device is with the clean water filtration unit which can prevent pinhole

from jamming.

Technical parameters

No.	Item	Parameter
1	Power supply	Single phase AC220V,50Hz or 110V, 60Hz
2	Water supply	Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
3	Water tank size	LWH=1100×800×350mm
4	Drop test area	LWH=1000×600mm,customizable
5	Drop height	200mm～1650mm adjustable
6	Water flow	1+0.05 0mm/min or 3+0.05 0mm/min (Switchable)
7	Water hole	Φ0.4mm
8	Distance between holes	20mm
9	Diameter of rotary table	Φ600mm
10	Rotating speed of the rotary table	1r/min
11	Load bearing of the rotary table	≤150㎏electrical equipment (without rotary column)
12	15°bevel for supporting sample	15°bevel
13	Site requirements	Dedicated IP waterproof test room,The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment
14	The area	LWH=1500mm×1500mm×2650mm,the size can be customized by the customers’ need.
