IEC60335-1 Clause 14 High Voltage Impulse Generator Voltage Waveform Peak 0.2~12.5kV

IEC60335-1 Clause 14 High Voltage Impulse Generator Voltage Waveform Peak 0.2~12.5kV
IEC60335-1 Clause 14 High Voltage Impulse Generator Voltage Waveform Peak 0.2~12.5kV IEC60335-1 Clause 14 High Voltage Impulse Generator Voltage Waveform Peak 0.2~12.5kV IEC60335-1 Clause 14 High Voltage Impulse Generator Voltage Waveform Peak 0.2~12.5kV

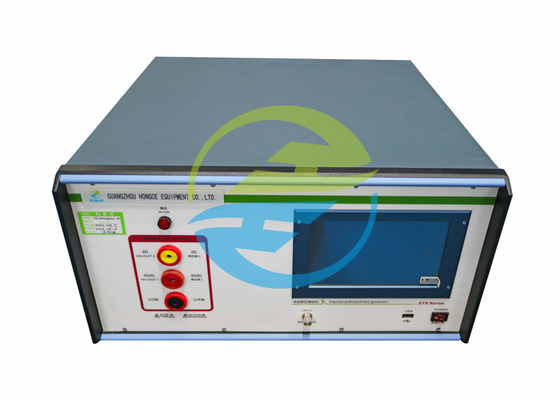

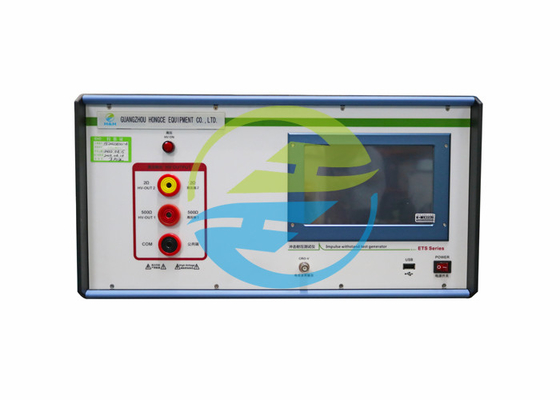

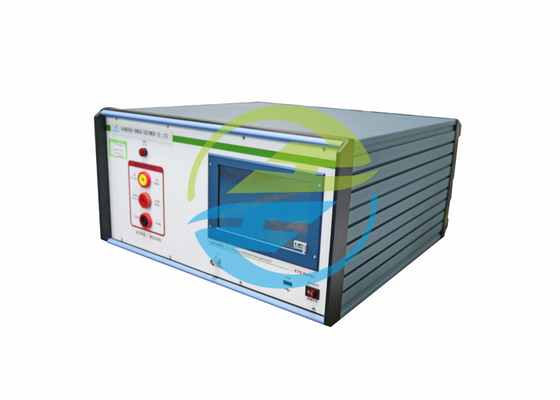

Large Image :  IEC60335-1 Clause 14 High Voltage Impulse Generator Voltage Waveform Peak 0.2~12.5kV

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HJ0602

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton box
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 10 sets per month
Detailed Product Description
Output Voltage: 12kV (Max) ±5% Voltage Waveform Peak: 0.2~12.5kV
Surge Number: 1~9999 Times Surge Interval Time: 3~99 Seconds
Output Resistance: 2Ω, 500Ω±10% Impact Cycles: 1-9999
Surge Generator: 1.2/50 Microsecond Application: Impulse Voltage Test
High Light:

Clause 14 High Voltage Impulse Generator

,

IEC60335-1 High Voltage Impulse Generator

,

12.5kV High Voltage Impulse Generator

IEC60335-1 Clause 14 High Voltage Impulse Generator, Voltage Waveform Peak 0.2~12.5kV



The high voltage impulse generator generates high voltage impulse during operation. For your safety, please read this manual and use the device correctly. Please pay attention to the following points during use:

(1) Do not use the device when the hands are wet or the relative humidity exceeds 75%.

(2) Since a high voltage impulse is applied to the terminal (Surge out), if want to change the wiring, it is necessary to confirm that the high voltage power supply is off (the HV.POW lamp is off).

(3) The operation must strictly follow the instructions for use.

(4) Do not eat during operation to prevent accidental food blockage caused by electric shock.

(5) This equipment uses a vacuum contactor to generate voltage impulse. In order to ensure the life of the vacuum switch, do not turn on the high voltage when the equipment is not tested. In particular, do not continuously trigger the vacuum contactor under high pressure.

(6) With high voltage inside, do not disassemble or open the case.             IEC Test Equipment



Standard: Conforms to IEC60335-2-6 clause 14,clasue 16,IEC60335-2-9 clause 14,IEC60335-1 clause 14, IEC 60950-1:2013 clause 2.10.3.9, reference 2 of table N.1 and etc., IEC 60898-1 clause 9.7.

Feature:

7-inch touch LCD interface, rich in functions, easy to operate, easy to upgrade software                           IEC Test Equipment

Intelligent programmable high voltage power supply, built-in high voltage over voltage, over current and short circuit protection

Output intelligent detection, voltage error, no output warning

Parameters:

Output voltage 12kV (Max) ±5%

Impulse wavefront time:
Impulse wavefront time:


Impulse wavefront time:



1.2μs ±30%                  IEC Test Equipment
Half value of after wave time 50μs ±20%
Capacitance 0.8U
Output polarity Positive, negative, positive and negative cycle
Output resistance (optional) 2Ω, 500Ω±10% 12Ω, 500Ω±10%
Impact mode Automatic or manual
Impact cycles 1-9999
Impact interval time 3-999s(3s of which is the inherent charging time of the device)
Power source AC220±10%, 50/60Hz
Dimension 470mm×260mm×500mm
Weight 30kg                 IEC Test Equipment

Pulse generating unit equivalent circuit:

IEC60335-1 Clause 14 High Voltage Impulse Generator Voltage Waveform Peak 0.2~12.5kV 0

Output waveform definition Voltage wave

Leading edge time: T1=1.67T=1.2μs±30%

Half-peak time: T2=50μs±20%                                              IEC Test Equipment
