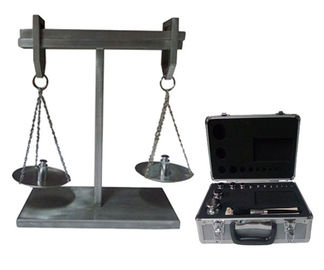

Insulated PVC Cable Wire High Temperature Pressure Test device With Stainless Steel Bracket VDE0472

Insulated PVC Cable Wire High Temperature Pressure Test device With Stainless Steel Bracket VDE0472

  • Insulated PVC Cable Wire High Temperature Pressure Test device With Stainless Steel Bracket VDE0472
  • Insulated PVC Cable Wire High Temperature Pressure Test device With Stainless Steel Bracket VDE0472
  • Insulated PVC Cable Wire High Temperature Pressure Test device With Stainless Steel Bracket VDE0472
  • Insulated PVC Cable Wire High Temperature Pressure Test device With Stainless Steel Bracket VDE0472
Insulated PVC Cable Wire High Temperature Pressure Test device With Stainless Steel Bracket VDE0472
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HTI-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Carton Box
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 100 sets / month
Contact Now
Detailed Product Description
Blade Width: 0.70 ± 0.01mm Material: Stainless Steel
Specimen Support Plane: One Of Each 0 °, 90 °, 120 ° Standard: VDE0472
High Light:

iec tester

,

laboratory test equipment

Insulated PVC Cable Wire High Temperature Pressure Test device





Product details:



The test equipment is designed and manufactured according to standard VDE0472, GB/T 2951 and etc.. The high temperature pressure test project applies to PVC insulated and sheathed wire and cable products, it is used to test the heat-resistance, pressure-resistance and deformation-resistance capacity. The test insulated cores can be circular, fan-shaped, and parallel cords.
For the sample thickness (insulation or jacket) is less than 0.4MM,  do not recommend this test method.
To complete high temperature pressure test project, this test equipment requires to work with : Natural ventilation aging (electric oven) chamber, high temperature pressure test equipment, measuring projector or reading microscope.



Technical parameters:

Blade width 0.70 ± 0.01mm
Specimen support plane 0 °, 90 °, 120 ° of each one, can be replaceable
Bracket Made of smooth stainless steel

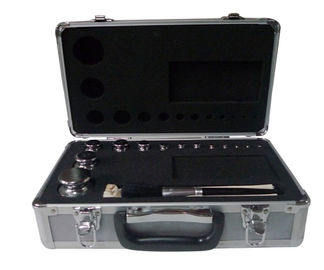

Load weight Consist of a rectangular knife , weights and weight tray, the rectangular knife is 34g , the eight tray is 36g, with 2 sets of standard 1 ~ 1kg standard class M1 weights



Insulated PVC Cable Wire High Temperature Pressure Test device With Stainless Steel Bracket VDE0472 0
