IEC60730-1 Label Marking Abrasion Test Machine With Φ65*7.5mm Friction Wheel

IEC60730-1 Label Marking Abrasion Test Machine With Φ65*7.5mm Friction Wheel

Brand Name:	HongCe
Model Number:	IN-2
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Standard:

IEC60730-1

Brass Washer:

Φ60*2.5mm

Friction Wheel:

Φ65*7.5mm

Sliding Weight:

500g

Test Times:

1~999999

Warranty:

1 Year

Size:

640*340*270mm(L*W*H)

Test Stroke:

20mm

Packaging Details:

plywood

Highlight:

Label Marking Abrasion Test Machine

Friction Wheel Abrasion Test Machine

IEC60730-1 Abrasion Test Machine

Product Description

48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke

IEC60730-1 Annex A

A.1.3 Markings which are mandatory within the requirements of this standard and which are accessible to the final user of the equipment after the control is mounted or installed as for normal use. IEC Test Equipment
These markings, in addition to being resistant to the handling, etc., described in A.1.2, have also to withstand the rubbing and handling expected during the use of the equipment.
Markings on knobs, etc., shall survive the continual handling and rubbing as a result of manual actuation. Other markings should be resistant to cleaning, polishing and the like. IEC Test Equipment
A.1.4 Compliance with the requirements for indelibility of markings classified according to A.1.2 and A.1.3 of this annex A is checked by the tests of A.2 or A.3 of annex A using the apparatus shown in figure 8.

Production introduction:

This testing apparatus is design and manufactured according to IEC60730-1 standard figure 8 and annex A requirements, used for testing the controller marking durability performance. IEC Test Equipment

The apparatus comply with the dimensions requirements of IEC 60730-1 Figure 8. Test times can be set from 1 to 999999 (default as 12 times), test rate 48 rpm. It is a easy operated professional equipment.

Main technical parameters:

Equipment	Markings durability tester
Test station	1 station
Test stroke	20mm
Test rate	48rpm IEC Test Equipment
Test times	1~999999, default as 12times
Sliding weight	500g. Strip weight 250g, with weight 750g
Brass washer	Φ60*2.5mm
Friction wheel	Φ65*7.5mm
Power supply	220VAC 50Hz IEC Test Equipment
Standard	IEC 60730-1 Figure 8, Annex A

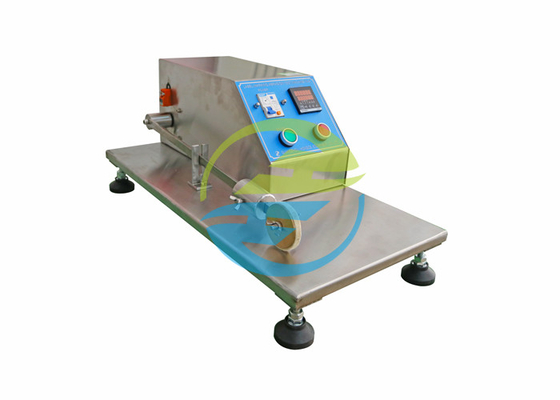

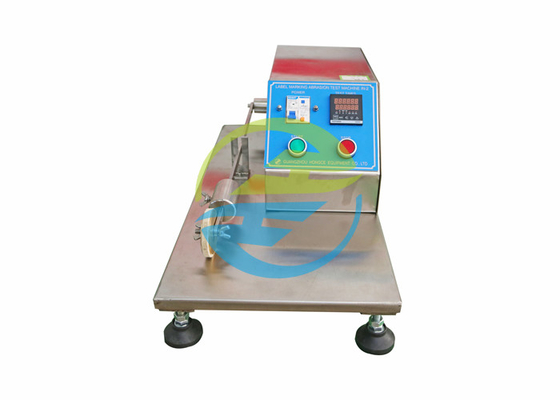

Picture for reference:

IEC60730-1 Label Marking Abrasion Test Machine With Φ65*7.5mm Friction Wheel 0
