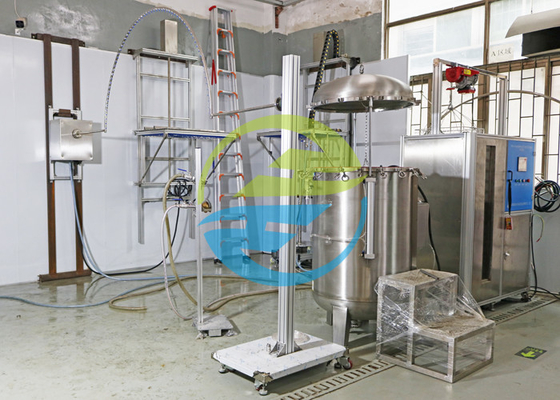

IEC 60529 IPX1 To IPX8 Waterproof Ingress Protection Test Equipment 500L Water Tank

IEC 60529 IPX1 To IPX8 Waterproof Ingress Protection Test Equipment 500L Water Tank

IEC 60529 IPX1 To IPX8 Waterproof Ingress Protection Test Equipment 500L Water Tank
IEC 60529 IPX1 To IPX8 Waterproof Ingress Protection Test Equipment 500L Water Tank
IEC 60529 IPX1 To IPX8 Waterproof Ingress Protection Test Equipment 500L Water Tank
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HH0820
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 1 set per month
Contact Now
Detailed Product Description
IPX1~2 Dripping Aperture: Φ0.4mm IPX1~2 Hole Distance: 20mm
IPX3~4 Pressure Gauge: 0~0.25MPa IPX5~6 Nozzle Diameter: 6.3mm/12.5mm
Water Tank Volume: 500L Controller: PLC
IPX7 Lifting Distance: 0~1200mm IPX8 Maximum Limit Pressure: 6 Bar
High Light:

Waterproof Ingress Protection Test Equipment

,

IEC 60529 Ingress Protection Test Equipment

,

IPX8 Ingress Protection Test Equipment

IEC 60529 IPX1 To IPX8 Waterproof Ingress Protection Test Equipment, 500L Water Tank​



Nowadays, there are more and more electronic products used outdoors, and waterproof test is a very important link for products, because only after waterproof test can we have a basis to judge whether the products manufactured by the factory can still maintain stable performance in outdoor harsh conditions. Therefore, IP waterproof grade test is an essential project.
The waterproof test is mainly applicable to the shell protection grade test (IP waterproof grade test) of products in the fields of electronics and electricians, lamps, electric cabinets, electronic components, automobiles, transportation, external devices and so on. Judge whether the performance of the product meets the requirements of relevant standards through verification, so as to facilitate the design, improvement, verification and delivery inspection of the product.            Ingress Protection Test



Standard:

IEC60529 degree of protection provided by enclosures (IP Code), clause 14.2.1, 14.2.2, 14.2.3, 14.2.4, 14.2.5, 14.2.6, 14.2.7, 14.2.8, and figure 3, figure 4, figure 5 and figure 6, IPX1, IPX2, IPX3, IPX4, IPX5 IPX6, IPX7 and IPX8, Table 3.



Application:

It is used to test the degrees of protection against ingress of water indicated by the second characteristic numeral. Ingress Protection Test Equipment



Second

characteristic

numeral

Degree of protection

Test

conditions, see

Brief description Definition
0 Non-protected - -
1 Protected against vertically falling water drops Vertically falling drops shall have no harmful effects 1 4.2.1
2 Protected against vertically falling water drops when enclosure tilted up to 1 5°

Vertically falling drops shall have no

harmful effects when the enclosure is tilted at any angle up to 1 5° on either side of the vertical

1 4.2.2
3 Protected against spraying water Water sprayed at an angle up to 60° on either side of the vertical shall have no harmful effects 1 4.2.3
4 Protected against splashing water Water splashed against the enclosure from any direction shall have no harmful effects 1 4.2.4
5 Protected against water jets Water projected in jets against the enclosure from any direction shall have no harmful effects 1 4.2.5
6 Protected against powerful water jets Water projected in powerful jets against the enclosure from any direction shall have no harmful effects 1 4.2.6
7 Protected against the effects of temporary immersion in water Ingress of water in quantities causing harmful effects shall not be possible when the enclosure is temporarily immersed in water under standardized conditions of pressure and time 1 4.2.7
8 Protected against the effects of continuous immersion in water

Ingress of water in quantities causing

harmful effects shall not be possible when the enclosure is continuously immersed in water under conditions which shall be agreed between manufacturer and user but which are more severe than for numeral 7

1 4.2.8
9

Protected against high pressure and temperature

water jets

Water projected at high pressure and high temperature against the enclosure from any direction shall not have harmful effects 1 4.2.9

Table 3 – Degrees of protection against water indicated by the second characteristic numeral

Parameter:

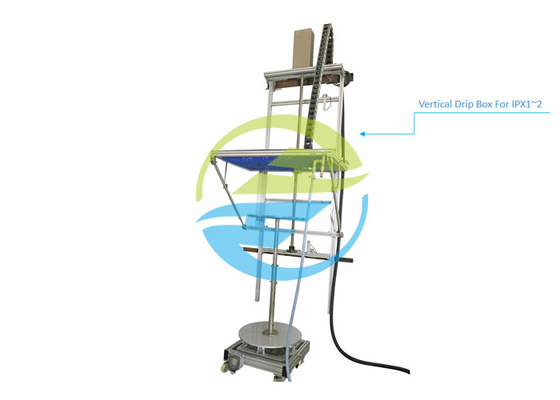

1. Protected against vertically falling water drops
Application Applies to conduct IPX1, IPX2 testing.
Rain area 1000mmX600mm
Tank material Stainless steel
Dripping aperture Φ0.4mm
Hole distance 20mm
Rainfall Flow 1mm/Min, 3mm/Min, user-set parameters (error: + 0.5mm / min).
Water dripping height 200mm (automatically control by the test equipment)
Test time 10Min, can be set according to the need
Draining Automatically emptying the tank water after the test is completed
Body material Industrial aluminum alloy
Dimensions (LxDxH) 1100X1200X2600mm
Machine structure Wall Mount
Air compressor (Optional, not included) Silent air compressor
2. Protected against spraying and splashing water (oscillating tube)
Application Applies to conduct IPX3, IPX4 testing.
Water supply

Water flow rate>10L/min±5% clean water without inclusion.

This device is equipped with clean water filtration unit

The size of the oscillating tube

Standard coming with R400, R600, R800 oscillating tubes

(other size R200,R1000,R1200,R1400,R1600mm can be optional), stainless steel

Water hole Φ0.4mm. Ingress Protection Test Equipment
Included angle of two holes IPX3: 120°; IPX4: 180°
pendulum angle IPX3: 120°; IPX4: 360°
Raining speed

IPX3: 4s/time(2×120°);

IPX4: 12s/time(2×360°);

Water flow Can be set according to the size of the pendulum and the number of the pin holes (0.07 L/minX per hole)
Testing time 0.01S~99 hours 59mins,can be preset
Pressure gauge 0~0.25MPa
Site requirements

Dedicated IP waterproof test room, The ground should be flat with illumination

10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation

The area According to the oscillating tube chose
3. Protected against spraying and splashing water (Spray Nozzle)
Water supply Water flow rate is 50~150kpa clean water without inclusion.
Spray nozzle parameters

external diameter: Ф102mm

spherical diameter: SФ75.5mm

There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is 30°. There are 96 holes in the external circle of holes of which the included angle is 15°. 121 holes in total.

The hole diameter: Ф0.5mm

It is made of brass.

Water flow 10L/min±5%, Flow meter is adjustable
Range of pressure gauge 0~0.4Mpa
Baffle removable
Pressure gauge 0~0.25MPa
4. Protected against water jets and powerful water jets
Application Applies to conduct IPX5, IPX6 testing.
Water supply

IPX5: Water flow rate > 12.5L/min±5%;

IPX6: Water flow rate >100L/min±5%;

It can be achieved by the stainless steel water tank and pressurized equipment

The nozzle diameter IPX5: Ф6.3mm; IPX6: Ф12.5mm
Water flow IPX5: 12.5±0.625L/min, IPX6: 100±5 L/min; Flow meter is adjustable
The distance from jet nozzle to enclosure 2.5~3m
Testing time Not less than 1min/m²(not less than 3 mins)
Pressure gauge 0~0.25MPa
5. Protected against the effects of temporary immersion in water and electrical control cabinet
Applicable

(a) Water supply for IPX1~IPX6 waterproof test

(b) IPX7 water immersion test

(c) Water storage for IPX8 water tightness test

(d) Automatic control for the whole waterproof equipment

Water storage tank

It is applicable to water storage of IPX5~IPX6 strong water spray test, water injection of IPX8, IPX7 immersion

Volume:500L

Dimension: W600mmXD660mmXH1300mm

Observation window: toughened glass window

Observation window dimension: W200mmXH1250mm

Depth gauge: stainless steel

Depth gauge height: 1200mm, accuracy 1mm

Liquid level control: float switch + overflow pipe

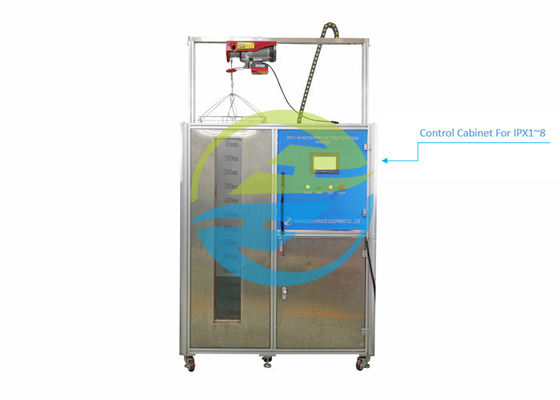

Control Cabinet

Flow detection: flow signal feedback through electronic flowmeter

Flow setting: set on touch screen

Controller: PLC

Control Function: constant flow water supply, constant pressure water supply, and test time control.

Protection function: leakage protection, overload protection, short circuit protection

IPX7 immersion automatic lift bracket

Lifting distance: 0~1200mm

Bracket dimension: L400mmXW400mm

Bracket load weight: 50Kg

6. Protected against the effects of continuous immersion in water
Application Applies to conduct IPX8 testing.
Pressure vessel Stainless steel tank, diameter 0.8 meter, height 1 meter
Pressure adjustment range 0 ~ 6bar (can be customized)
Pressure system Stainless steel pump + frequency converter
Pressure gauge accuracy 0.25 degree, range: 10bar
Testing time 0-99min
Maximum limit pressure 6 bar
Pressure protection Pressure switch protection
7. Turntable
Turntable diameter Ø600mm
Sample holder Ø600mm
Turntable speed 1-5 rpm, adjustable
Tiltable angle 15°
Test angle of rotation 90° , continuous rotation
Adjustable height of the adjustable telescopic tube 300mm, 1200mm-1500mm
Body material Industrial aluminum alloy
