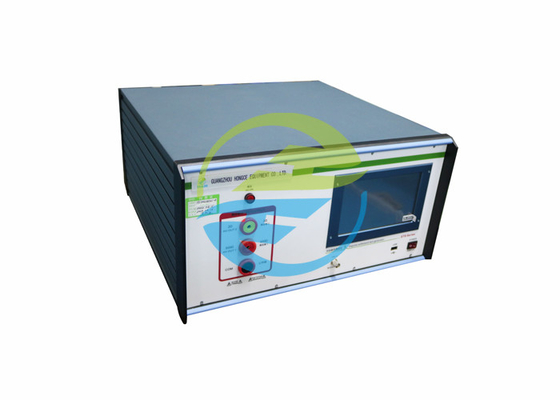

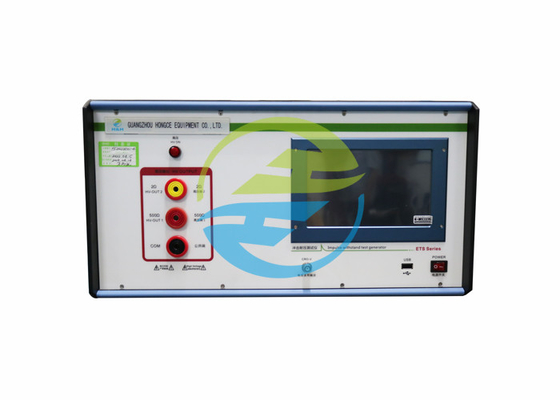

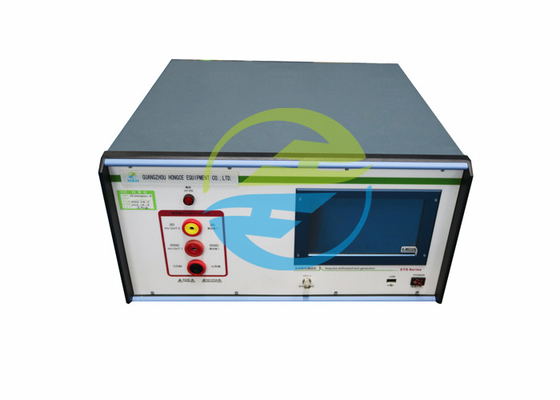

IEC60335-1 Clause 14 High Voltage Impulse Generator With Wave Shape 1,2/50 µS

Brand Name:	HongCe
Model Number:	HJ0602
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Output Voltage:

12kV (Max) ±5％

Impulse Wavefront Time:

1.2μs ±30％

Half Value Of After Wave Time:

50μs ±20％

Capacitance:

0.8U

Output Resistance:

2Ω, 500Ω±10％

Impact Cycles:

1-9999

Power:

220V, 50/60Hz

Application:

Impulse Voltage Test

Packaging Details:

Carton box

Highlight:

Clause 14 High Voltage Impulse Generator

IEC60335-1 High Voltage Impulse Generator

Product Description

IEC60335-1 Clause 14 High Voltage Impulse Generator With Wave Shape 1,2/50 µs

IEC60335-1 Clause 14 Transient overvoltages
Appliances shall withstand the transient over-voltages to which they may be subjected.
Compliance is checked by subjecting each clearance having a value less than those specified in Table 16 to an impulse voltage test.
The impulse test voltage has a no-load wave shape corresponding to the 1,2/50 µs standard impulse specified in IEC 61180. The impulse test voltage is applied three times for each polarity with intervals of at least 1 s. IEC Test Equipment

Standard: Conforms to IEC60335-2-6 clause 14,clasue 16,IEC60335-2-9 clause 14,IEC60335-1 clause 14, IEC 60950-1:2013 clause 2.10.3.9, reference 2 of table N.1 and etc., IEC 60898-1 clause 9.7.

Feature:

7-inch touch LCD interface, rich in functions, easy to operate, easy to upgrade software IEC Test Equipment

Intelligent programmable high voltage power supply, built-in high voltage over voltage, over current and short circuit protection

Output intelligent detection, voltage error, no output warning

Parameters:

Output voltage	12kV (Max) ±5％
Impulse wavefront time: Impulse wavefront time: Impulse wavefront time:	1.2μs ±30％ IEC Test Equipment
Half value of after wave time	50μs ±20％
Capacitance	0.8U
Output polarity	Positive, negative, positive and negative cycle
Output resistance (optional)	2Ω, 500Ω±10％	12Ω, 500Ω±10％
Impact mode	Automatic or manual
Impact cycles	1-9999
Impact interval time	3-999s(3s of which is the inherent charging time of the device)
Power source	AC220±10％, 50/60Hz
Dimension	470mm×260mm×500mm
Weight	30kg IEC Test Equipment

Pulse generating unit equivalent circuit:

IEC60335-1 Clause 14 High Voltage Impulse Generator With Wave Shape 1,2/50 µS 0

Output waveform definition Voltage wave

Leading edge time: T1=1.67T=1.2μs±30%

Half-peak time: T2=50μs±20% IEC Test Equipment

IEC60335-1 Clause 14 High Voltage Impulse Generator With Wave Shape 1,2/50 µS 1

IEC60335-1 Clause 14 High Voltage Impulse Generator With Wave Shape 1,2/50 µS 2
