IEC 60529 Diameter 12.5mm Rigid Sphere Probe With Force Of 10N-50N IP First Characteristic Numeral 2

Brand Name:	HongCe
Model Number:	HT-I06T
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Test Sample:

Live Parts Or Mechanical Parts

Color:

White

Force:

10N, 20N, 30N, 40N, 50N

Test Type:

Rigid Test

Product Name:

Test Probe 2 With Force

Standard:

IEC60529 Of IP2

Application:

IP2X

Steel Ball Diameter:

SФ12.5+0.2

Packaging Details:

Aluminum Box

Highlight:

Diameter 12.5mm Rigid Sphere Probe

IEC 60529 Rigid Sphere Probe

50N Rigid Sphere Probe

Product Description

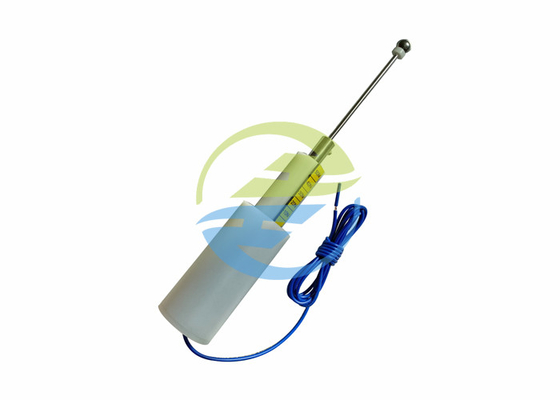

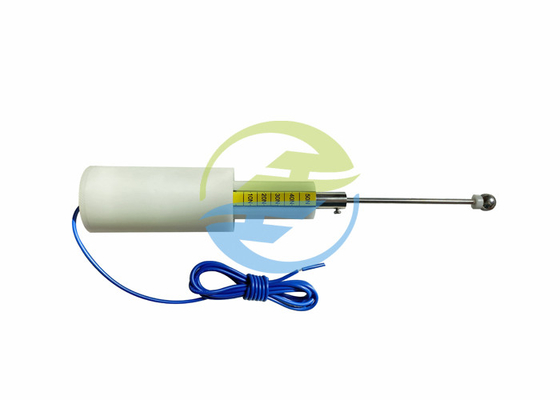

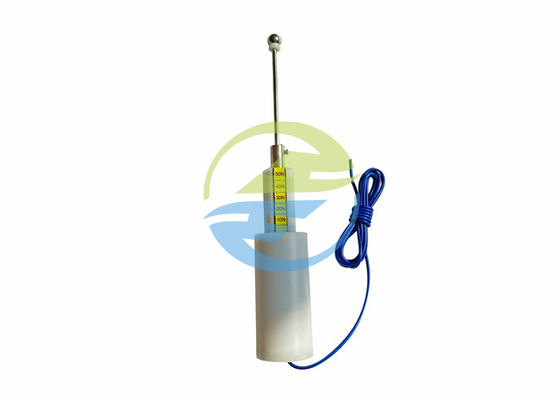

IEC 60529 Diameter 12.5mm Rigid Sphere With Force Of 10N-50N IP, First Characteristic Numeral 2

Standard:IEC61032 figure 6 probe 2,IEC60529 of IP2.

Application:It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 12.5mm or greater. Ingress Protection Test Equipment

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:Steel ball, rigid test. Ingress Protection Test Equipment

Parameters:

Model	HT-I06T
Name	Test probe 2 steel ball with force
Steel ball diameter	SФ12.5+0.2 0
Force	With force of 30N
Applied standard	IEC60529
