IPX3 / IPX4 Ingress Protection Test Equipment

IPX3 / IPX4 Ingress Protection Test Equipment

  • IPX3 / IPX4 Ingress Protection Test Equipment
  • IPX3 / IPX4 Ingress Protection Test Equipment
  • IPX3 / IPX4 Ingress Protection Test Equipment
  • IPX3 / IPX4 Ingress Protection Test Equipment
  • IPX3 / IPX4 Ingress Protection Test Equipment
IPX3 / IPX4 Ingress Protection Test Equipment
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: SN-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plastic Tool Box
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Highlight:

waterproof tester

,

material testing equipment

Handheld Spray Nozzle Ingress Protection Test Equipment IPX5 / IPX6





Product information:

The spray nozzle is designed and manufactured in accordance with IEC60529 clause IPX3 and IPX4. It is used for the waterproof test of the electric appliance. Some parts of the enclosure can not be wet by the oscillating tube. Under this circumstance, the handheld spray nozzle is used by manual.

The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.



Technical parameters:



No.

Item

parameter

1

Water supply

Water flow rate is 50~150kpa clean water without inclusion.

2

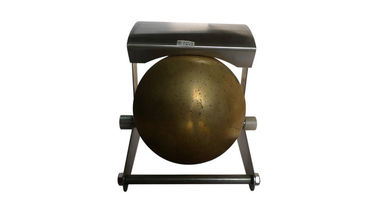

Spray nozzle parameters

external diameter: Ф102mM

spherical diameter: SФ75.5mm

There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is   30°. There are 96 holes in the external circle of holes of which the included angle is 15°. 121 holes in total.

The hole diameter: Ф0.5mm

It is made of brass.

3

Water flow

10L/min±5%,Flow meter is adjustable

4

Range of pressure gauge

0~0.4Mpa

5

Baffle

removable

6

Pressure gauge

0~0.25MPa

7

Site requirements

Dedicated IP waterproof test room,The ground should be flat with illumination

With good function of inflow and drainage. Wall installation





Picture view:

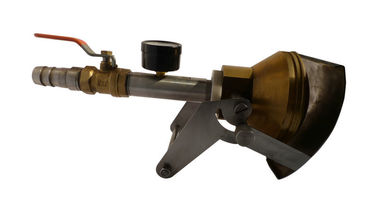

IPX3 / IPX4 Ingress Protection Test Equipment 0

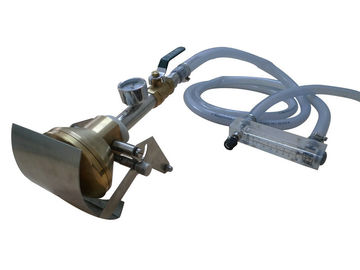

IPX3 / IPX4 Ingress Protection Test Equipment 1
