| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | TUV、ITS、CSA、BV、SGS 、CNAS(cost additional) |
| Model Number: | IB-1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 15 set per month |
| High Light: | environmental test chamber,waterproof tester |
||
|---|---|---|---|

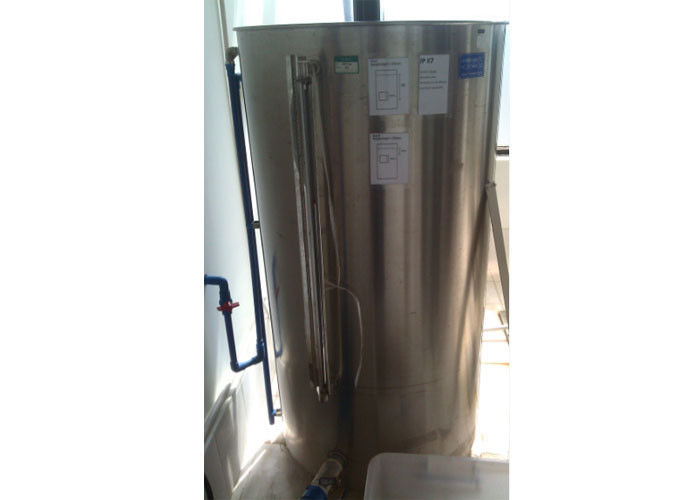

Immersion Box Ingress Protection Test Equipment , Waterproof Tester
Product information:
The immersion box is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX7 and IPX8. It is used for waterproof test of the electric appliance. This immersion box can be customized.
Technical parameters:
|
No. |
Item |
IPX5 |
|
1 |
Water supply |
clean water without inclusion |
|
2 |
Size of the box |
Ф120mm*1350mm,customizable |
|
3 |
Dimension |
Ф120mm*1500mm |
|
4 |
Testing time |
30min,the button is controlled by manual. |
|
5 |
The placement and remove of the sample |
It is controlled by the rope which is driven by the motor |
|
6 |
The height of the water |
The sample whose height is less than 850mm: the water height is more than 1m； The sample whose height is over 850mm: the water height is 150mm+the sample height |
|
7 |
Site requirements |
Dedicated IP waterproof test room with good function of inflow and drainage. Ground installation |
