IEC61032 Figure 7 Device 11 Rigid Test Finger Probe , Test Finger Probe With Force

IEC61032 Figure 7 Device 11 Rigid Test Finger Probe , Test Finger Probe With Force

  • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe , Test Finger Probe With Force
  • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe , Test Finger Probe With Force
  • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe , Test Finger Probe With Force
  • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe , Test Finger Probe With Force
  • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe , Test Finger Probe With Force
  • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe , Test Finger Probe With Force
IEC61032 Figure 7 Device 11 Rigid Test Finger Probe , Test Finger Probe With Force
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: HT-I07
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Aluminum Box
Delivery Time: 7 Days
Payment Terms: T/T
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Standard: IEC61032 Figure 7 Device 11 Model: HT-I07/HT-I07T1/HT-I07T2
High Light:

iec testing equipment

,

iec tester

IEC61032 Figure 7 Device 11 Rigid Test Finger Probe




Products information:

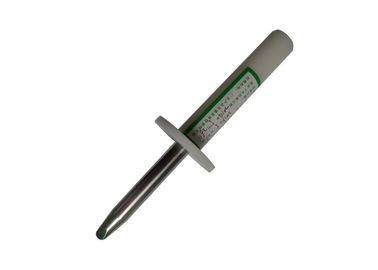

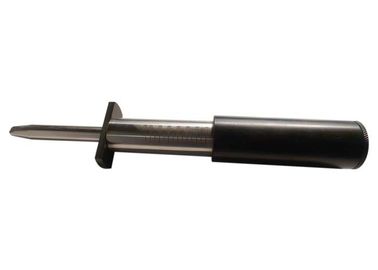

This rigid finger probe conforms to the standard requirement of IEC61032 figure 7 device 11,IEC60884,IEC60598,IEC60335,IEC60065. It is used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strengthen of openings in the enclosure or internal barriers.

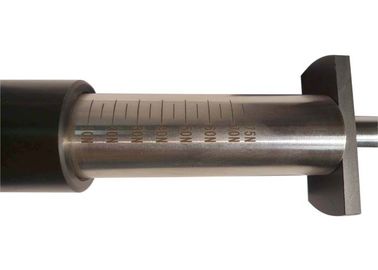

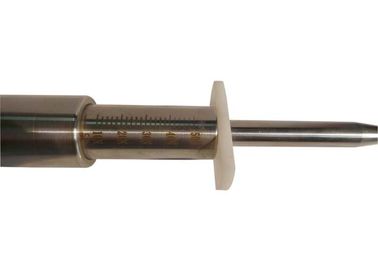

Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.

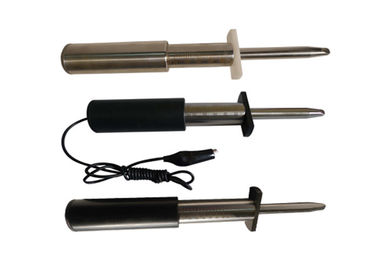

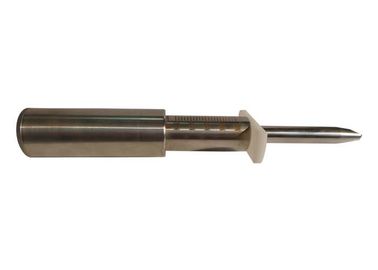

There are two kinds of shell that can be chosen: the nylon shell(for anti-electric shock test) and stainless steel shell(for strength test)





Main specification and corresponding technical parameters:




Parameters /Model

HT-I07

HT-I07T1

HT-I07T2

Name

Test finger

Test finger with 50N force

Test finger with 75N force

1

20 0 -0.05

20 0 -0.05

20 0 -0.05

2

80±0.2

80±0.2

80±0.2

3

R2±0.05

R2±0.05

R2±0.05

4

S4±0.05

S4±0.05

S4±0.05

5

37o  0 -10’

37o   0 -10’

37o   0 -10’

6

14 o  0 -10’

14 o  0 -10’

14 o   0 -10’

7

Ф12 0 -0.05

Ф12 0 -0.05

Ф12 0 -0.05

8

Ф50

Ф50

----

9

5±0.5

5±0.5

----

10

----

0-50N force

0-75N force


IEC61032 Figure 7 Device 11 Rigid Test Finger Probe , Test Finger Probe With Force 0
