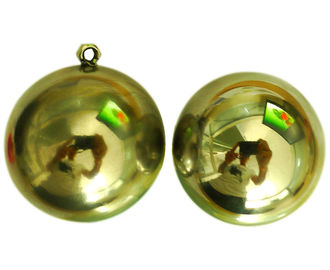

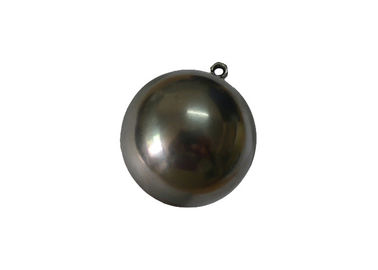

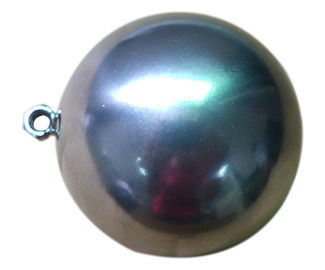

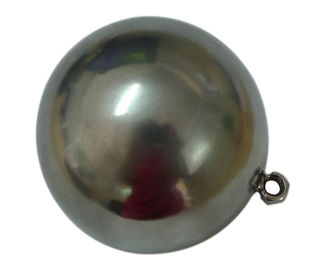

IEC61032 Figure 6 Ingress Protection Test Equipment Sphere Test Probe 1

IEC61032 Figure 6 Ingress Protection Test Equipment Sphere Test Probe 1

  • IEC61032 Figure 6 Ingress Protection Test Equipment Sphere Test Probe 1
  • IEC61032 Figure 6 Ingress Protection Test Equipment Sphere Test Probe 1
  • IEC61032 Figure 6 Ingress Protection Test Equipment Sphere Test Probe 1
  • IEC61032 Figure 6 Ingress Protection Test Equipment Sphere Test Probe 1
  • IEC61032 Figure 6 Ingress Protection Test Equipment Sphere Test Probe 1
IEC61032 Figure 6 Ingress Protection Test Equipment Sphere Test Probe 1
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: HT-I05
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Aluminum Box
Delivery Time: 7 Days
Payment Terms: T/T
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Standard: IEC61032 Figure 5 Test Probe 1 Steel Ball Diameter: SФ50±0.2/SФ50/SФ50.8
Weight: 500±25g/535±25g Feature: Steel Ball
High Light:

environmental test chamber

,

material testing equipment

IEC61032 Figure 6 Sphere Test Probe 1





Product information:

This test sphere probe confirms to IEC61032 figure 5 test probe 1,IEC60335,IEC60950, IEC60598,UL507 standards. It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50mm or greater. It is also regarded as the steel ball for dropping impact test. It can be equipped with a lifting ring, and used for pendulum bob test after hanging with a rope. Steel balls with other diameters can be customized.



Standard:IEC61032 figure 5 test probe 1,IEC60335,IEC60950, IEC60598,UL507.



Application:It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50mm or greater. It is also regarded as the steel ball for dropping impact test. It can be equipped with a lifting ring, and used for pendulum bob test after hanging with a rope. Steel balls with other diameters can be customized.



Test sample:Easily accessible enclosure live parts or mechanical parts.



Feature:Steel ball.

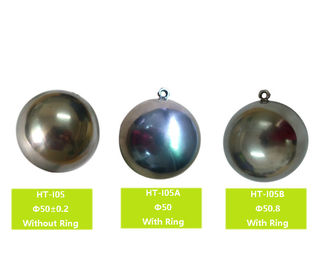

Technical parameters:



Parameters /Model

HT-I05

HT-I05A

HT-I05B

HT-I05C

HT-I05D

Name

Test probe 1steel ball

50mm dropping steel ball

50mm steel ball with ring

50.8mm dropping steel ball

50.8mm steel ball with ring

Sizes

SФ50+0.05  0

SФ50

SФ50

SФ50.8

SФ50.8

Weight

----

500±25g

500±25g

535±25g

535±25g

Standard

IEC61032/GB16842

GB4943

GB4943

UL507

UL507


IEC61032 Figure 6 Ingress Protection Test Equipment Sphere Test Probe 1 0
