Test Rod Probe D Test Finger Probe IEC61032 Figure 4 Safety Testing Apparatus

Brand Name:	HongCe
Model Number:	HT-I04
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Packaging Details:

Aluminum Box

Highlight:

environmental test chamber

material testing equipment

Product Description

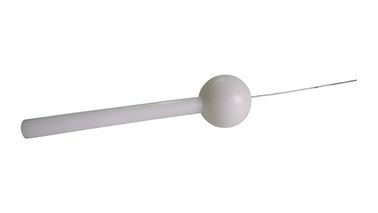

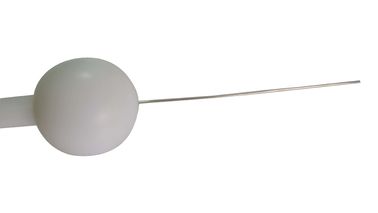

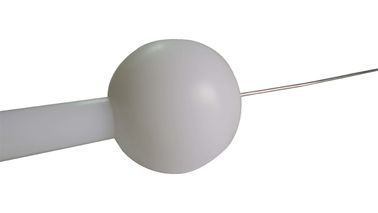

Test Rod Probe D Test Finger Probe IEC61032 Figure 4 Safety Testing Apparatus

Product information:

This probe conforms to the standard requirement of IEC61032 figure 4 test probe D and IEC60529 for IP4 and IEC60065. This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.

Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.

Main specification and corresponding technical parameters:

Parameters /Model	HT-I04	HT-I04T
Name	Test rod probe D	Test rod probe D with force
1	Ф1+0.05 0	Ф1+0.05 0
2	SФ35±0.2	SФ35±0.2
3	Ф10	Ф10
4	100±0.2	100±0.2
5	100	----
6	----	3N force
14	IEC61032.1	IEC60529

Test Rod Probe D Test Finger Probe IEC61032 Figure 4 Safety Testing Apparatus 0
