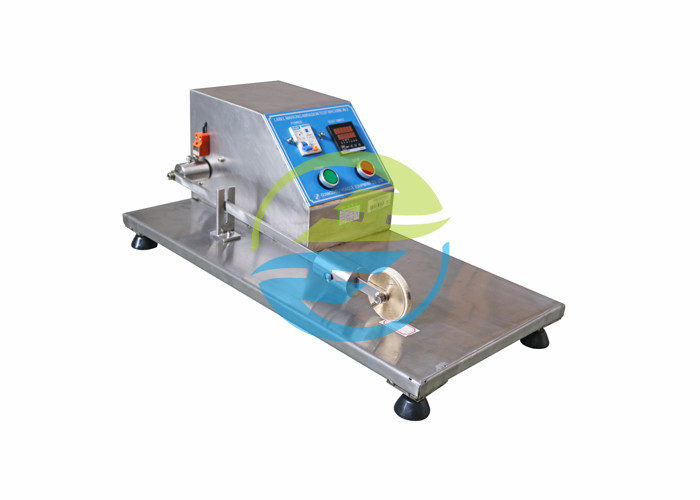

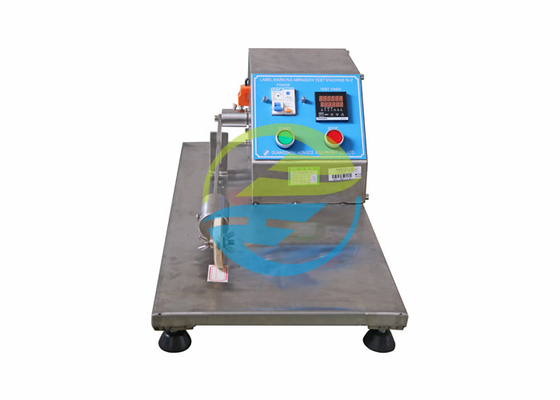

48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke - IEC60730-1

48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke - IEC60730-1

48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke - IEC60730-1
48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke - IEC60730-1
48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke - IEC60730-1
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: IN-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Power: 220VAC 50Hz Standard: IEC60730-1
Brass Washer: Φ60*2.5mm Friction Wheel: Φ65*7.5mm
Test Sample: Label Test Station: 1
Test Stroke: 20mm Test Rate: 48rpm
High Light:

Label Marking Abrasion Test Machine

,

48rpm Abrasion Test Machine

,

IEC 60730-1 Abrasion Test Machine

48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke



A.1 Markings on controls shall be adequately indelible for safety and are therefore classified according to the requirements for indelibility:
A.1.1 Markings which are not mandatory within the requirements of this standard (IEC 60730-1).
A.1.2 Markings which are mandatory within the requirements of this standard but which are not accessible to the final user when the control is mounted or installed in the equipment.                            IEC Test Equipment

These markings have to be sufficiently resistant to removal to withstand the manual handling in the control manufacturer's factory after final inspection, being packed and transported to the equipment manufacturer's factory, and handled during installation. Additionally, the marking shall remain legible in the presence of any vapour or other contaminant likely to be present.                            IEC Test Equipment



Production introduction:



This testing apparatus is design and manufactured according to IEC60730-1 standard figure 8 and annex A requirements, used for testing the controller marking durability performance.              IEC Test Equipment

The apparatus comply with the dimensions requirements of IEC 60730-1 Figure 8. Test times can be set from 1 to 999999 (default as 12 times), test rate 48 rpm. It is a easy operated professional equipment.



Main technical parameters:



Equipment Markings durability tester
Test station 1 station
Test stroke 20mm
Test rate 48rpm                 IEC Test Equipment
Test times 1~999999, default as 12times
Sliding weight 500g. Strip weight 250g, with weight 750g
Brass washer Φ60*2.5mm
Friction wheel Φ65*7.5mm
Power supply 220VAC 50Hz                                   IEC Test Equipment
Standard IEC 60730-1 Figure 8, Annex A



Picture for reference:

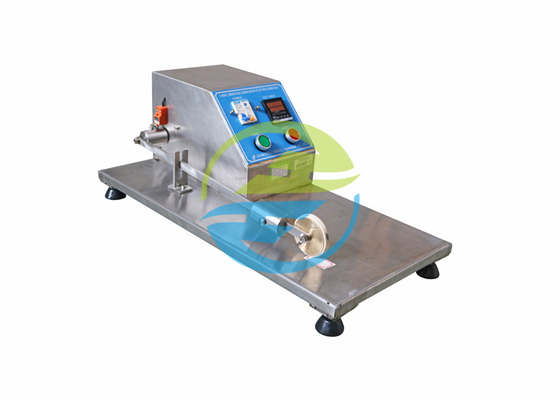

48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke - IEC60730-1 0

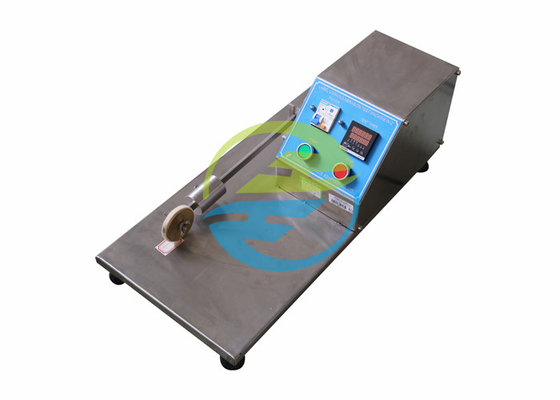

48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke - IEC60730-1 1
