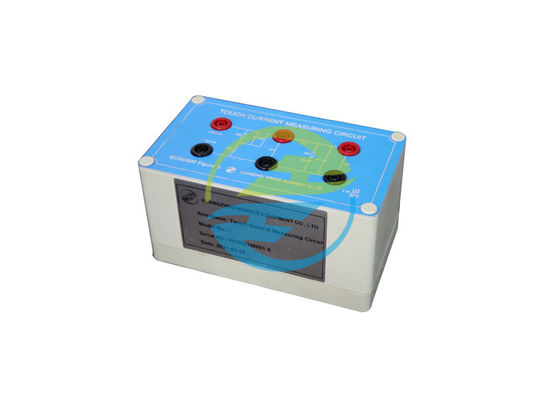

IEC60990 Figure 5 Touch Current Measuring Network Convenient To Use

Brand Name:	HongCe
Model Number:	CT-5
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate(cost additional)

Product Name:

Touch Current Measuring Circuit

Warranty:

1 Year

Standard:

IEC60990

RS:

1500Ω

C2:

0.0062μF

C3:

0.0091μF

R2:

10000Ω

R3:

20000Ω

Packaging Details:

Carton Box

Highlight:

Figure 5 Touch Current Measuring Network

IEC6099 Touch Current Measuring Network

Touch Current Measuring Circuit

Product Description

IEC60990 Figure 5 Touch Current Measuring Network, Convenient to Use

Applicable object:

1. Inspection of electrical products in the national entry exit inspection and Quarantine (commodity inspection) system;
2. The quality inspection department of electrical products under the state quality and technical supervision;
3. Electrical products certification institutions in Chinese mainland abroad.
4. Domestic social laboratories and certification institutions of electrical products;
5. Inspection Department of foreign professional electrical appliance manufacturers;
6. Quality inspection department and production process quality control department of domestic professional electrical appliance manufacturers

Selection of materials and technology:

1. The resistor has the characteristics of high precision and high power, high voltage and low temperature drift resistor
2. The capacitor with long-term stable and reliable capacitance, high voltage resistance, non inductive, current shock resistance, microwave absorption performance and very small leakage current is adopted
3. The module steam injection adopts packaging solids with high pressure resistance, good high frequency characteristics and low dielectric loss. After pouring in the module, it has large heat capacity and enhances the ability to resist short-term impact current
4. In order to ensure the effective measurement of various components, the surface connection method is adopted, which can be disconnected from each other for the measurement of components; The surface shall be provided with effective component identification and wiring identification

Products Introduction:

This test network conforms to the measuring network requirements of IEC60990 touch current and the measurement method of protective conductor current, (figure 5-mesuring network, touch current weighted for let-go. This network is convenient to use and easy to operate, and the power supply switch is made separately, which can solve the shortcomings of power supply capacity of the previous machine and can test the more powerful products.

Parameter:

Name	Value
R_S	1500Ω
R_B	500Ω
C_S	0.22μF
R₂	10000Ω
R₃	20000Ω
C₂	0.0062μF
C₃	0.0091μF

Preparation:

Before testing, you need to prepare instruments as follow:
Oscilloscope x1

One or ten times the voltage probe x1
Power supply x1 (the test voltage or frequency that can be adjusted or changed to the required voltage or frequency)

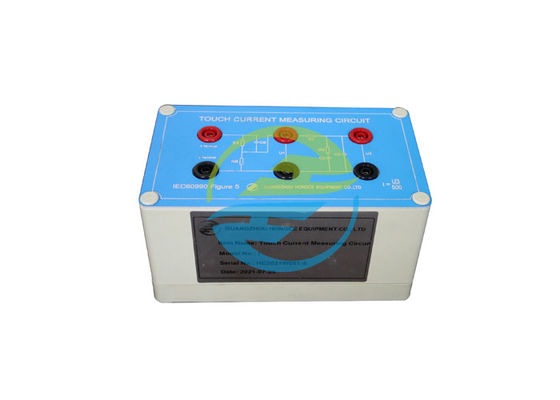

IEC60990 Figure 5 Touch Current Measuring Network Convenient To Use 0

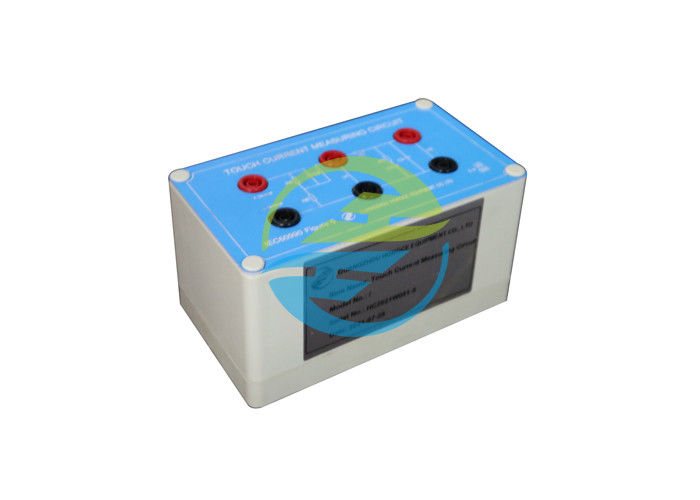

IEC60990 Figure 5 Touch Current Measuring Network Convenient To Use 1
