IEC60990 Figure 4 Touch Current Measuring Network Convenient

Brand Name:	HongCe
Model Number:	CT-4
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate(cost additional)

Product Name:

Touch Current Measuring Circuit

Warranty:

1 Year

Standard:

IEC60990

RS:

1500Ω

RB:

500Ω

CS:

0.22μF

R1:

10000Ω

C1:

0.022μF

Packaging Details:

Aluminum Box

Highlight:

IEC 60990 Touch Current Measuring Circuit

Figure 4 Touch Current Measuring Circuit

0.022μF Touch Current Measuring Circuit

Product Description

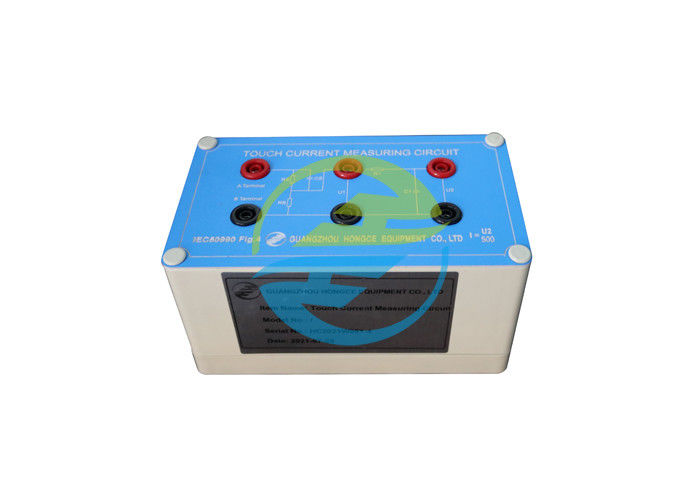

IEC60990 Figure 4 Touch Current Measuring Network, Convenient to Use

Products Introduction:

This test network conforms to the measuring network requirements of IEC60990 touch current and the measurement method of protective conductor current, (figure 4-mesuring network touch current weighted (sensory current or reaction current). This network is convenient to use and easy to operate, and the power supply switch is made separately, which can solve the shortcomings of power supply capacity of the previous machine and can test the more powerful products.

Parameter:

Name	Value
R_S	1500Ω
R_B	500Ω
C_S	0.22μF
R₁	10000Ω
C₁	0.022μF

Preparation:

Before testing, you need to prepare instruments as follow:
Oscilloscope x1

One or ten times the voltage probe x1
Power supply x1 (the test voltage or frequency that can be adjusted or changed to the required voltage or frequency)

IEC60990 Figure 4 Touch Current Measuring Network Convenient 0

IEC60990 Figure 4 Touch Current Measuring Network Convenient 1
